Cabin Temperature Sensor / Switch: Service and Repair

REMOVAL

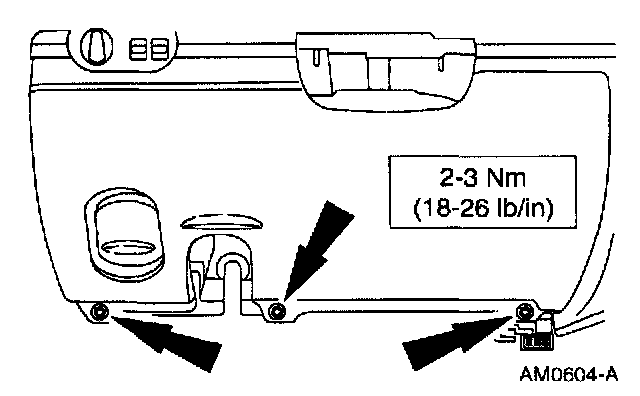

1. Remove the screws and lower the instrument panel steering column cover.

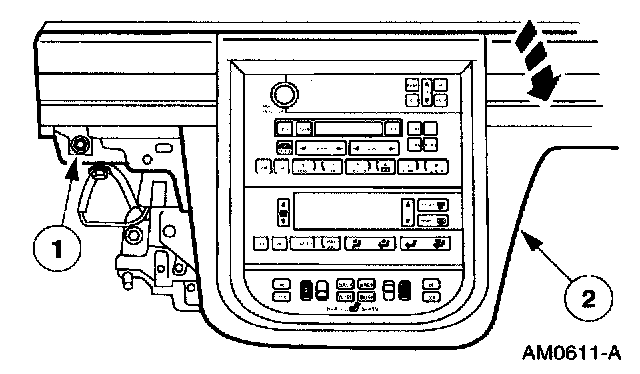

2. Reposition the instrument panel finish panel.
1 Remove the screw.
2 Disengage the clips and reposition the instrument panel finish panel away from the instrument panel.

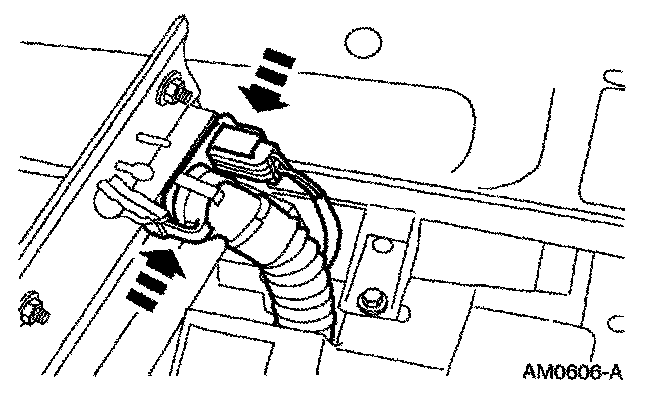

3. Push in on the retaining tabs and remove the in-car temperature sensor from the instrument panel finish panel.

INSTALLATION
1. To install, reverse the removal procedure.
