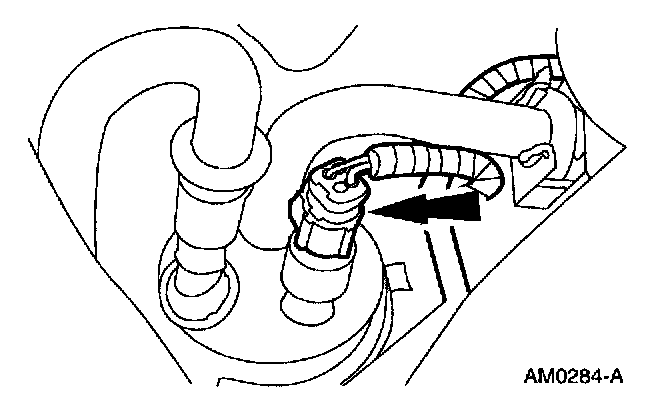

A/C Pressure Switch

REMOVAL







1. Remove the screws and reposition the power steering fluid reservoir.







2. Disconnect the electrical connector.







3. Remove the A/C cycling switch.

INSTALLATION







1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG compressor oil, YN-12c, F7AZ-19589-DA or equivalent meting Ford specification WSH-M1C231-B.
