Brake Caliper Support Bracket

Removal
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

3. CAUTION: Do not allow the caliper to hang from the brake hose

Remove brake pads.

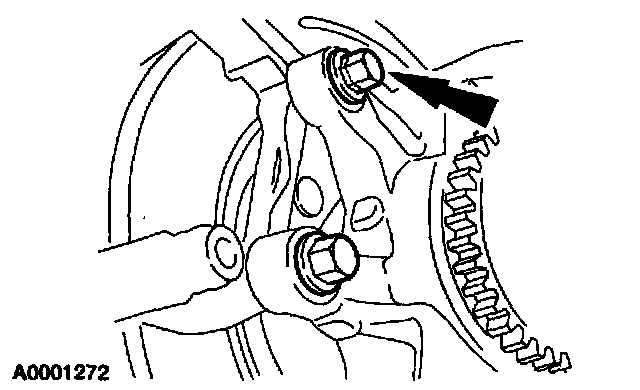

4. Remove the support bracket bolts.

Installation

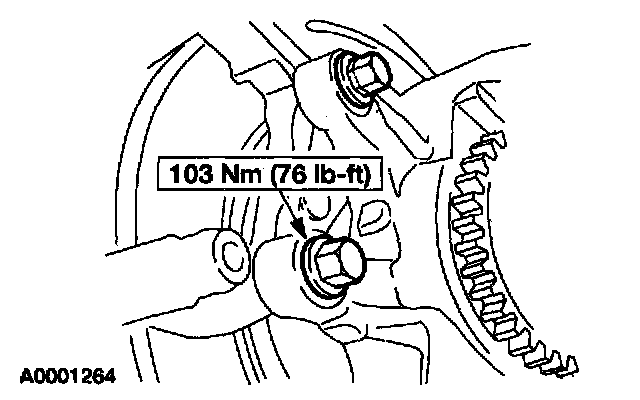

1. To install, reverse the removal procedure.
