Disassembly and Assembly

DISASSEMBLY
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair






2. Remove the screw and remove the bracket.







3. Disconnect the vacuum hose.







4. Disengage the in-car temperature sensor hose retainers.

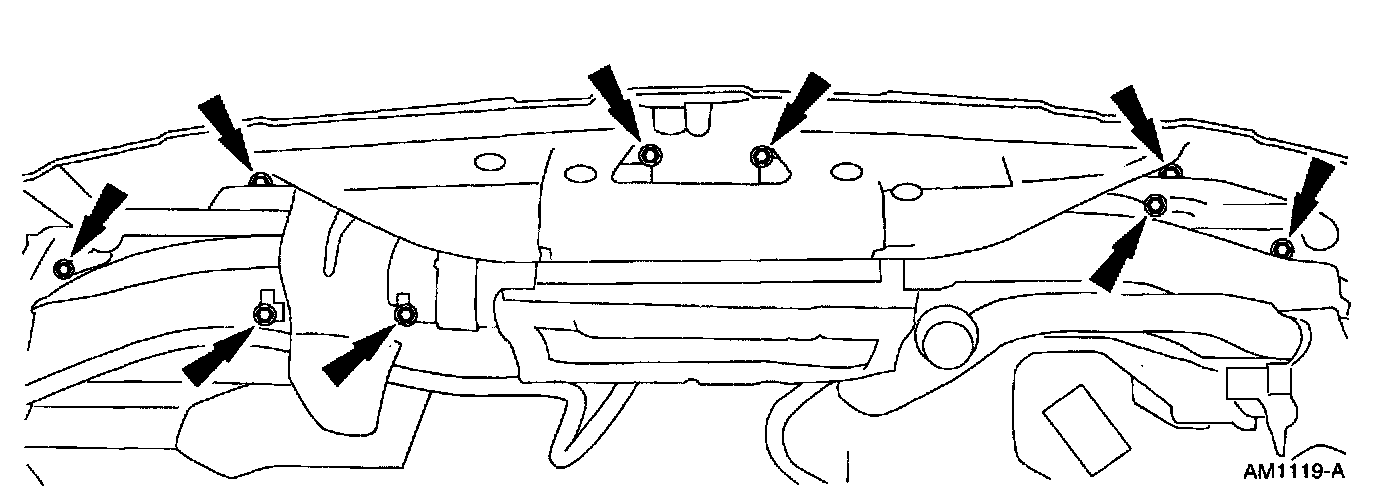

5. Remove the screws and remove the ducts.







6. Remove the two screws.







7. Rotate the vacuum control motor, disengage the lever and remove the vacuum control motor.


CAUTION: Do not attempt to bend any part of the lever. It is brittle and will break.







8. Remove the screws and the RH demister nozzle.







9. Remove the screws and the LH demister nozzle.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
