Module

REMOVAL

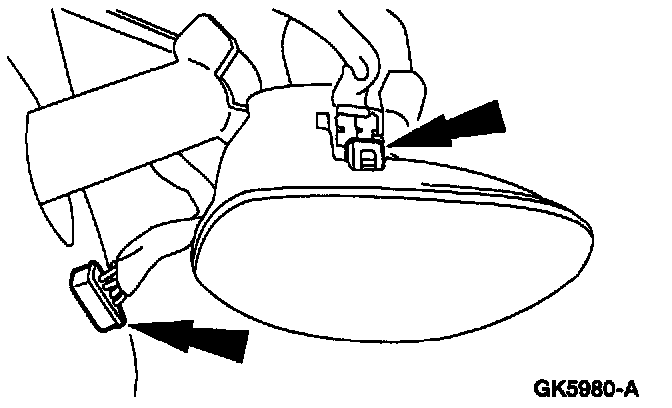

1. Disconnect the compass sensor module electrical connectors.

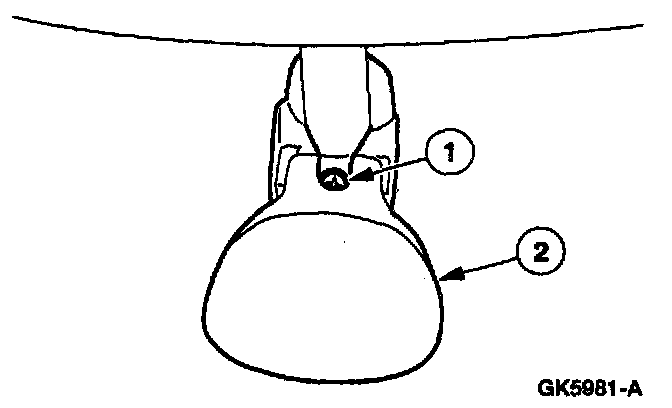

2. Remove the compass sensor module.
1 Remove the screw.
2 Remove the compass sensor module.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When installing the compass sensor module, check the compass zone adjustment and calibrate the compass. Refer to Compass Zone Adjustment and Calibration Adjustment. Adjustments
