EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EGR ELECTRONIC VACUUM REGULATOR SOLENOID

REMOVAL

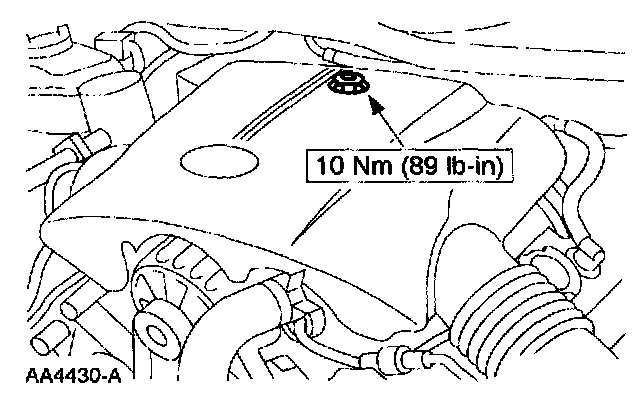

1. Remove the appearance cover.

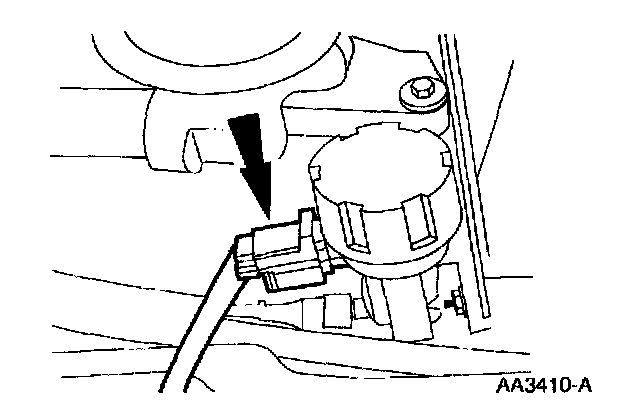

2. Disconnect the connector.

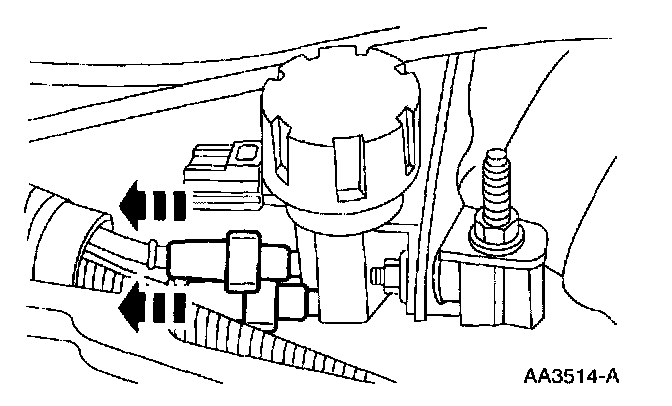

3. Remove the vacuum hoses.

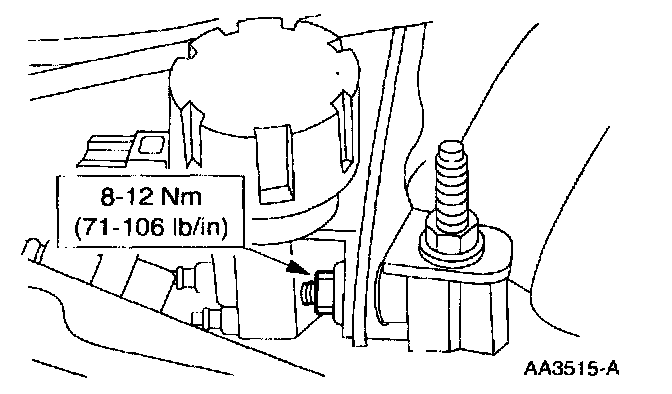

4. Remove the two nuts and the Exhaust Gas Recirculation (EGR) vacuum regulator solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
