Steering Column Sensor Ring

Removal

CAUTION: The steering column must be in the locked position, or the lower end of the column wired in such a way that the steering column does not rotate, resulting in damage to the air bag sliding contact.

Note: Discard the upper intermediate shaft to steering column shaft bolt upon removal. Do not reuse; replace with new bolt.

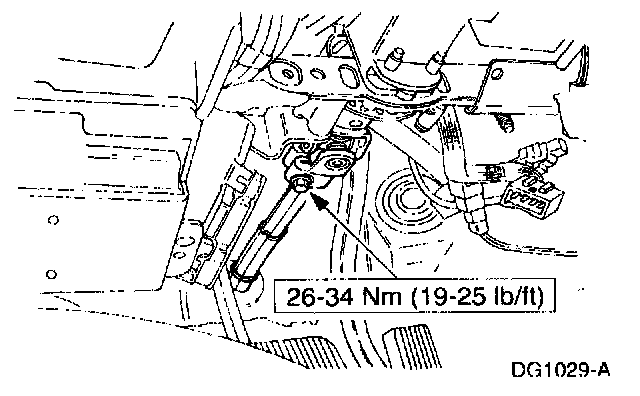

1. Remove and discard the pinch bolt. Disconnect the lower steering column shaft from the steering column shaft.





2. Remove the shock absorber electronic steering sensor.
1. Disconnect the electrical connector.

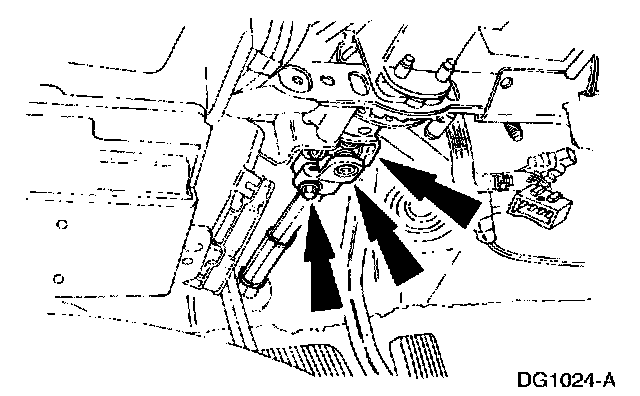

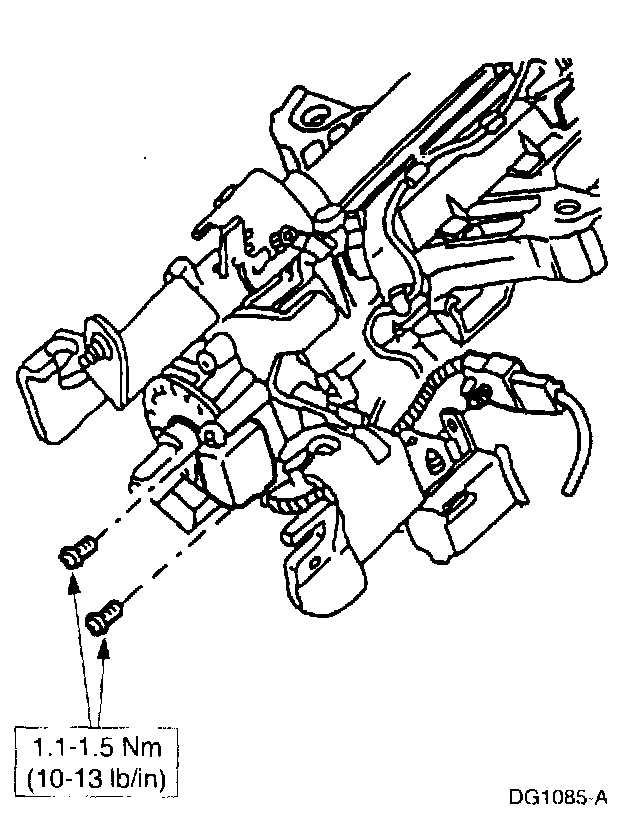

2. Remove the screws.
3. Remove the shock absorber electronic steering sensor.





3. Remove the suspension height sensor control ring.

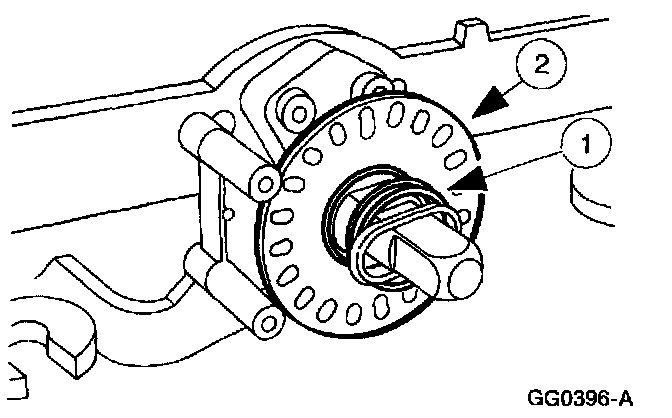

1. Remove the steering column bearing spring.
2. Remove the suspension height sensor control ring.

Installation








1. Follow the removal procedure in reverse order.
