Rear Door Window Motor: Service and Repair

REMOVAL
1. Remove the door trim panel.






2. Disconnect the connector.

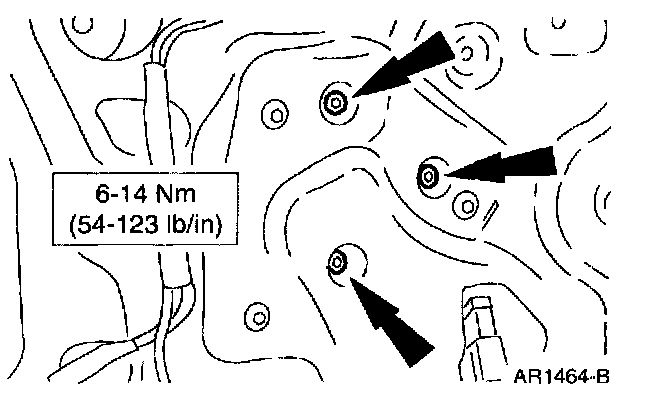

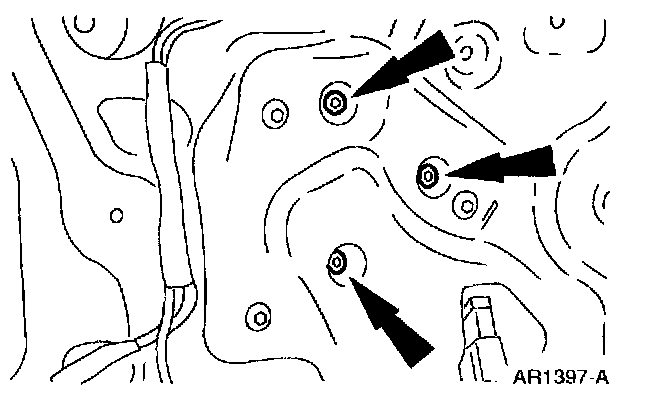

3. Remove the TORX(R) screws and the window regulator motor.

INSTALLATION







1. Follow the removal procedure in reverse order.
