Oil Pan, Engine

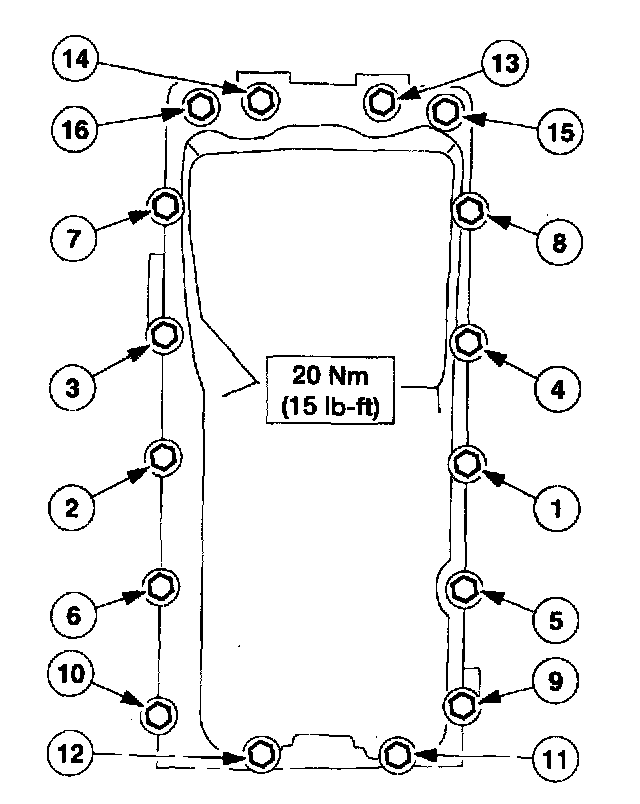

Install and tighten the bolts in two stages.
^ Stage 1: Tighten the bolts in sequence to 20 Nm (15 ft. lbs.).
^ Stage 2: Tighten the bolts in sequence an additional 60 degrees.
