Instrument Panel, Gauges and Warning Indicators: Locations

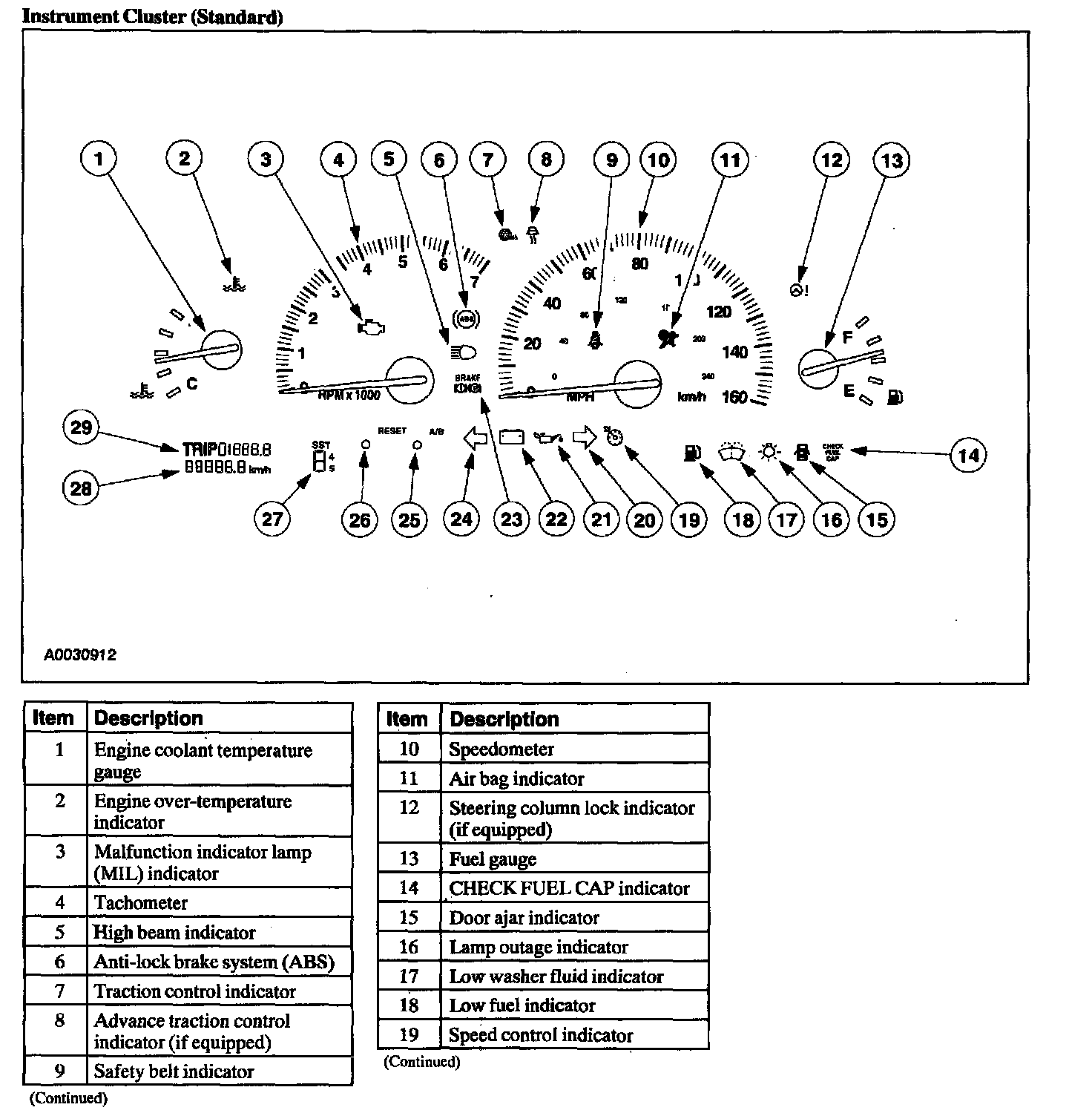

Instrument Cluster (Standard), Part 1:

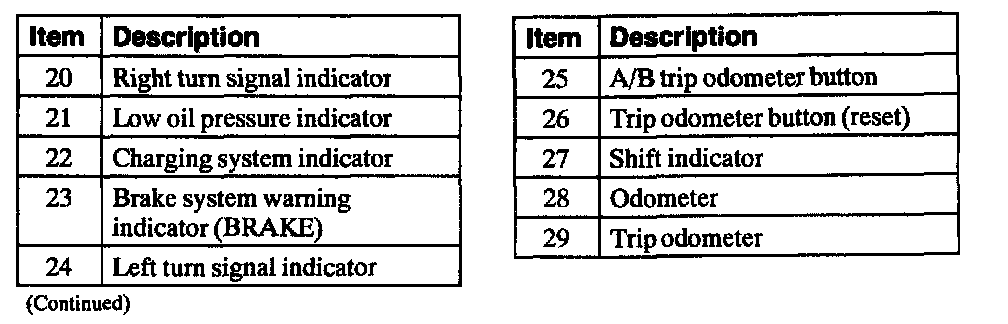

Instrument Cluster (Standard), Part 2:

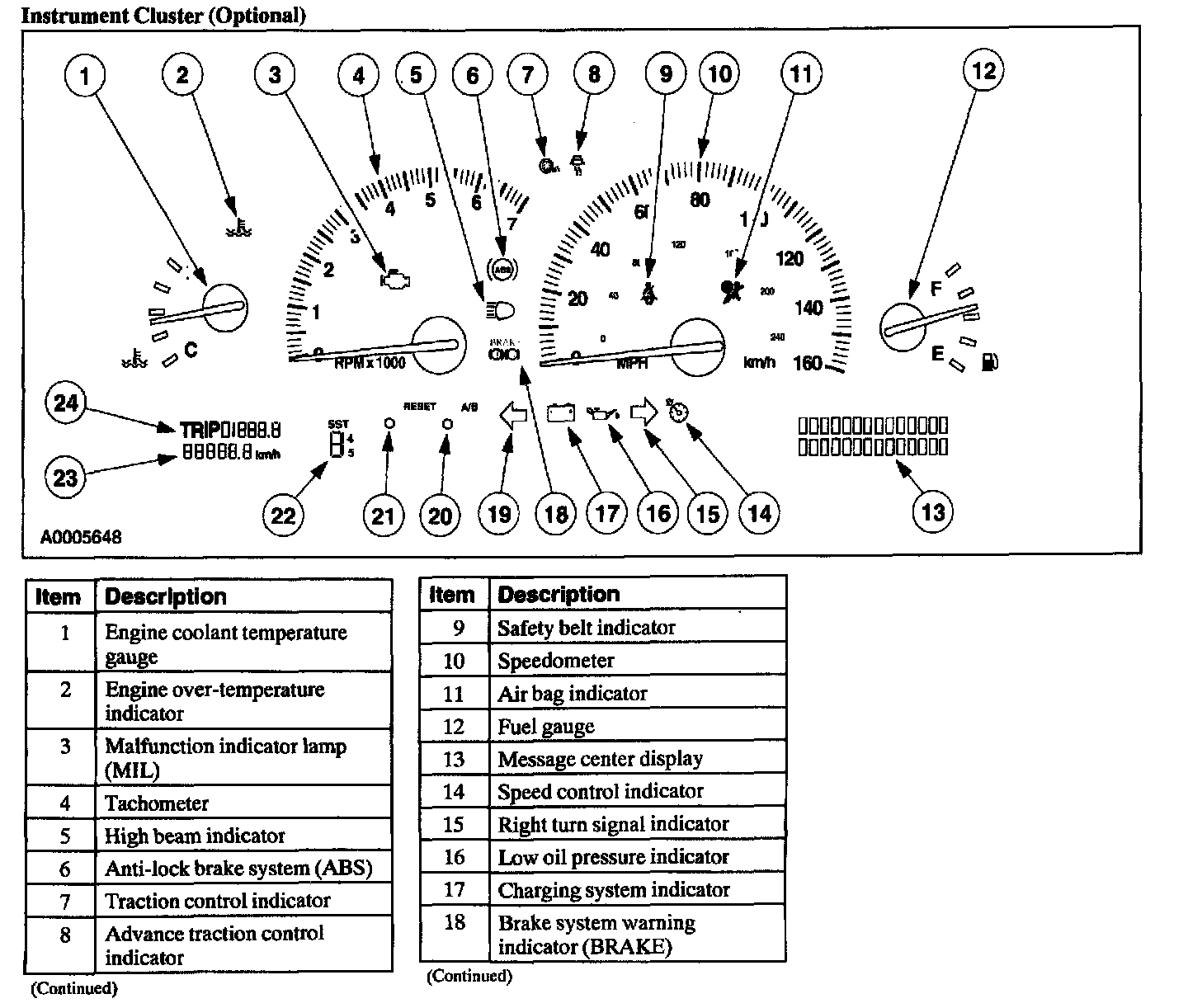

Instrument Cluster (Optional), Part 1:






Instrument Cluster (Optional), Part 2:
