Child Seat Tether Attachment: Service and Repair

REMOVAL
1. Remove the package tray trim panel.

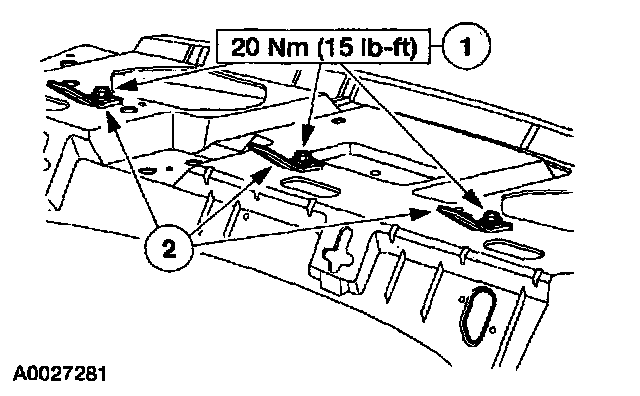

2. Remove the child safety seat tether anchors.
1 Remove the bolts.
2 Remove the child safety seat tether anchors.

INSTALLATION
1. To install, reverse the removal procedure.
^ See the removal procedure or Specifications for torque specifications.


WARNING: IT IS IMPORTANT THAT THE BOLT/ANCHOR BE SECURELY TIGHTENED TO SPECIFICATION. OTHERWISE, THE CHILD'S SAFETY SEAT MAY NOT BE PROPERLY SECURED, AND THE CHILD COULD BE INJURED IN CASE OF A SUDDEN STOP OR ACCIDENT.

NOTE:
^ Rework the sheet metal to its original condition and structural integrity.
^ Make sure to tighten the bolts to specifications.

2. Check the active restraint system for correct operation.
