Steering Column Lock Actuator

Removal
1. Remove the steering column.

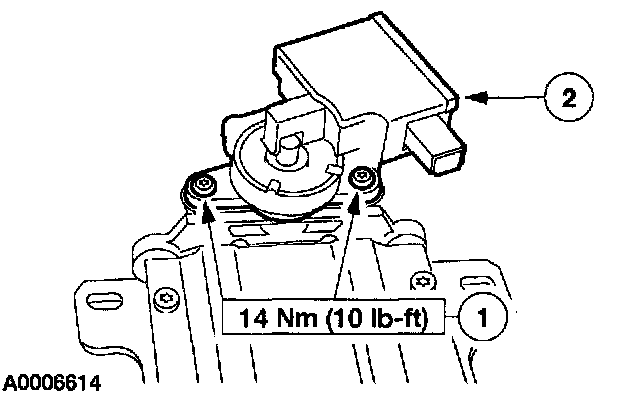

2. Remove the steering column lock actuator.
1 Remove the screws.
2 Remove the steering column lock actuator.

Installation
1. To install, reverse the removal procedure.
^ After the installation is complete, carry out the steering column lock module parameter reset.
