Test D: Brake Shift Interlock Inoperative

PINPOINT TEST D: BRAKE SHIFT INTERLOCK INOPERATIVE

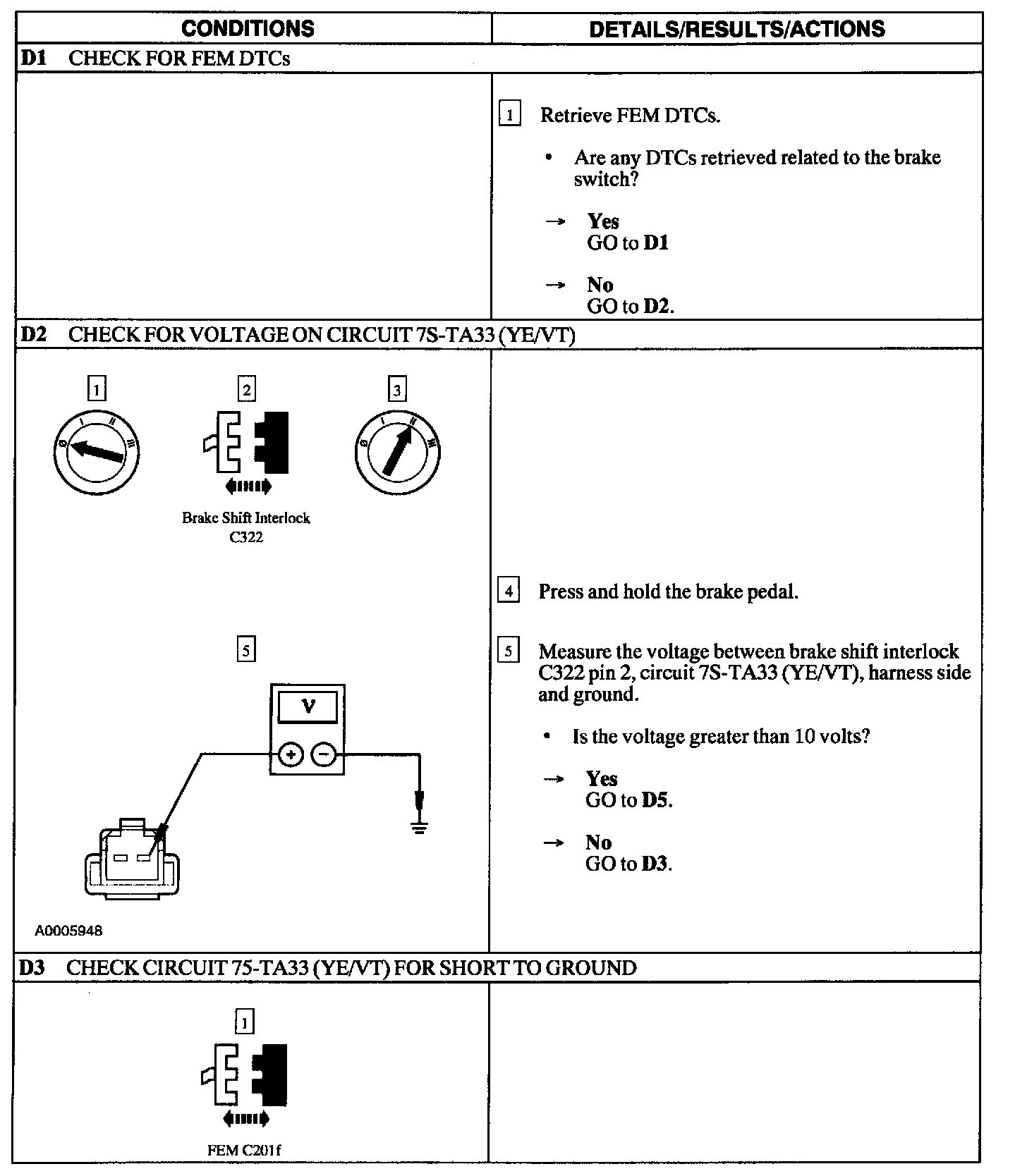

Test D1-D3

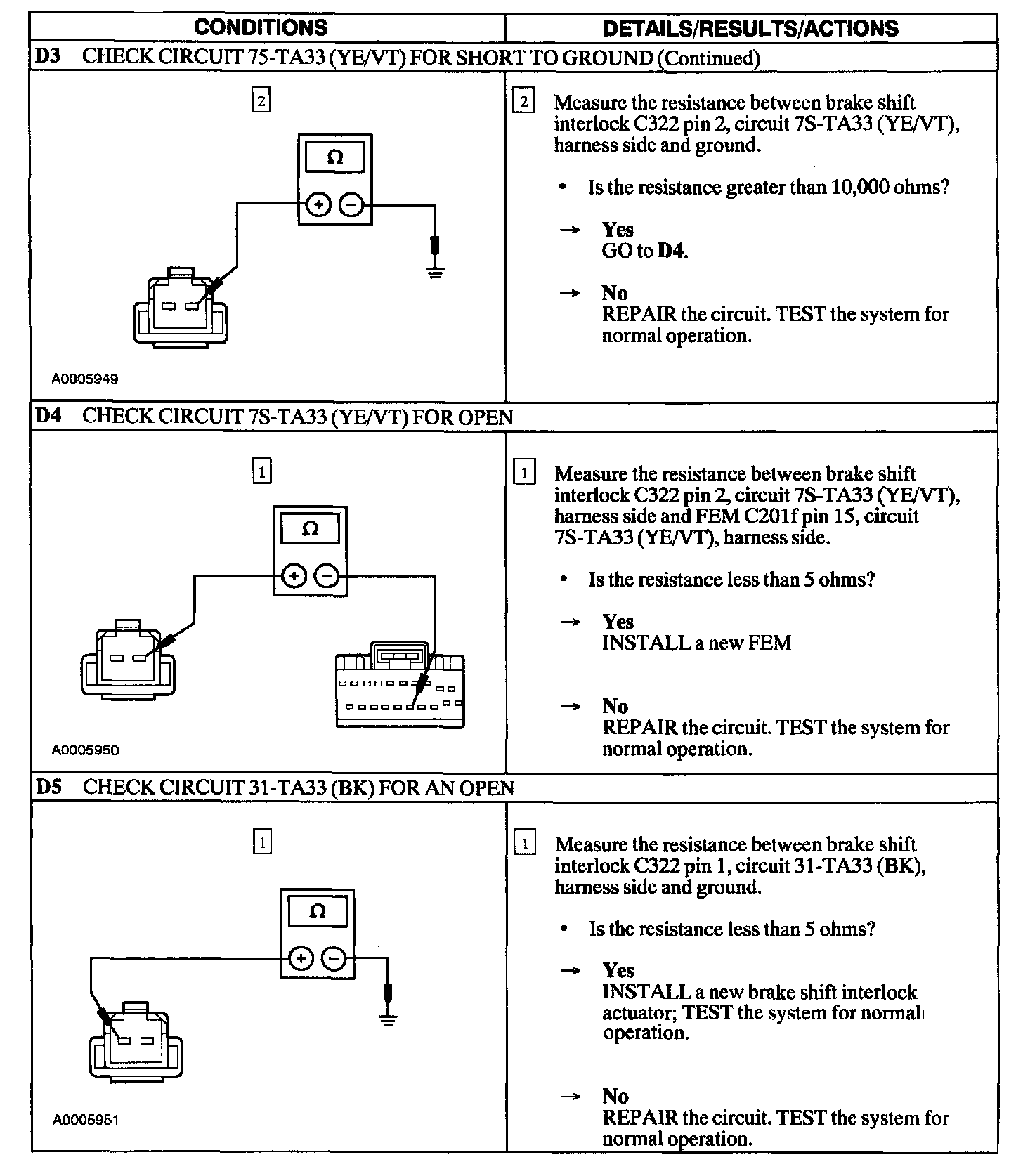

Test D3-D5
