Transmission and Drivetrain: Description and Operation

Driveline System

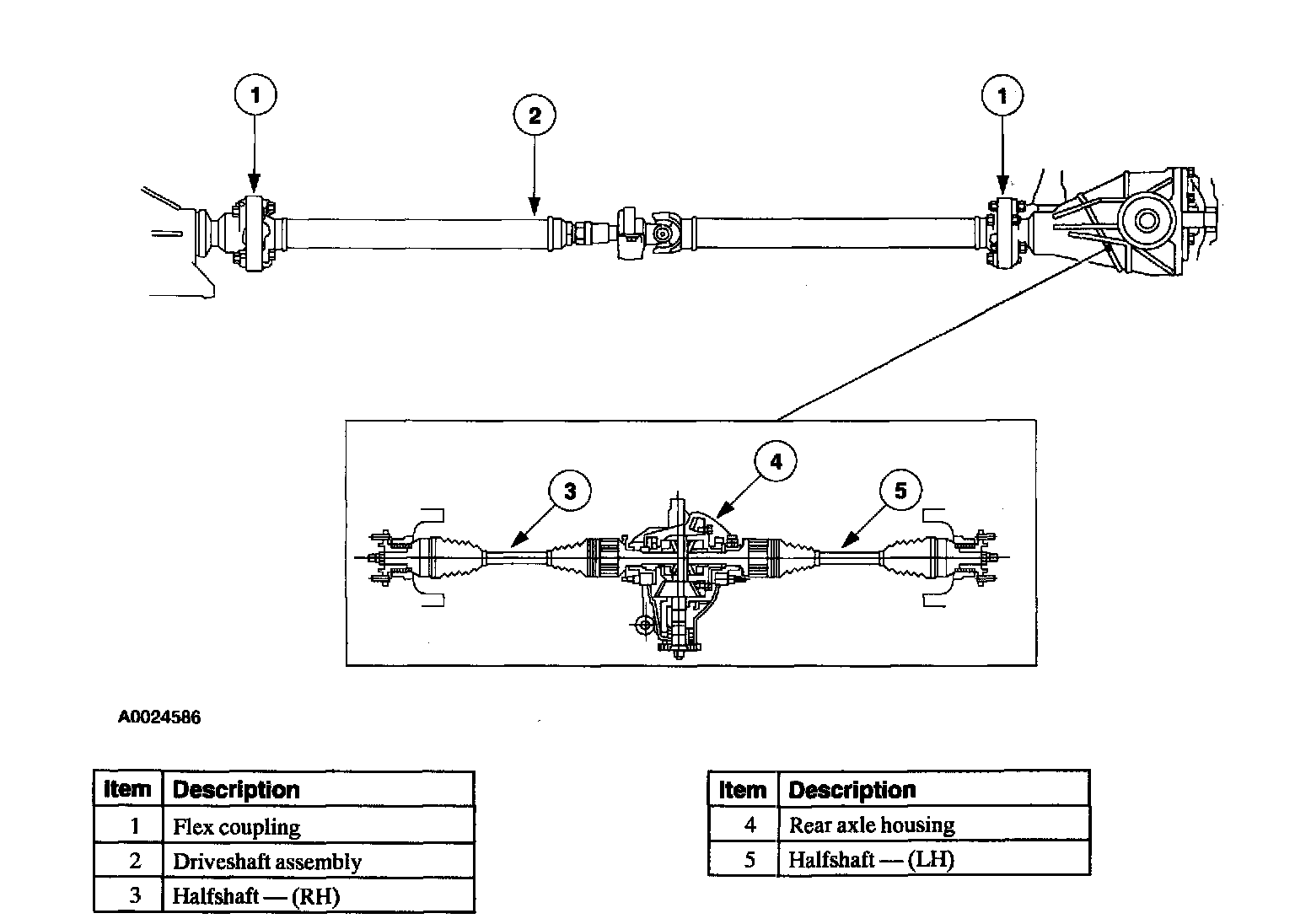

Driveline Component Locations

The driveline transfers engine torque to the drive wheels. Power is transmitted through the transmission to the driveshaft and then to the axle which is connected to the halfshafts.
