Test B: No Communication With The Lighting Control Module

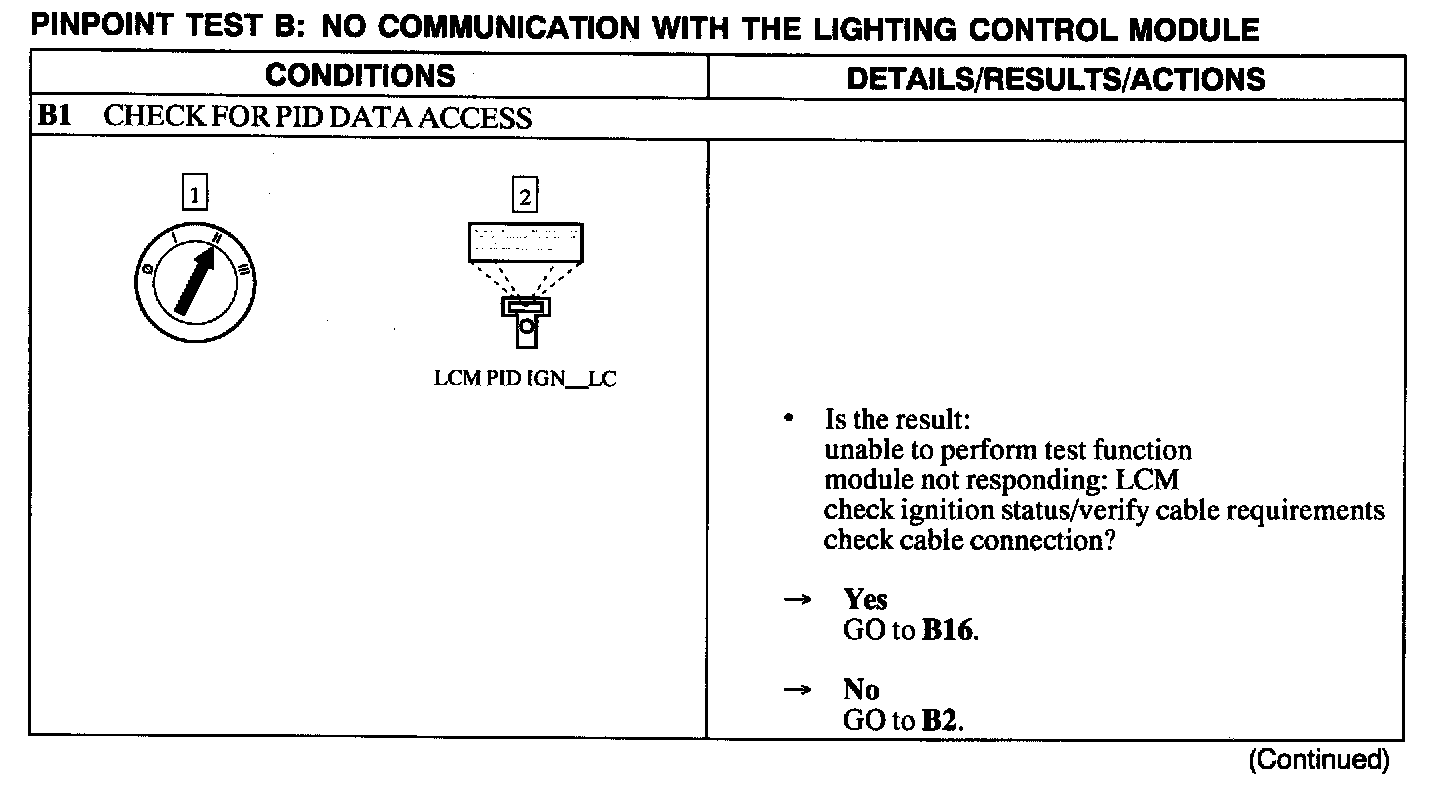

B1:

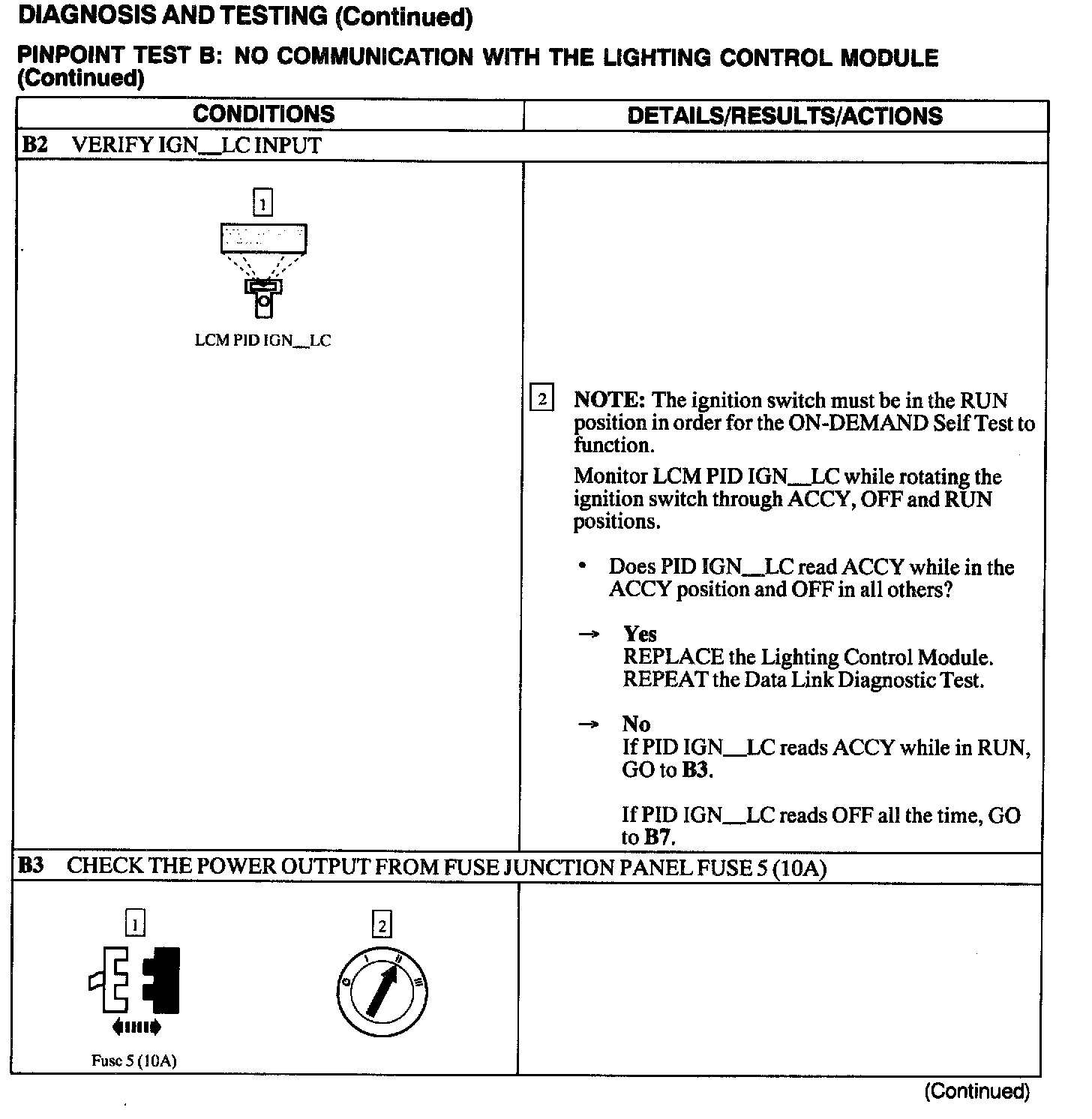

B2 - B3:

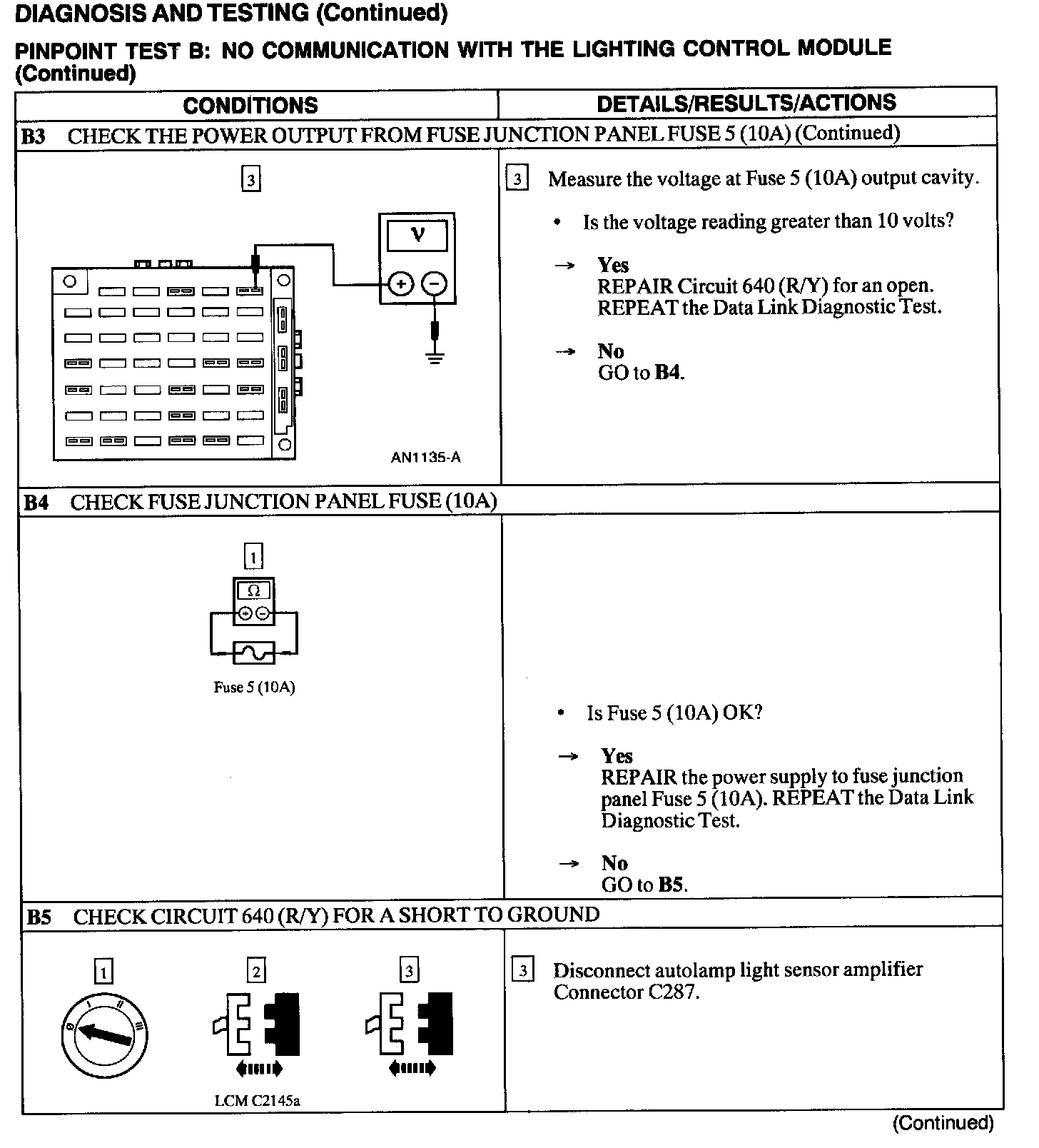

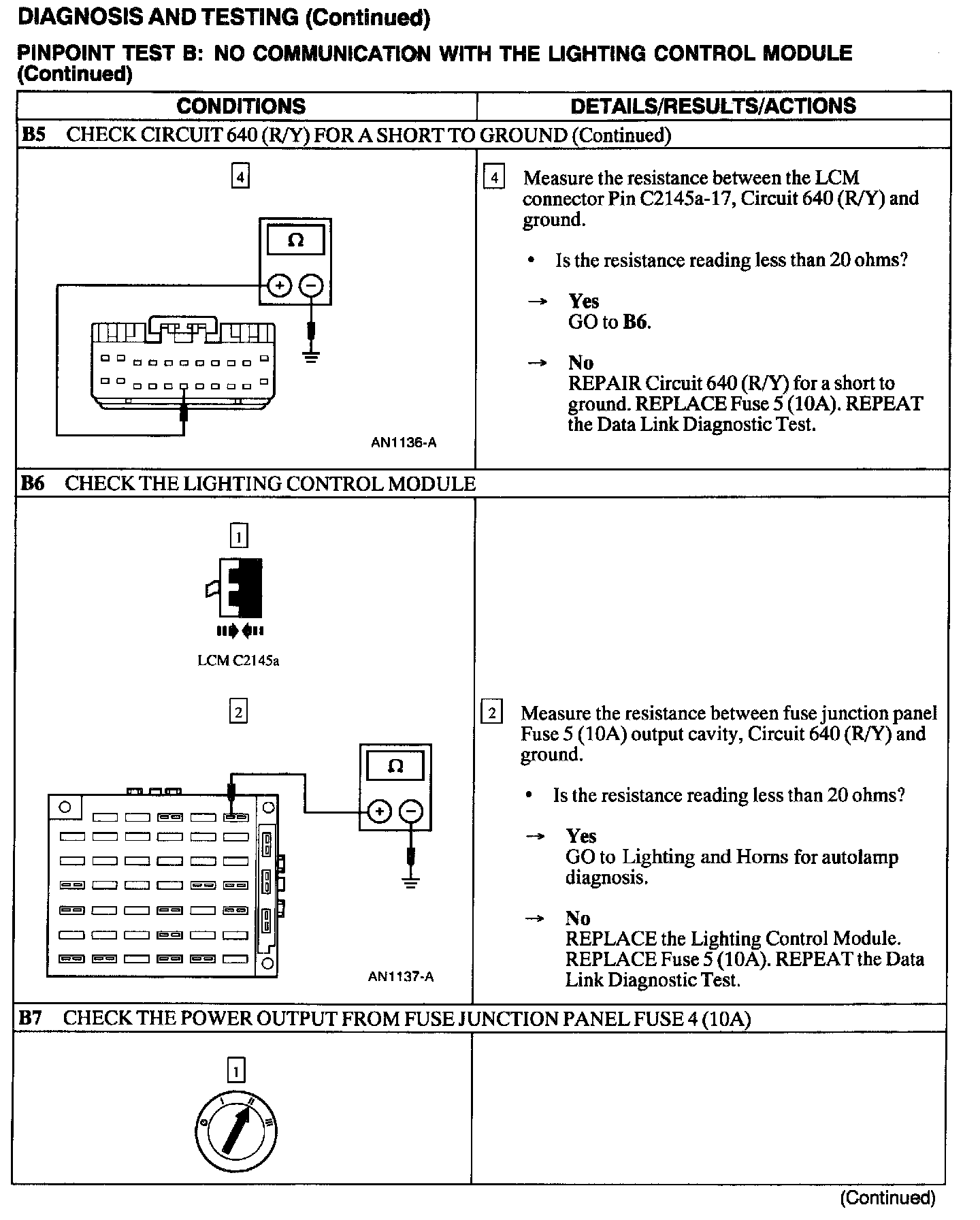

B3 - B5:






B5 - B7:

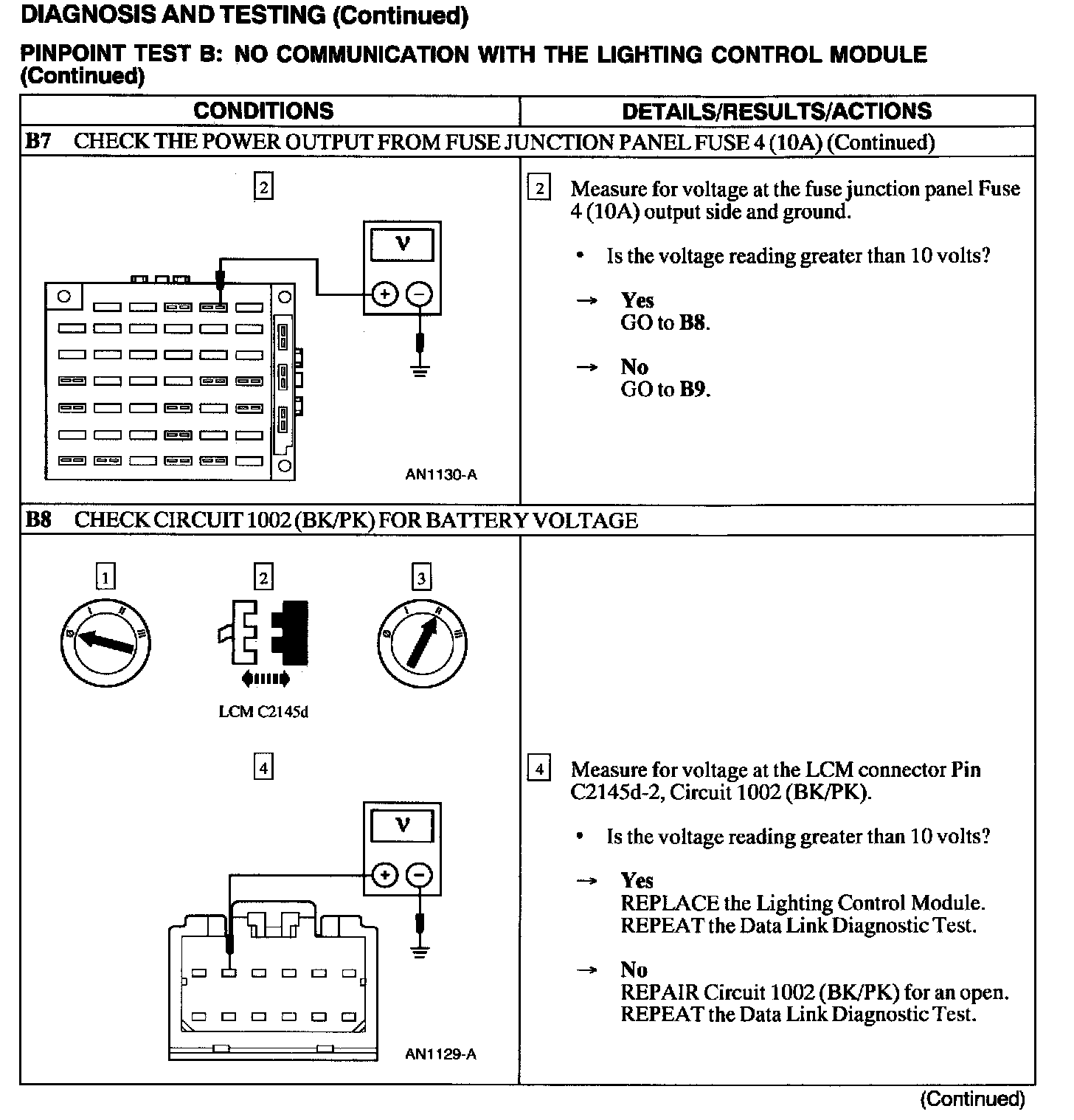

B7 - B8:

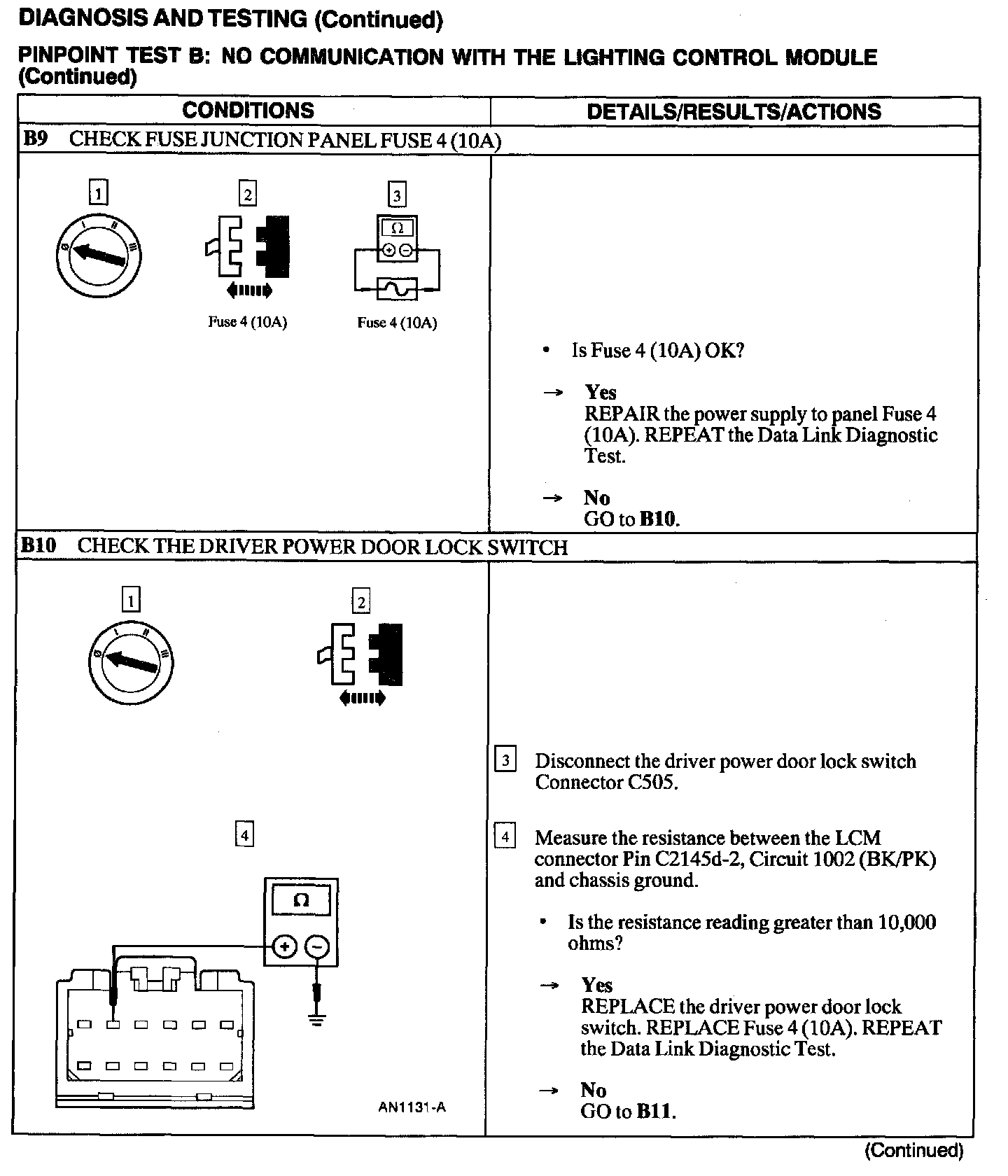

B9 - B10:

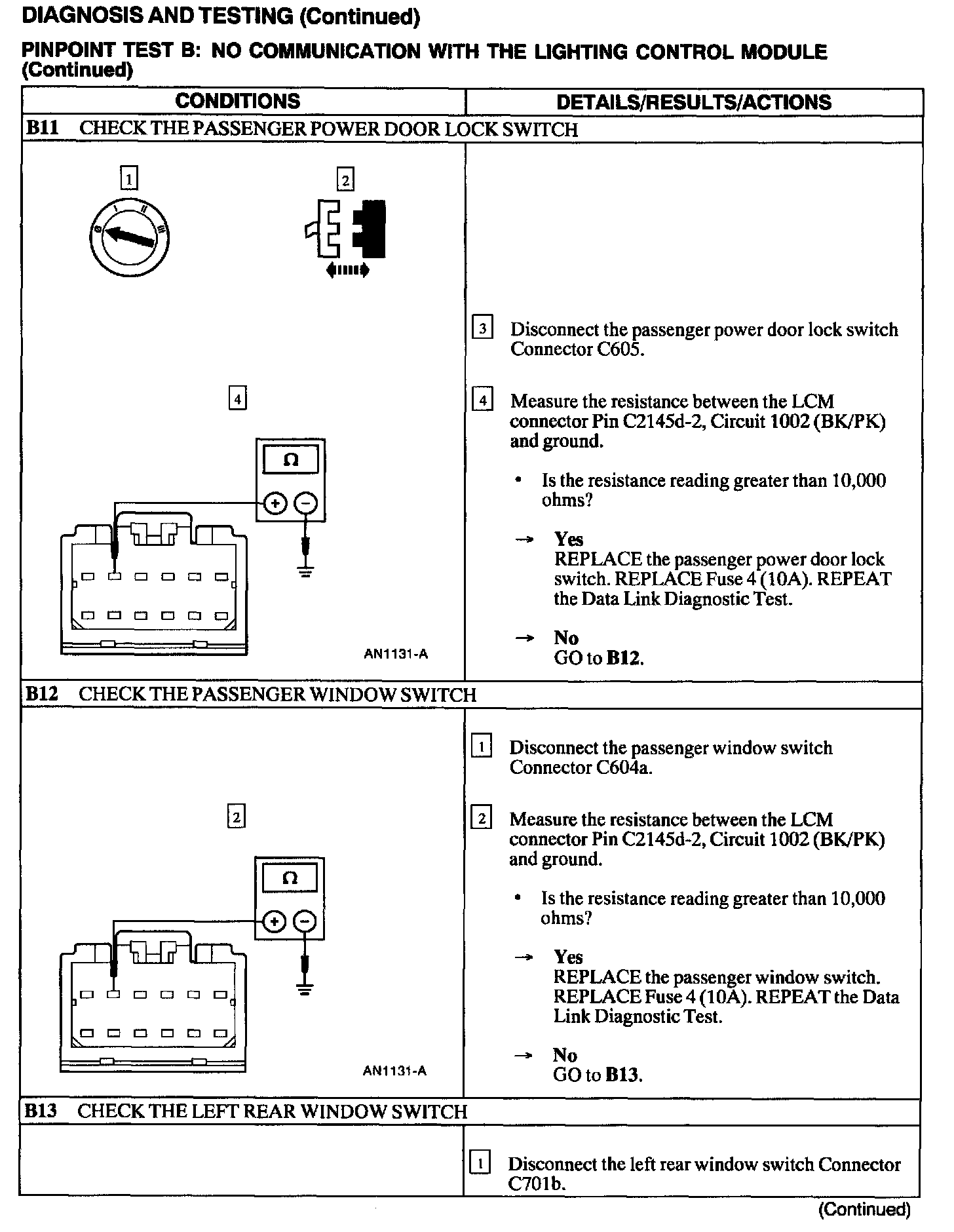

B11 - B13:

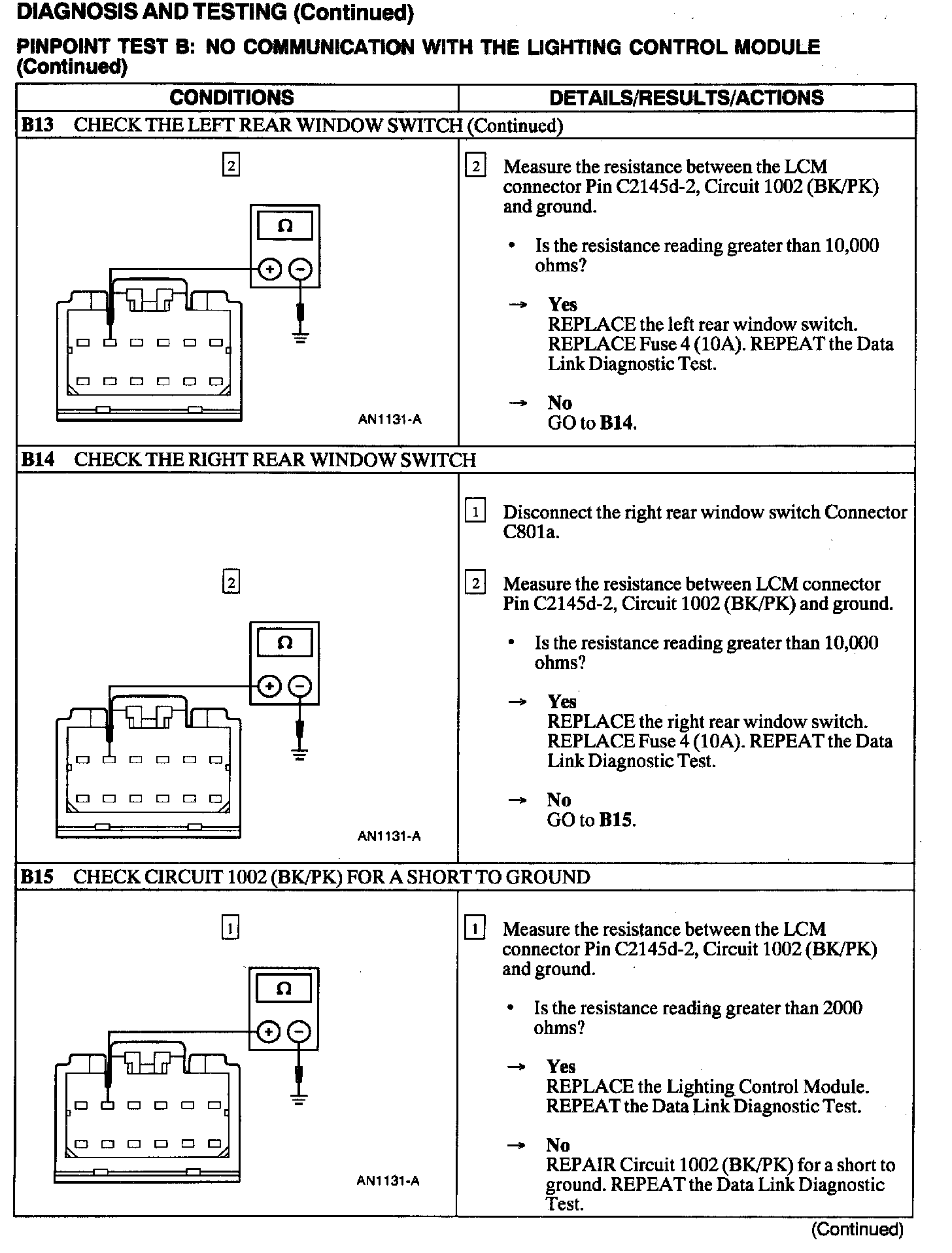

B13 - B15:

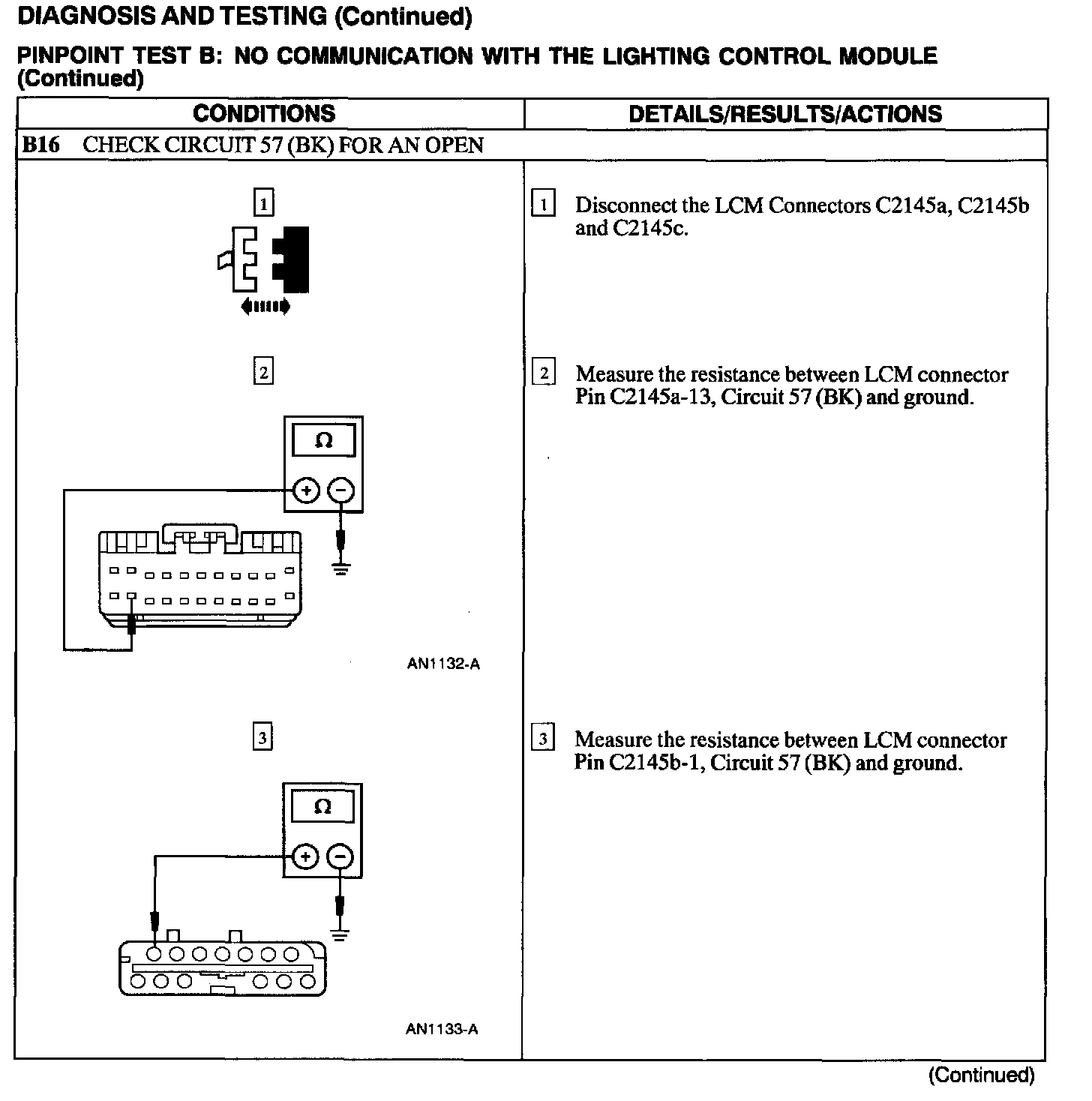

B16:

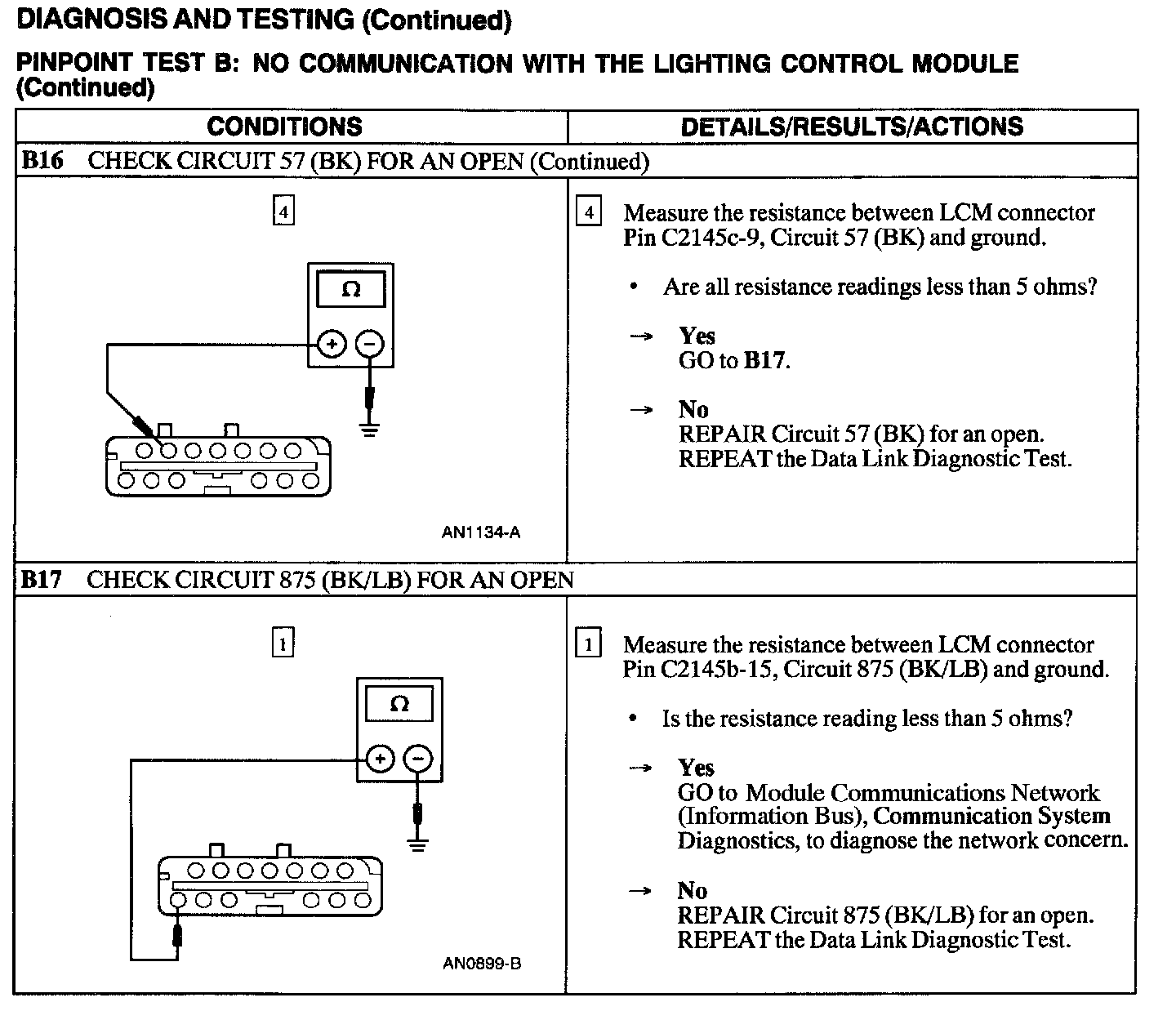

B16 - B17:
