Brake Disc

Brake Disc

Removal and Installation
1. Remove the support bracket.





2. NOTE: Remove and discard the push nuts, if so equipped. Mark the brake disc and a wheel stud.

^ This ensures that the lowest brake disc runout is maintained during installation.

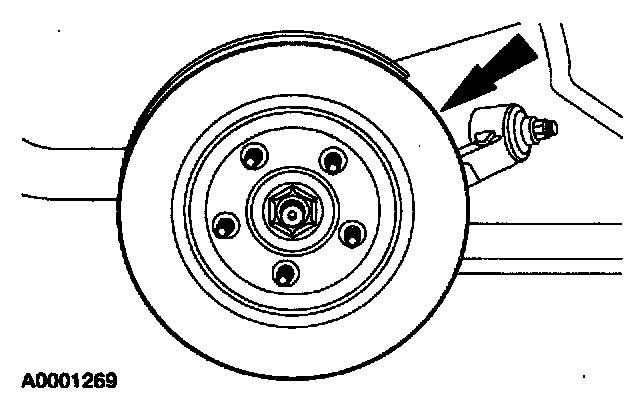

Remove the brake disc.
3. To install, reverse the removal procedure.
