Home >> Lincoln >> 2002 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Relays and Modules - Emission Control Systems >> Air Injection Pump Relay >> Locations

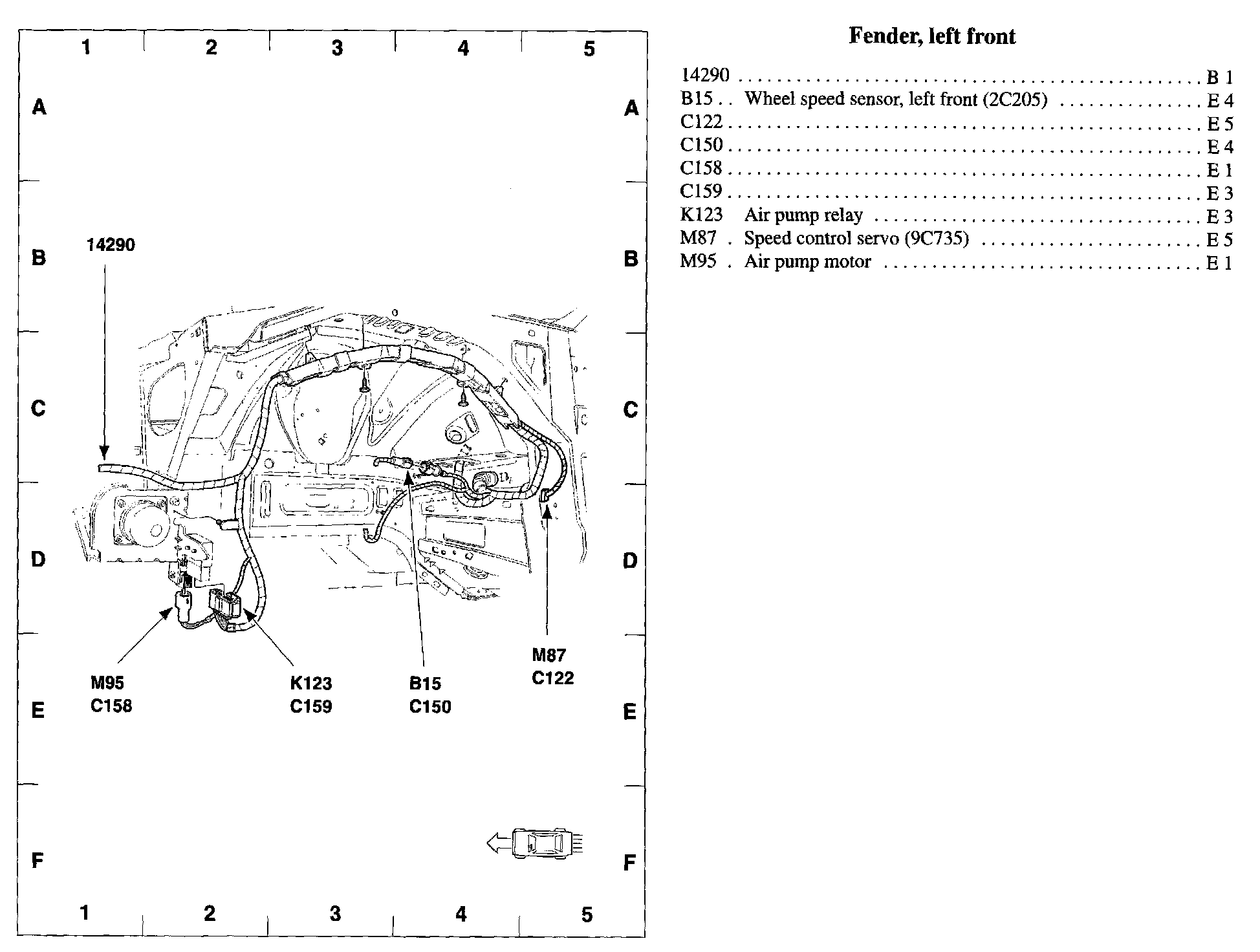

Air Injection Pump Relay: Locations

View 151-4:
