Interior Rear View Mirror

REMOVAL

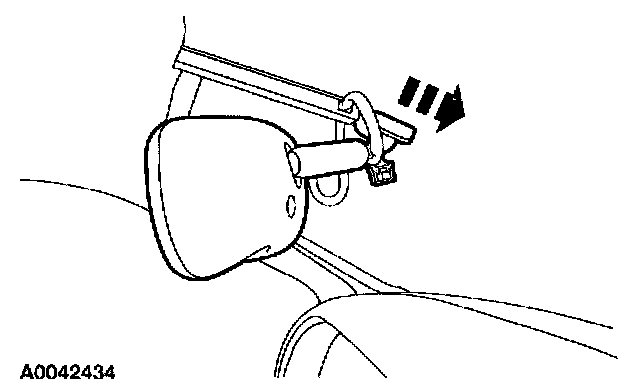

1. Disconnect the electrical connectors and remove the compass module.

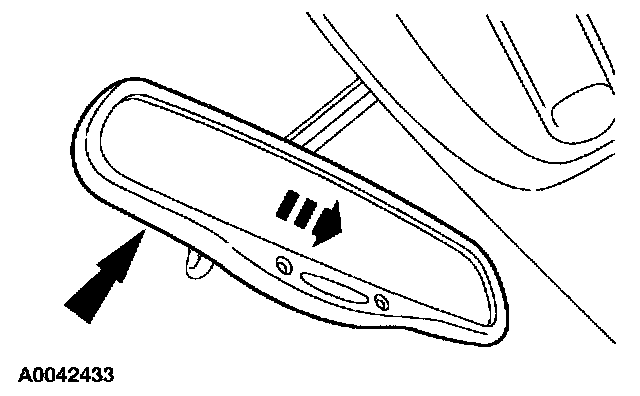

2. Support the mirror with one hand against the windshield and pull towards the passenger side with the other hand.

INSTALLATION

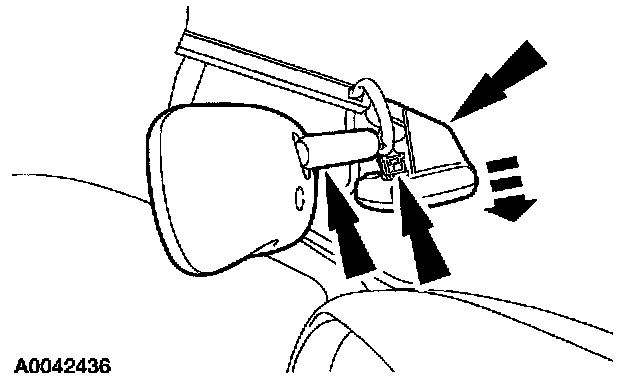

1. Push the mirror down on the clip until an audible click is heard and the mirror snaps into place.







2. Install the compass module and connect the electrical connectors.
