Heater Hose: Service and Repair

REMOVAL
1. Drain the radiator.







2. Remove the screws and the RH cowl vent screen.







3. Disconnect the vacuum hoses and the wire harness connector from the evaporative emissions canister purge valve.

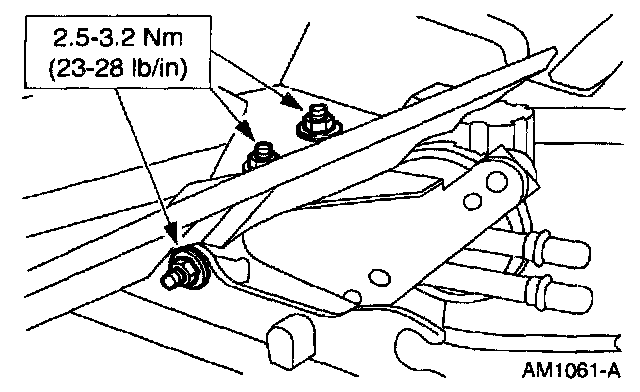

4. Remove the nuts and remove the evaporative emissions purge valve.







5. Remove the heater hoses from the heater core.







6. Remove the heater hoses from the engine.

INSTALLATION







1. To install, reverse the removal procedure.
- Lubricate the coolant hoses with MERPOL(R) meeting Ford specification ESE-M99B144-B or plain water only, if needed.
