Coolant Line/Hose: Service and Repair

Coolant Inlet Pipe-3.0L (4V)

1. Remove the LH cylinder head.

Part 1 Of 2:

Part 2 Of 2:

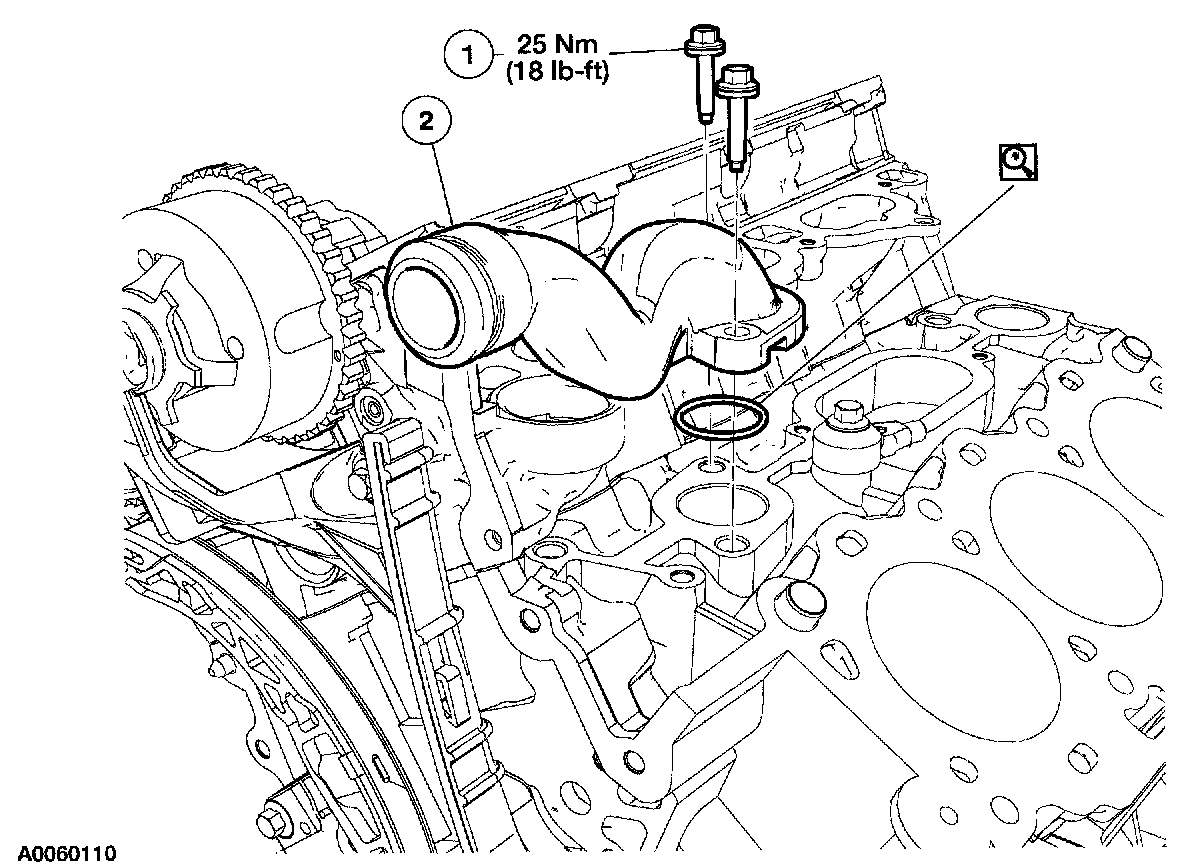

2. Remove the components in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
4. Fill and bleed the cooling system.
