Flex Plate: Service and Repair

Flexplate or Flywheel and Crankshaft Rear Seal

Part 1 Of 2:

Part 2 Of 2:

Special Tool(s)

Removal and Installation
1. Remove the transmission.

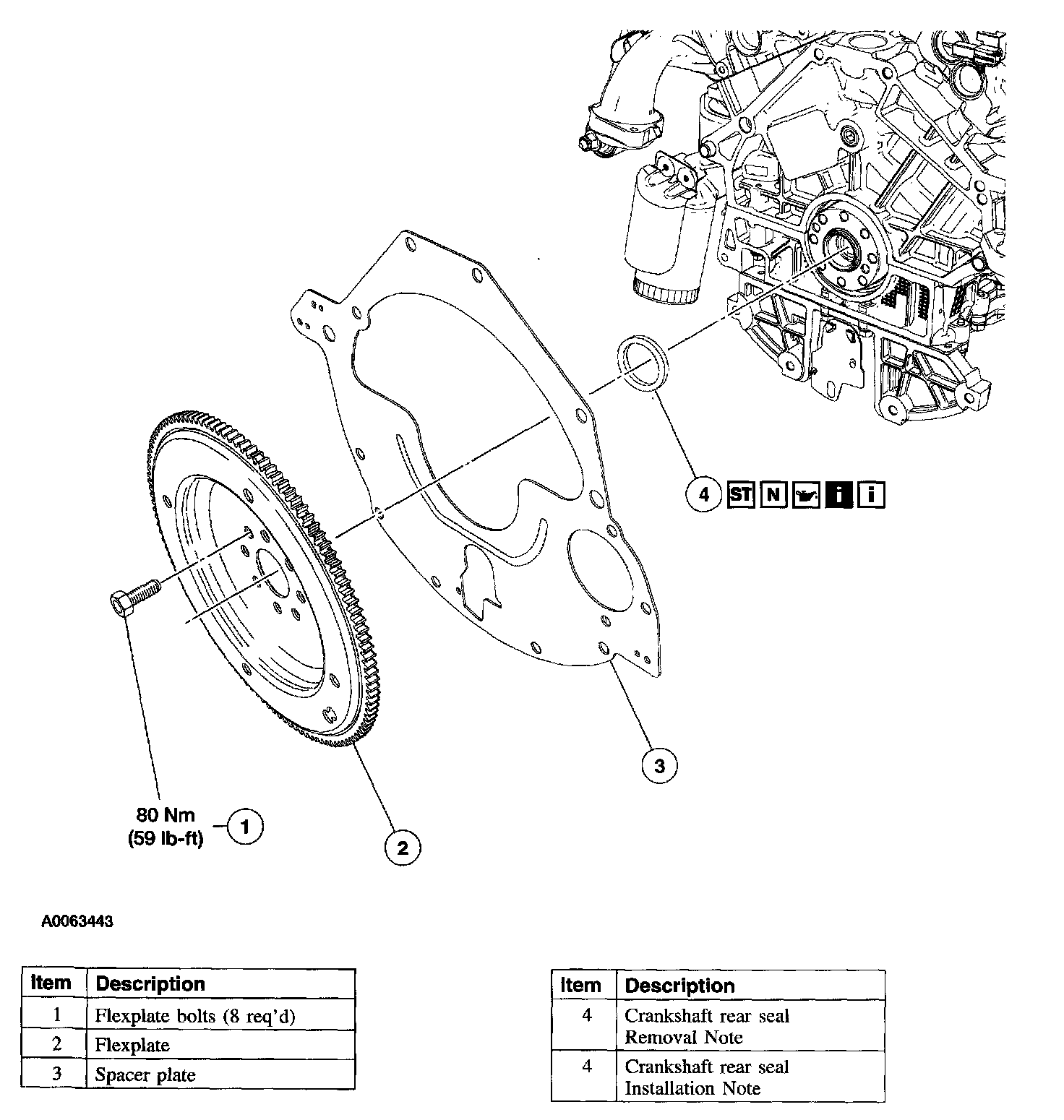

2. Remove the components in the order indicated in the illustration and table. To remove individual components, carry out only the listed steps.





3. To install, reverse the removal procedure.

Item 4: Crankshaft Rear Seal Removal Note





1. Using the special tools, remove the crankshaft rear seal.

Item 4: Crankshaft Rear Seal Installation Note
1. Lubricate the outer lips and the inner seal on the crankshaft rear seal with clean engine oil.





2. Using the special tools, install the crankshaft rear oil seal.
