Driver/Vehicle Information Display: Service and Repair

MESSAGE CENTER

REMOVAL

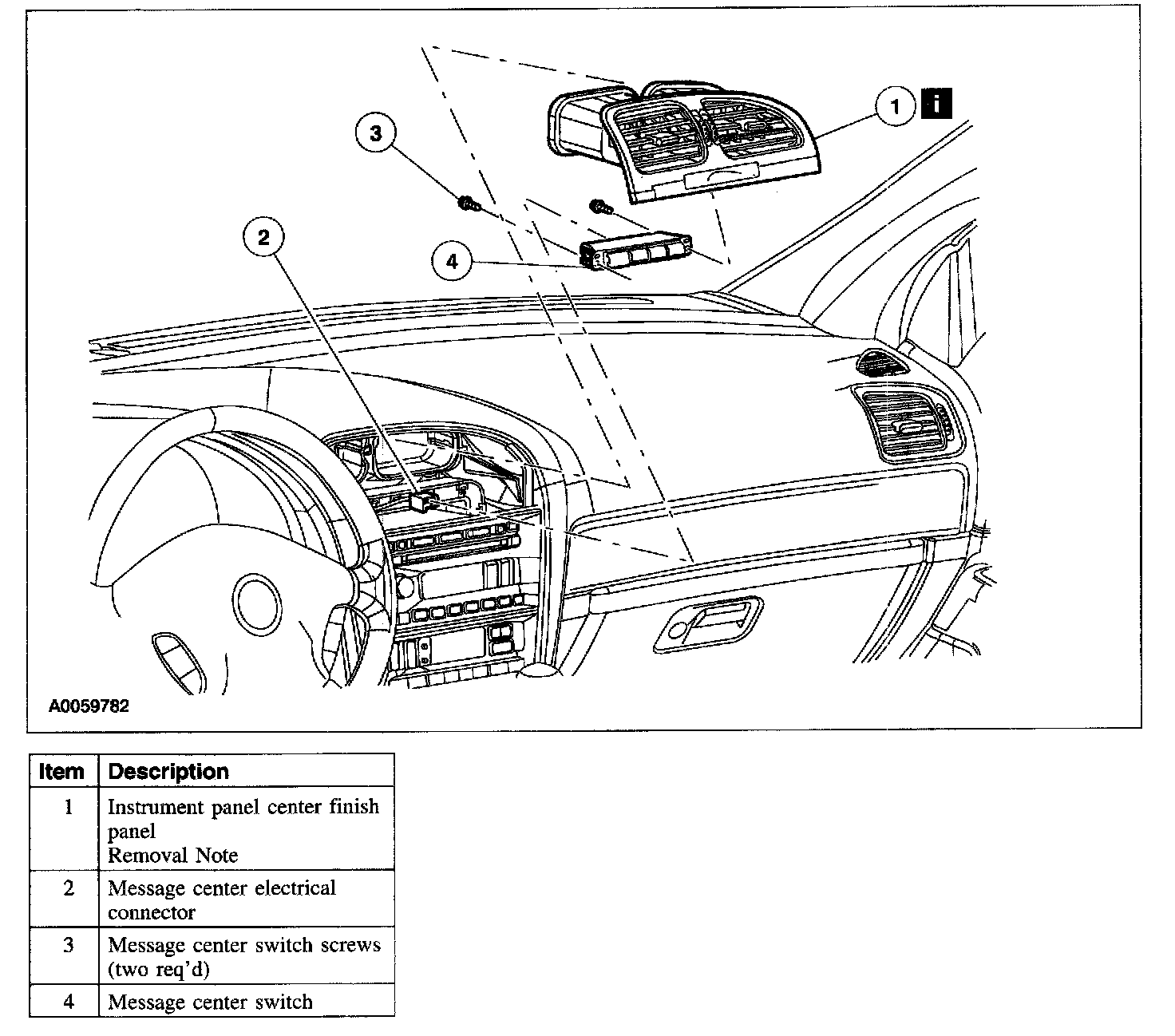

1. Remove the components in the order indicated in the illustration and table.

Item 1: Instrument Panel Center Finish Panel Removal Note
1. The instrument panel center finish panel is held in place by spring clips located on the panel.

INSTALLATION
1. To install, reverse the removal procedure.
