Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2003
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Diagnostic Schematic and Connector Information
>>

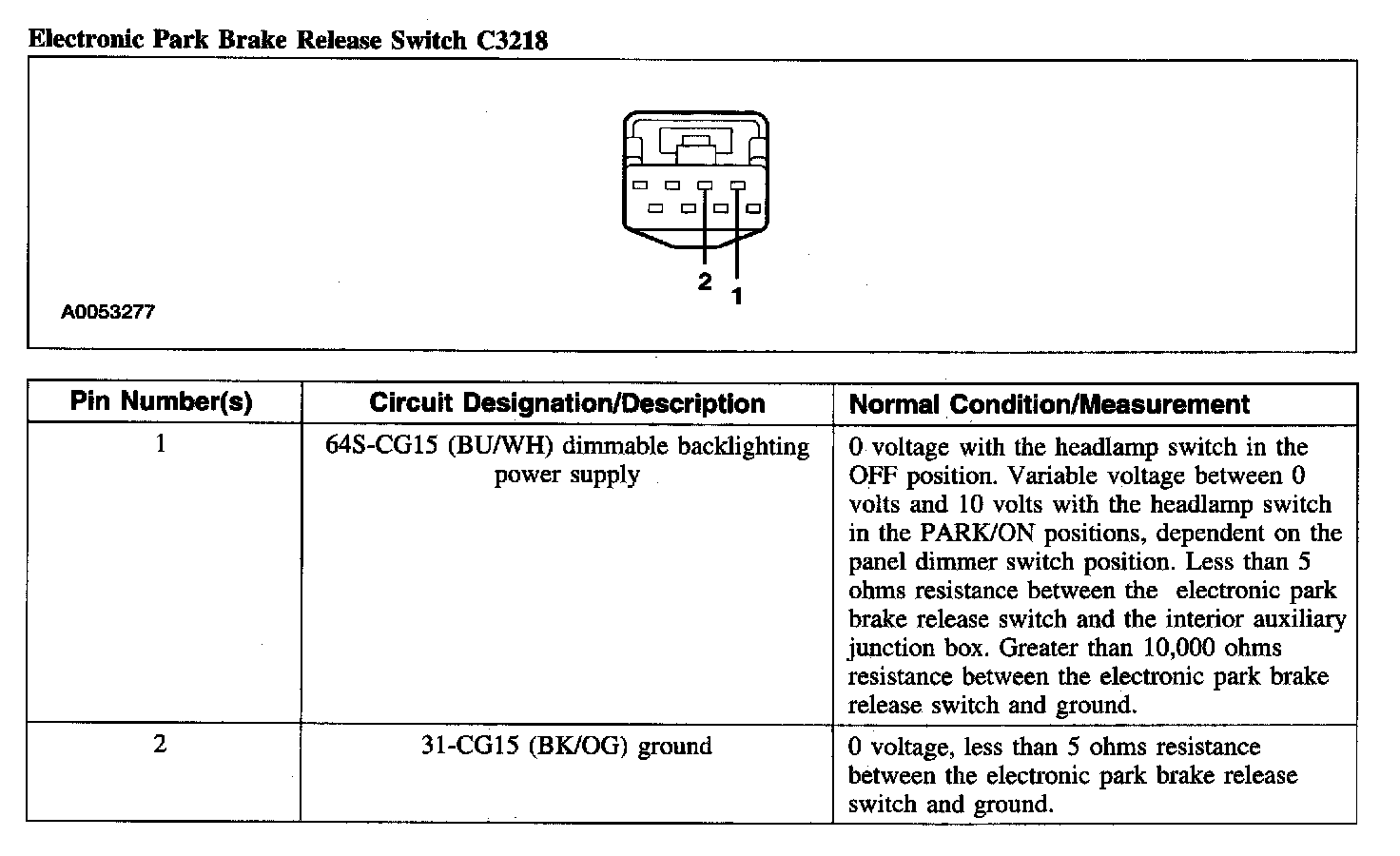

Electronic Park Brake Release Switch C3218
Electronic Park Brake Release Switch C3218
Electronic Park Brake Release Switch C3218:
