Panel Mode Door Actuator C236

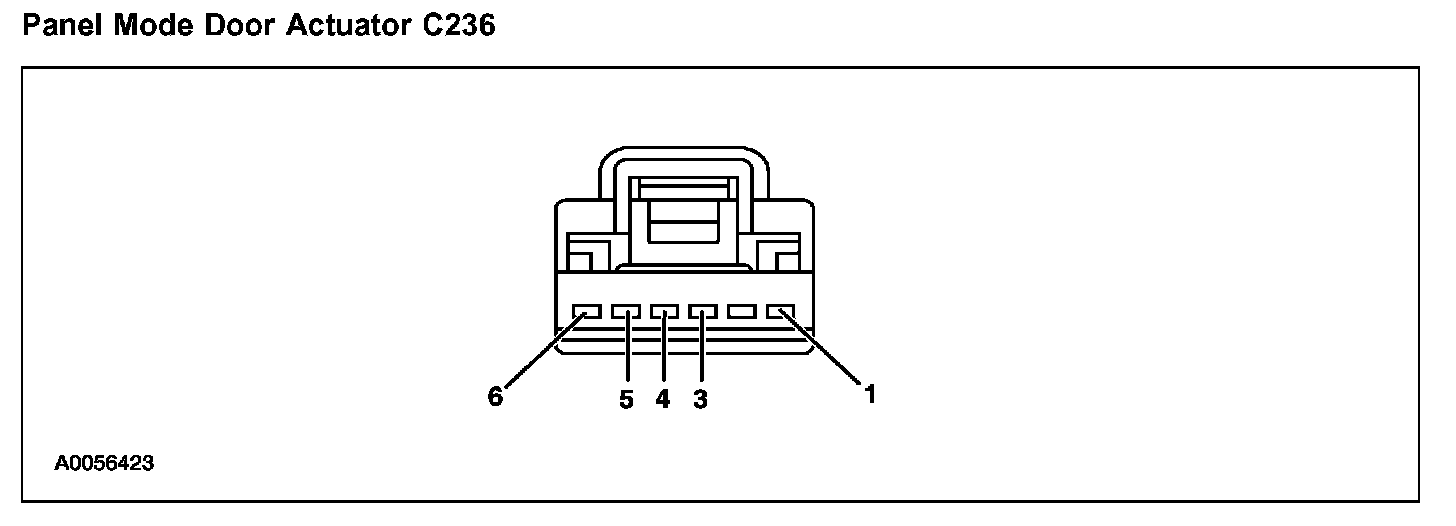

Panel Module Door Actuator C236, Part 1:

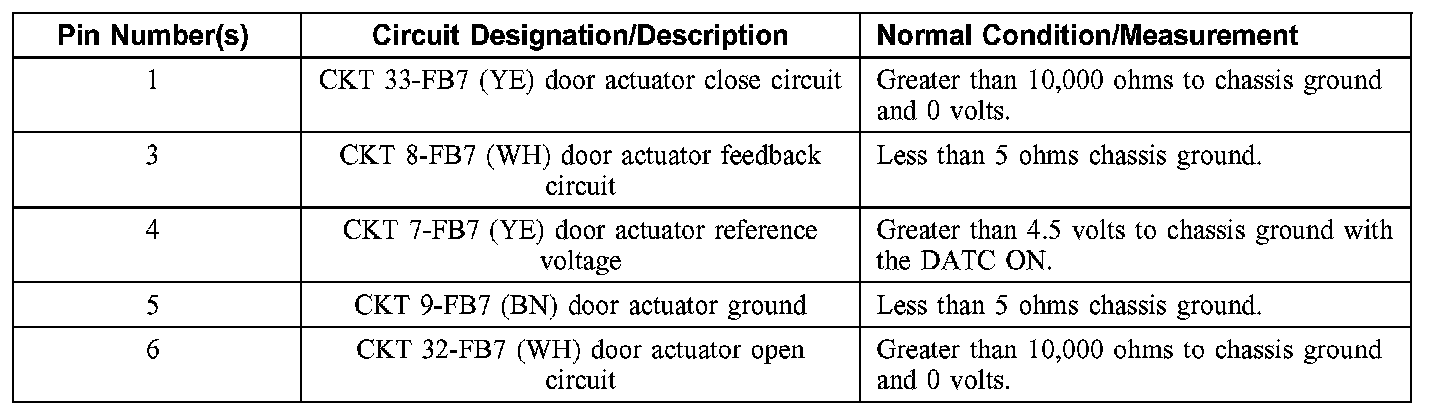

Panel Module Door Actuator C236, Part 2:
