Coolant Line/Hose: Service and Repair

Coolant Inlet Pipe-3.0 (4V)





Material

1. Remove the LH cylinder head.

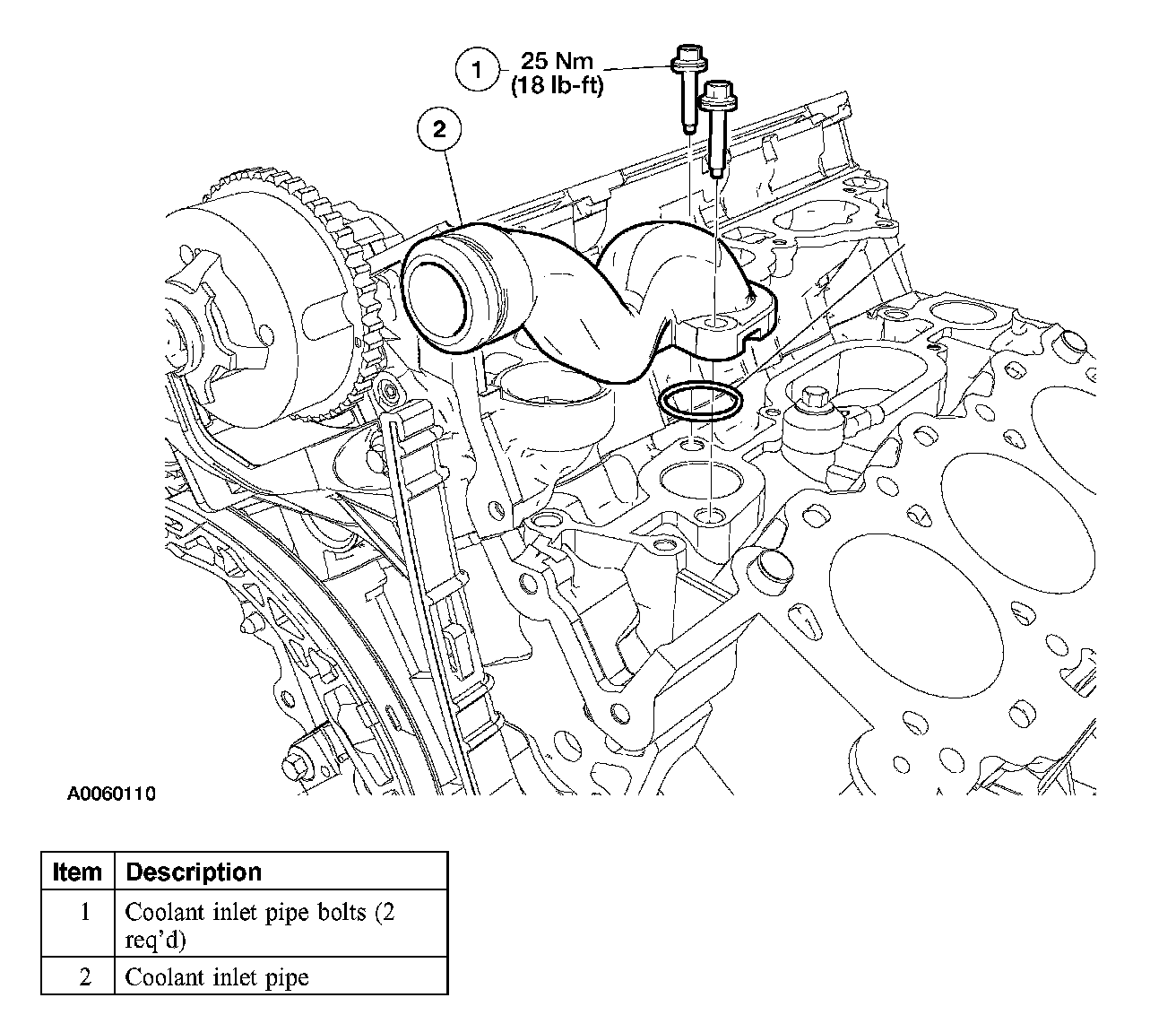

2. Remove the components in the order indicated in the illustration and table.





3. To install, reverse the removal procedure.
4. Fill and bleed the cooling system.
