Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Locations >> Side Air Bag Module >> Left

Left

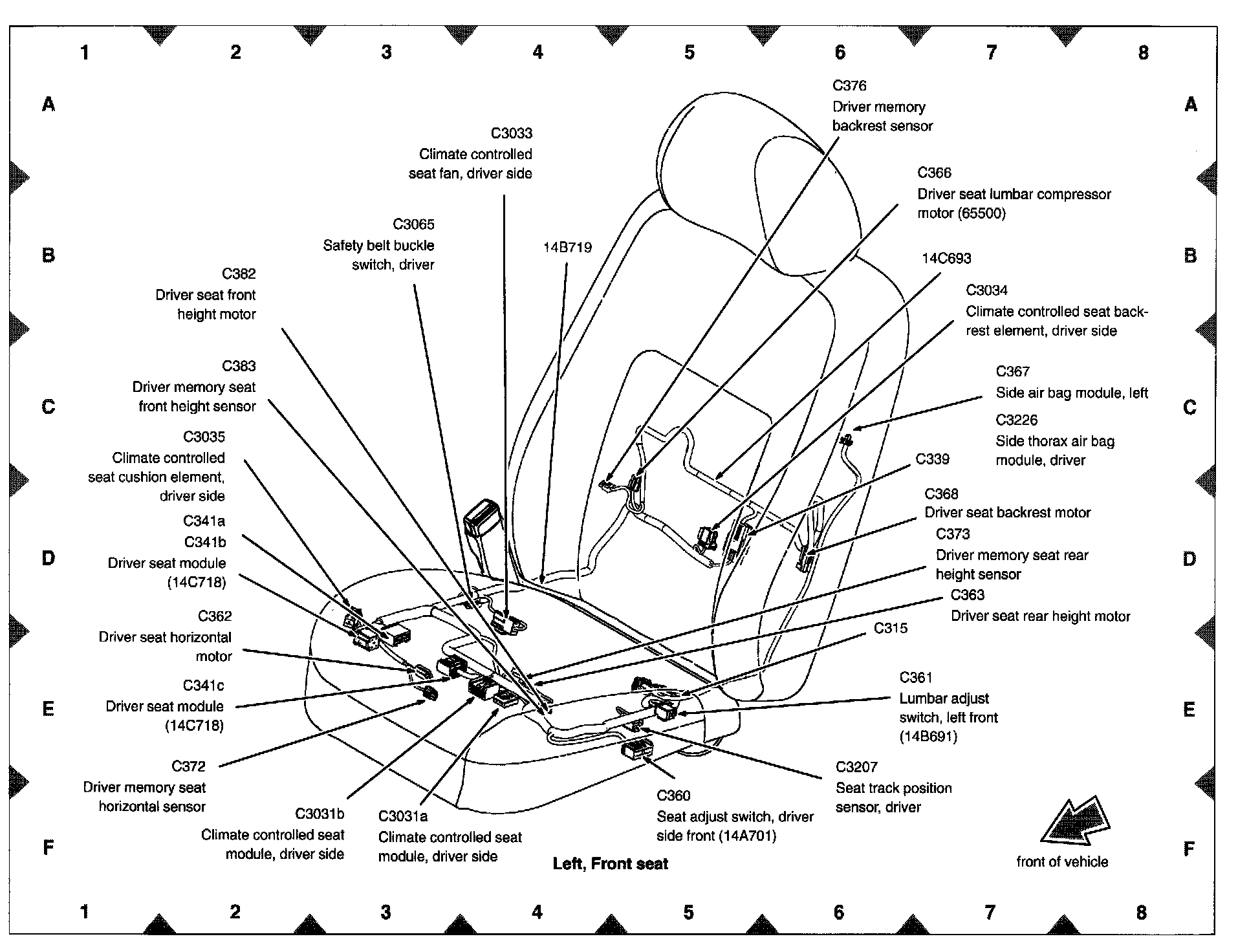

View 151-34 (Left, Front Seat):
