Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH

Removal

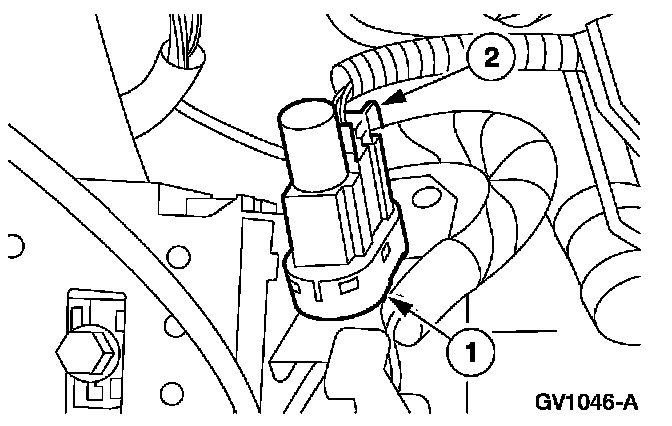

1. Remove the speed control deactivator switch.
1. Rotate counterclockwise and remove the speed control deactivator switch.
2. Disconnect the electrical connector.

Installation
1. Fully apply the brake pedal.

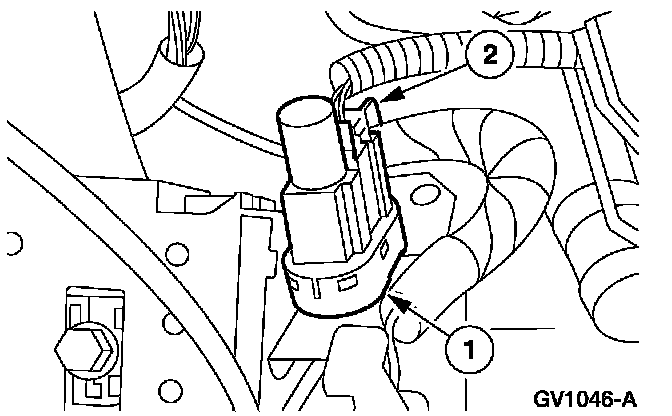

2. Install the speed control deactivator switch.
1. Position the speed control deactivator switch in the bracket and rotate clockwise.
2. Connect the electrical connector.

3. Insert a 1 mm (0.04 in) feeler gauge between the brake pedal actuation surface and the deactivator switch plunger.
4. Slowly release the brake pedal.
