Clock: Service and Repair

Clock

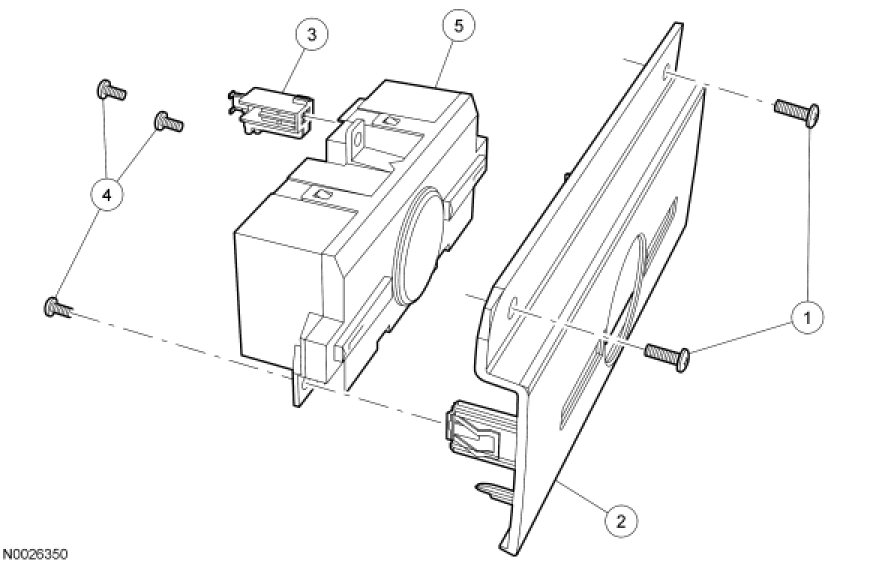

Removal and Installation

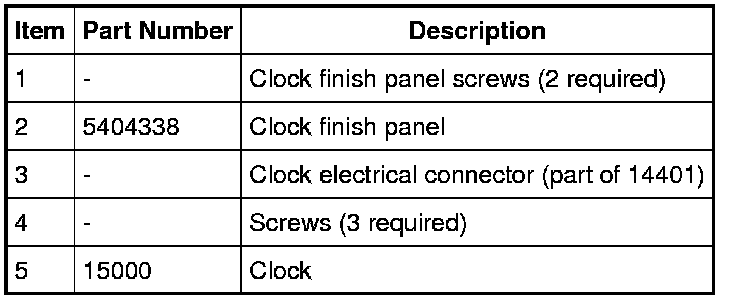

1. Remove the Instrument Cluster (IC) finish panel.

2. Remove the 2 clock finish panel screws.

3. Remove the clock finish panel.
- Disconnect the electrical connector.

4. Remove the 3 screws and the clock.

5. To install, reverse the removal procedure.
