Front

SPEED SENSOR ROTOR, FRONT (4X2) REMOVAL / INSTALLATION
1. Remove the disc plate.

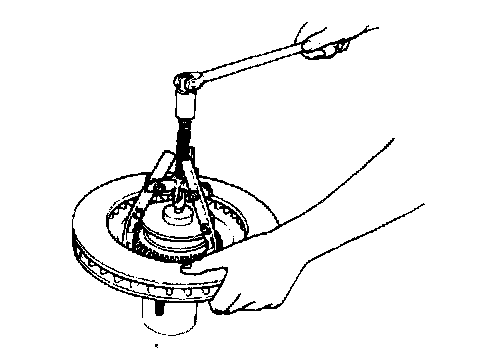

2. Remove the speed sensor rotor from the disc plate using a 3-jaw puller.
3. Install in reverse order of removal, referring to Installation Note.

Front Speed Sensor Ring Installation

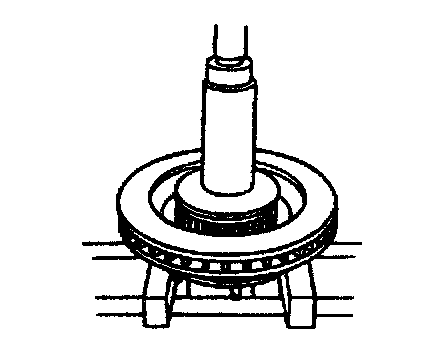

1. Press the new speed sensor rotor on the disc plate using a cylinder with a 79 mm (3.1 inch) ID and a 96 mm (3.8 inch) OD.
