Front

SPEED SENSOR, FRONT (4X2) REMOVAL / INSTALLATION
1. Raise and support the vehicle.
2. Disconnect the front anti-lock brake sensor wire from the vehicle frame.
1 Disconnect the electrical connector.





2 Unclip the front anti-lock brake sensor wire from the vehicle frame.

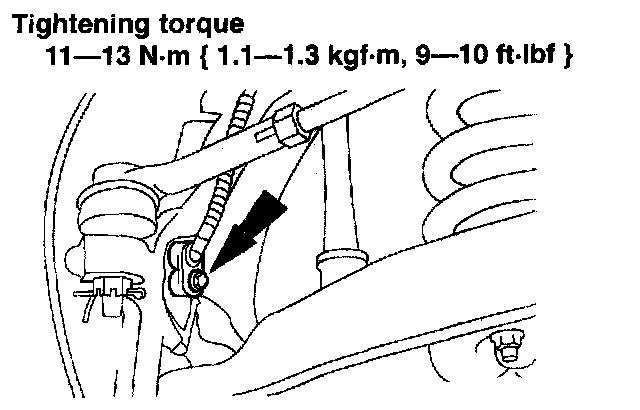

3. Remove the bolt and speed sensor.
Tightening torque 11 - 13 Nm (1.1 - 1.3 kgf-m, 9 - 10 ft. lbs.)

Note: Plug the sensor mount opening and thoroughly clean the mounting surface. Apply grease.

4. Install in reverse order of removal.
