Diagnosis By Symptom

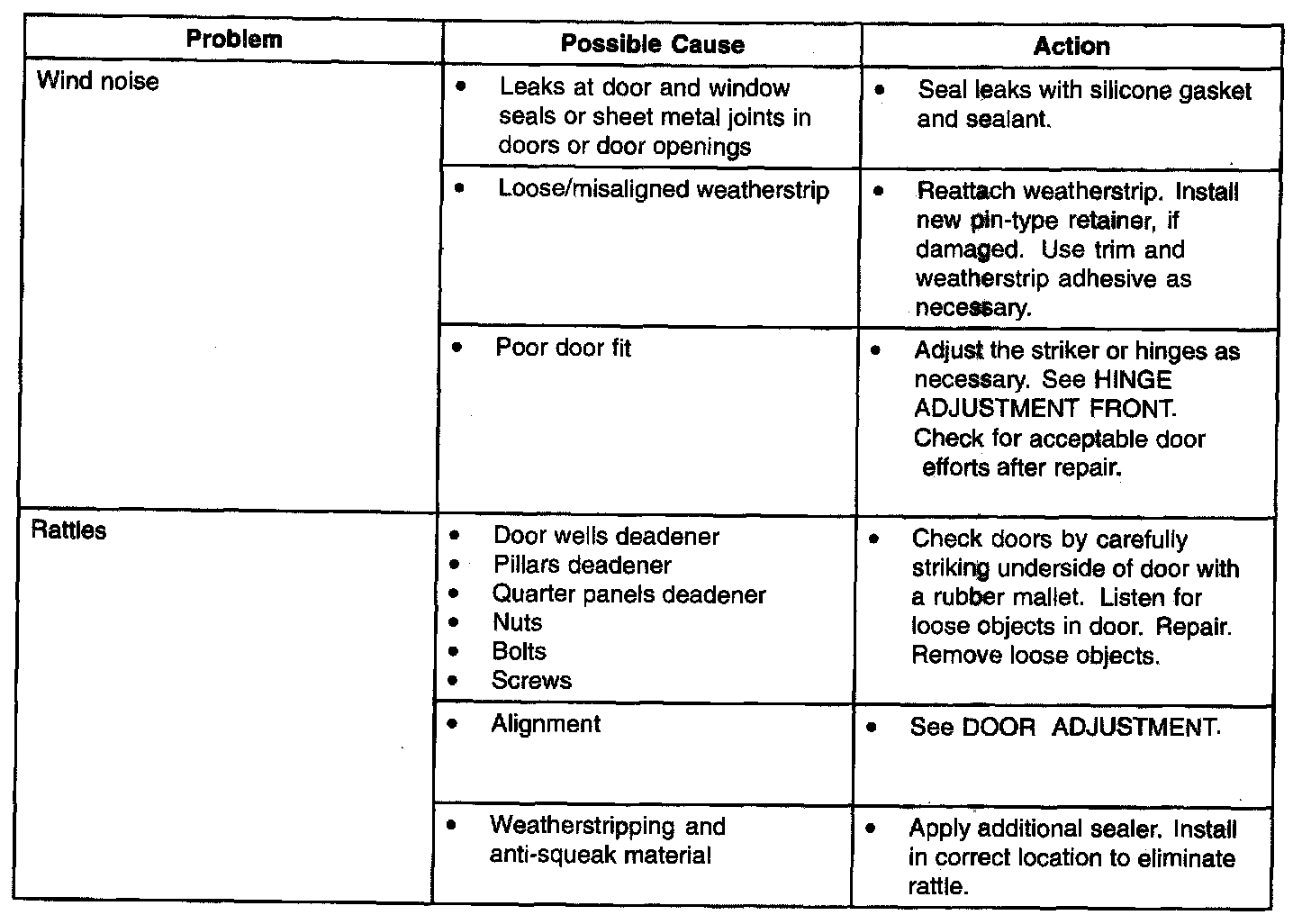

Symptom Troubleshooting Chart-Body System (Part 1):

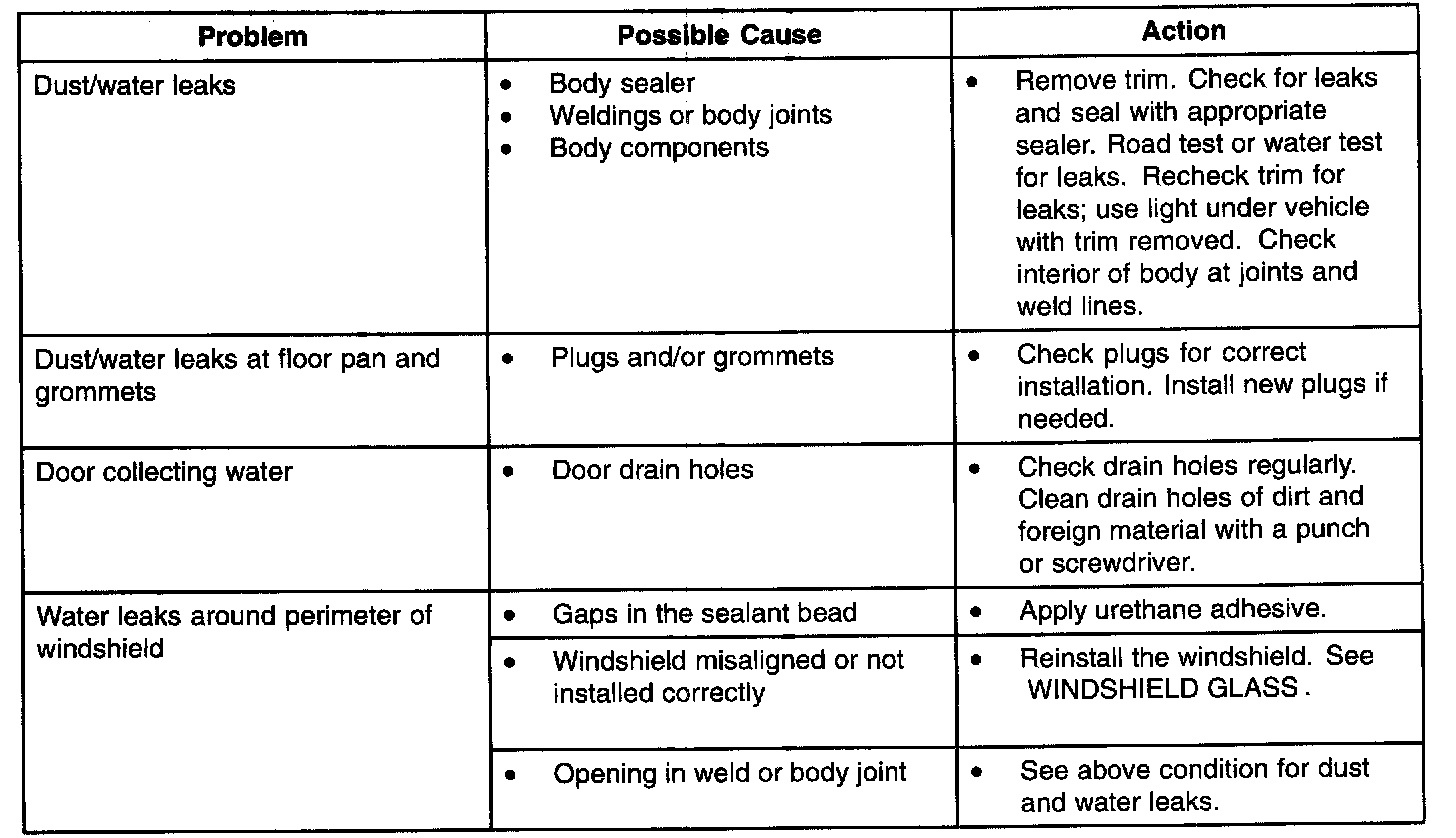

Symptom Troubleshooting Chart-Body System (Part 2):
