Instrument Panel Register Duct

INSTRUMENT PANEL REGISTER DUCT REMOVAL / INSTALLATION - LH




1. Remove the LH instrument panel finish panel, see INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - LH.
2. Remove the two screws and remove the LH instrument panel register duct.
3. Install in reverse order of removal.

INSTRUMENT PANEL REGISTER DUCT REMOVAL / INSTALLATION - RH

Removal / Installation
1. Remove the RH instrument panel register, see INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - RH.
2. Remove the passenger side air bag module.

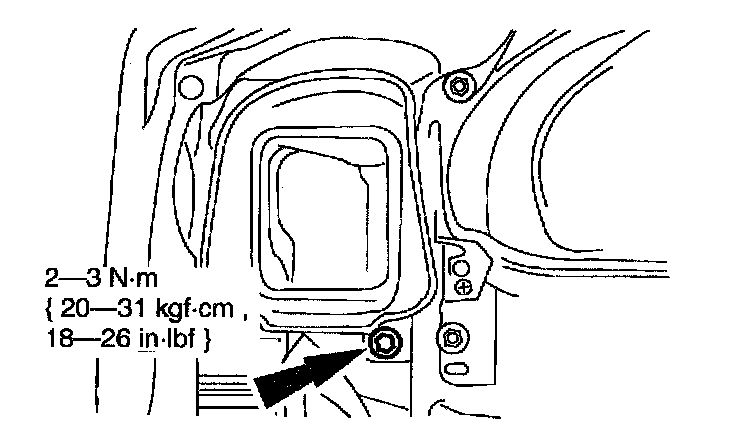

3. Remove the two RH instrument panel register duct screws then remove the duct.

Tightening Torque: 2 - 3 N.m {20 - 30 kgf.cm, 18 - 26 in.lbf}

4. Install in reverse order of removal.

INSTRUMENT PANEL DUCT REGISTER CENTER REMOVAL / INSTALLATION

1. Remove the center instrument panel register. See INSTRUMENT PANEL REGISTER CENTER REMOVAL / INSTALLATION.
2. Remove the center instrument panel register duct screws then remove the duct.

Tightening torque: 2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}.

3. Install in reverse order of removal.
