Powertrain Control System

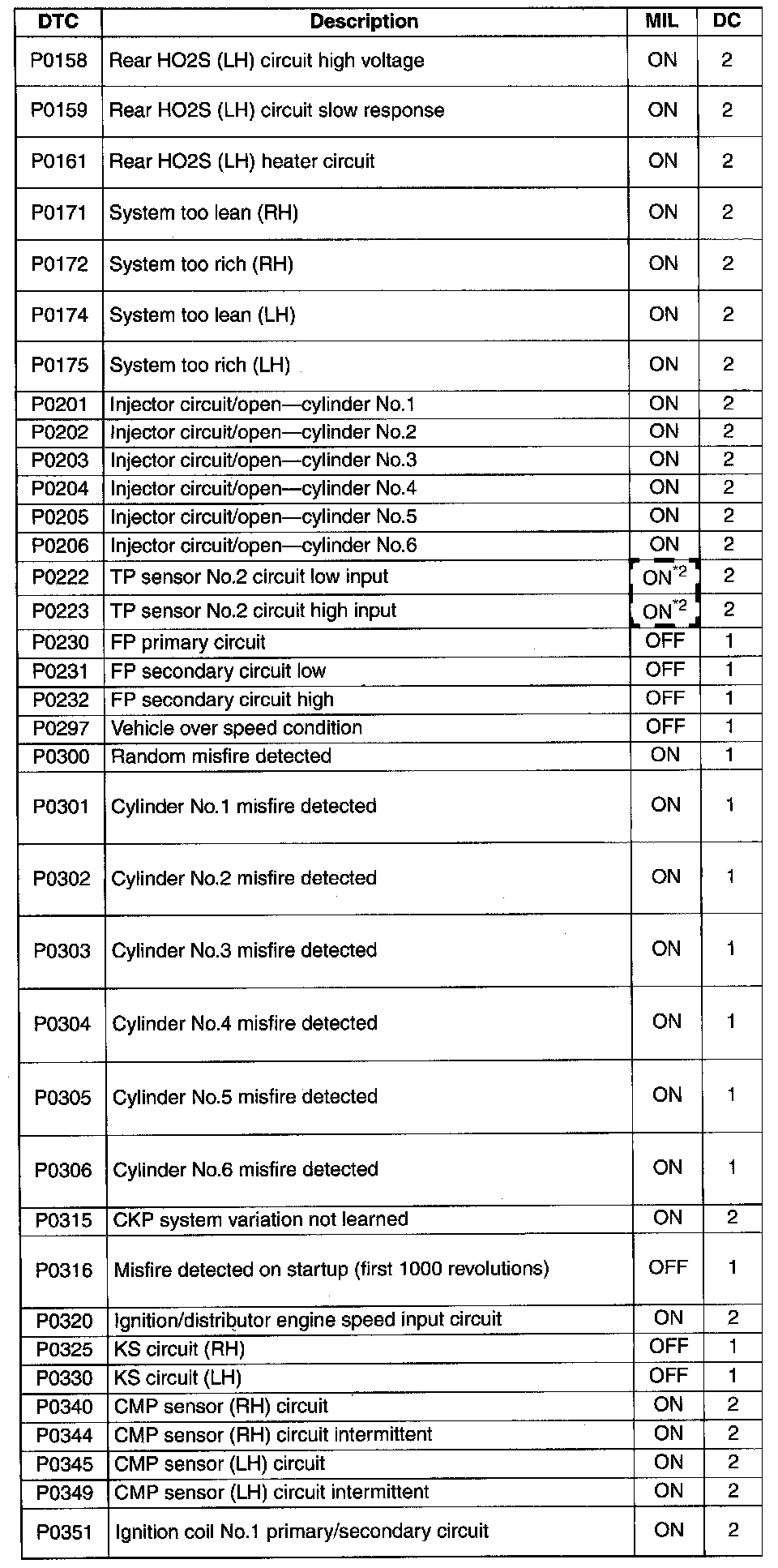

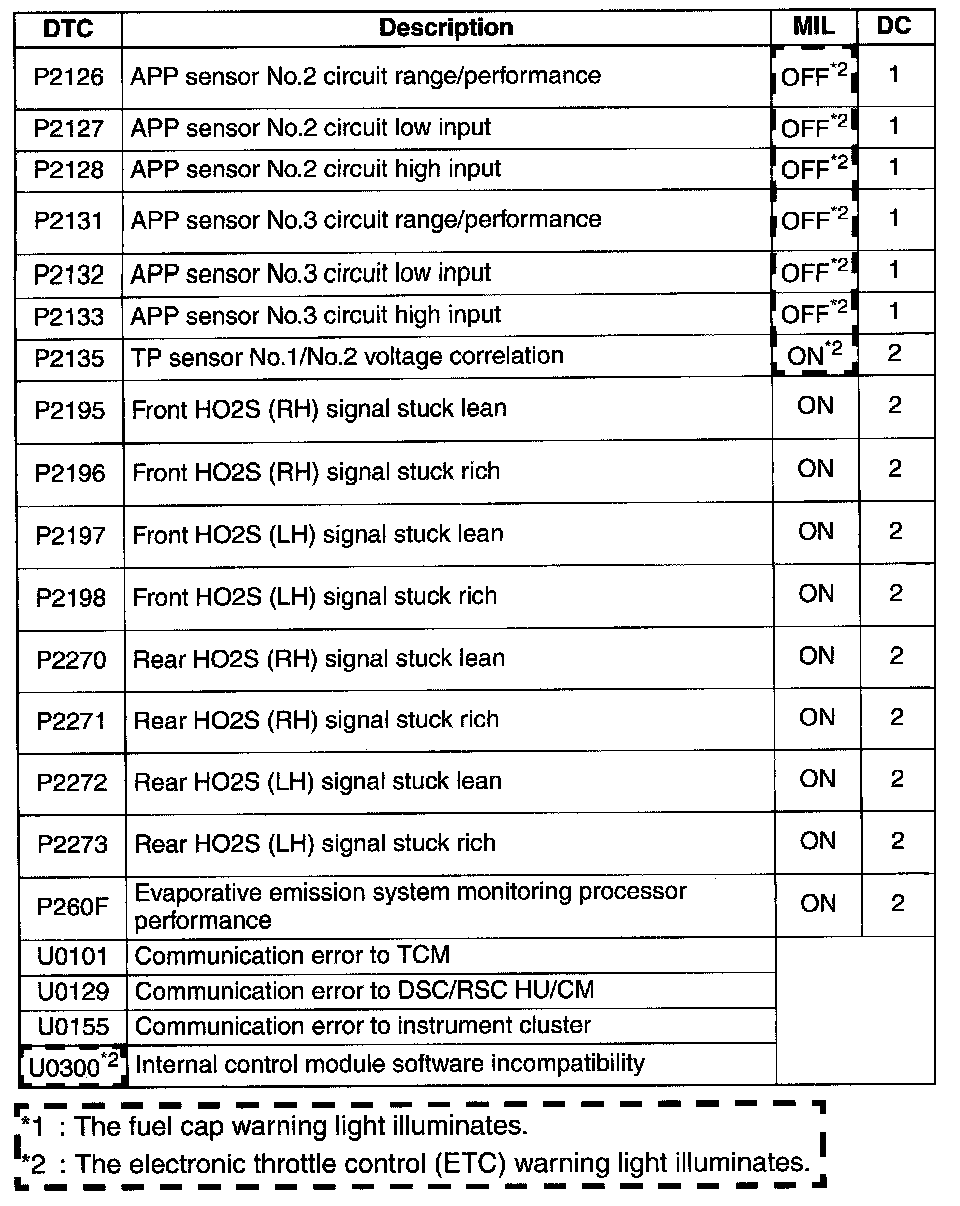

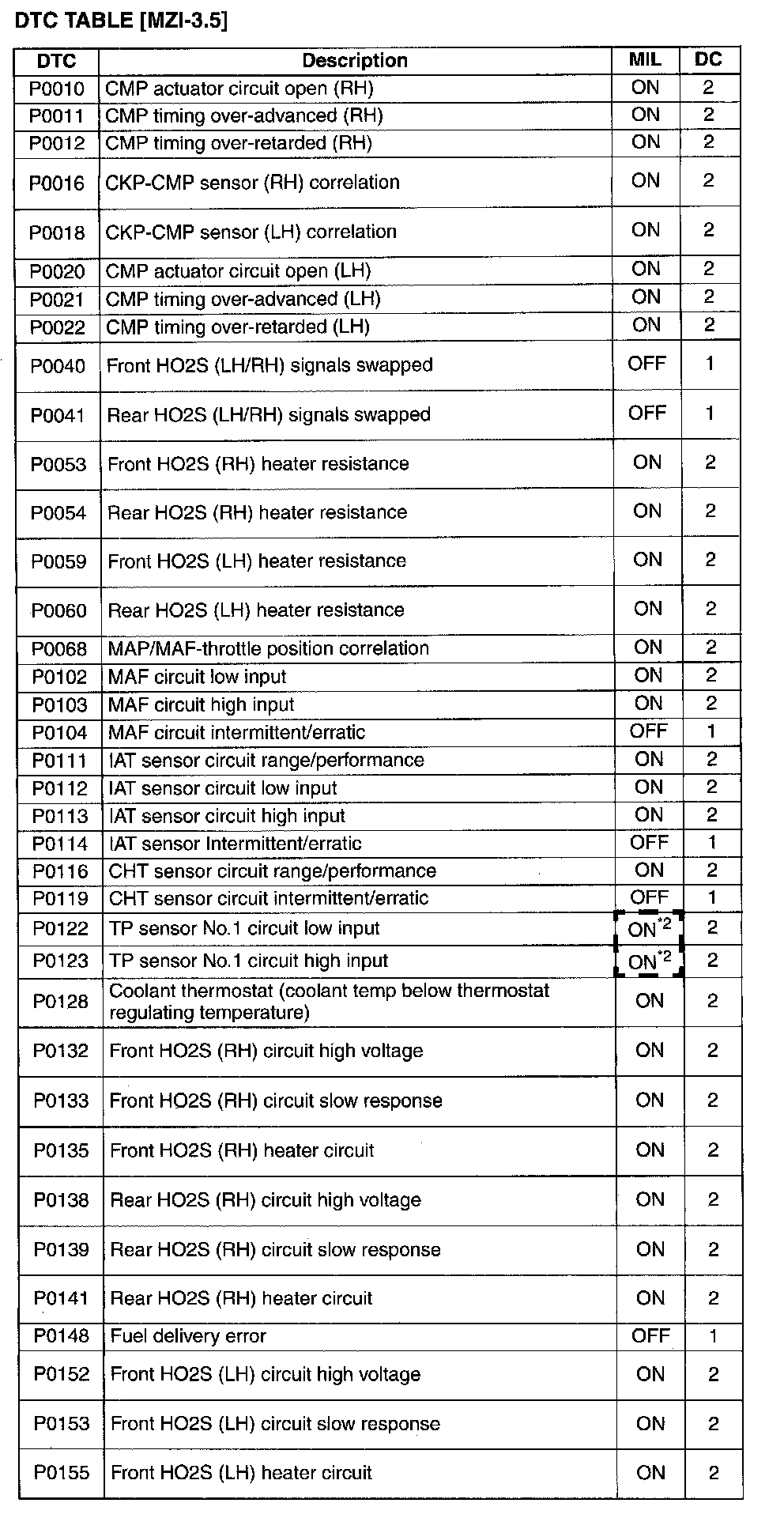

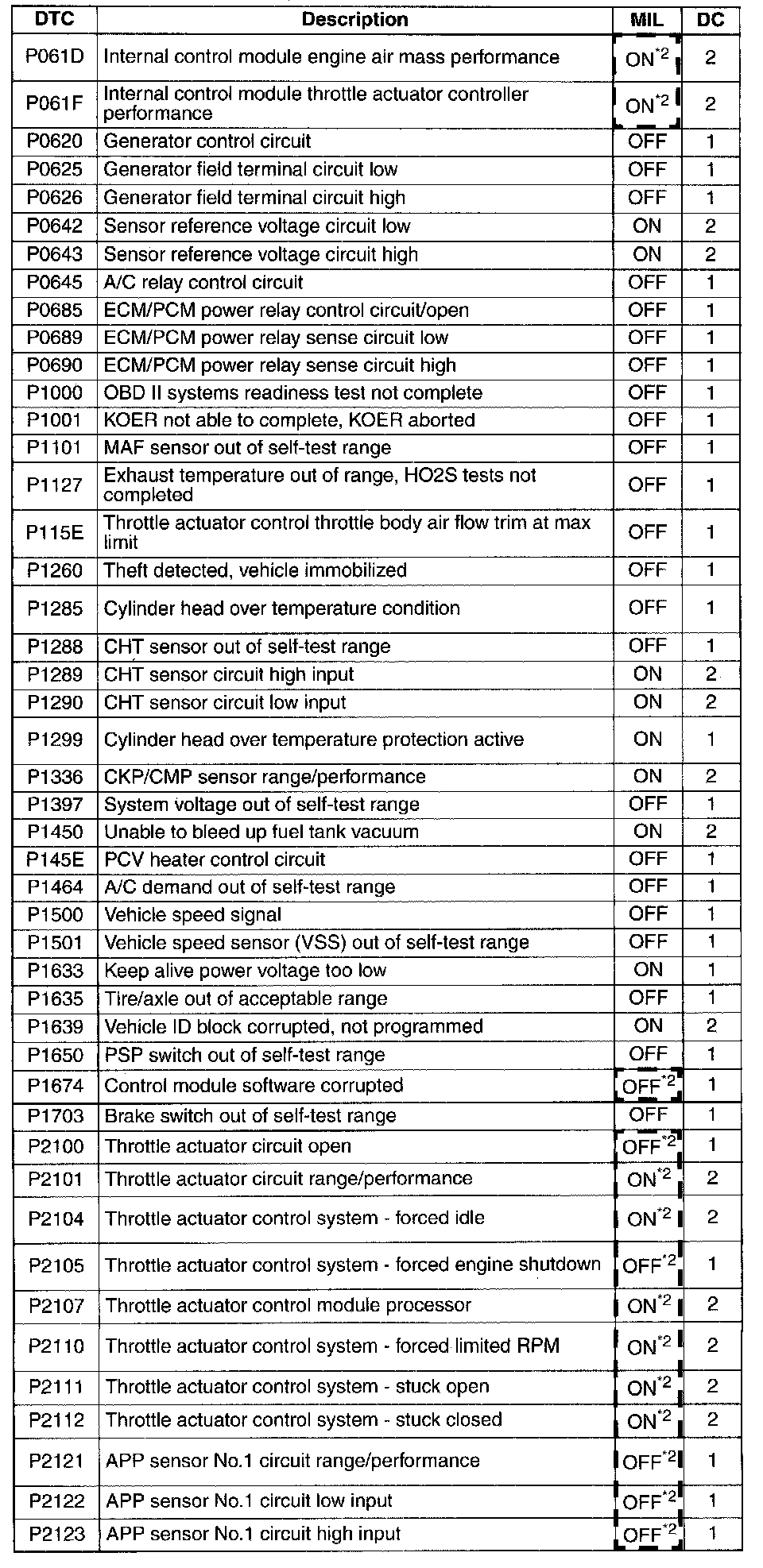

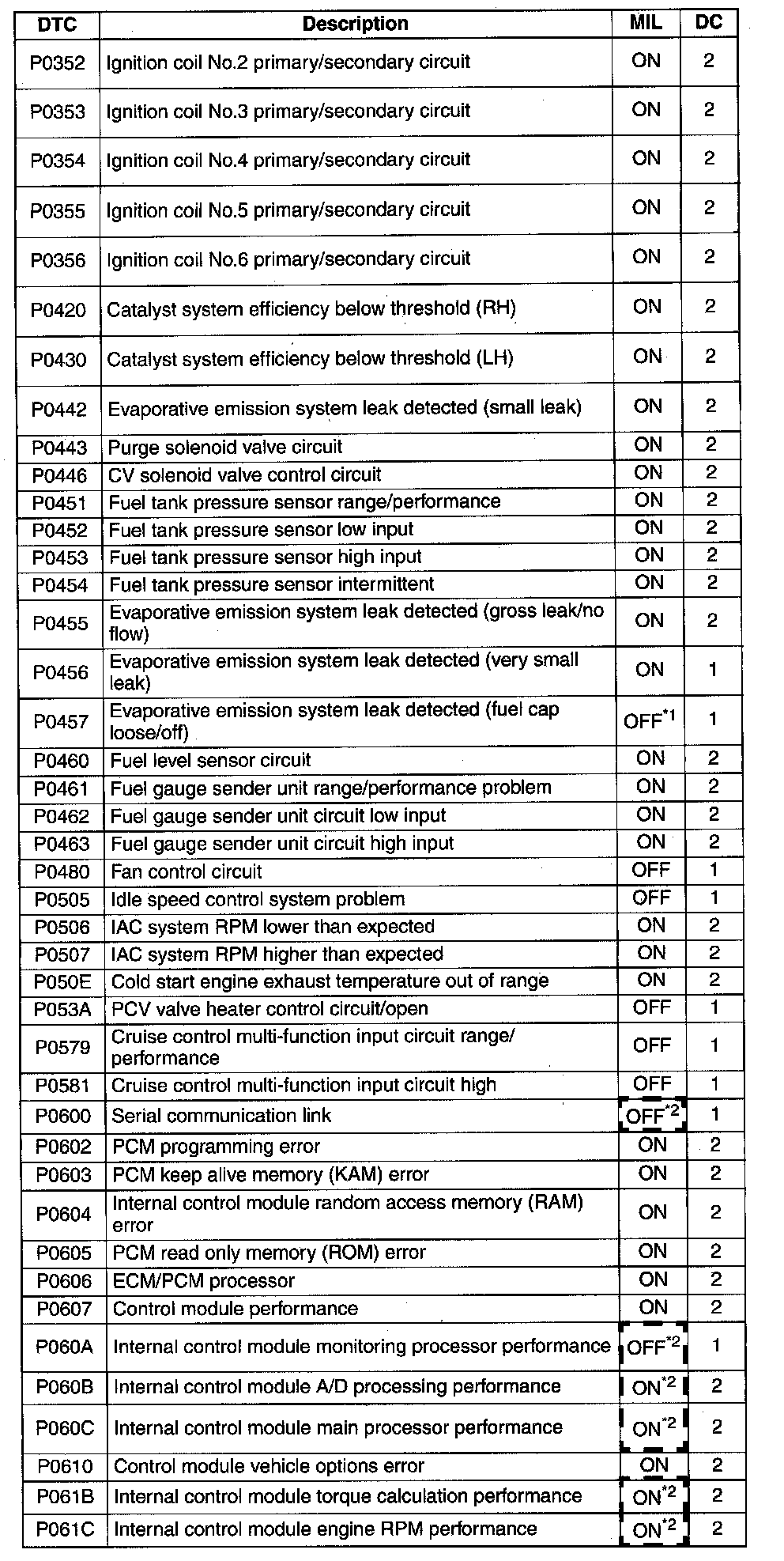

DTC Table Part 1:



DTC Table Part 2:



DTC Table Part 3:



DTC Table Part 4:



DTC Table Part 5:



DTC Table Part 6:
