Console Cover Removal/Installation

CONSOLE COVER REMOVAL/INSTALLATION






1. Disconnect the negative battery cable.

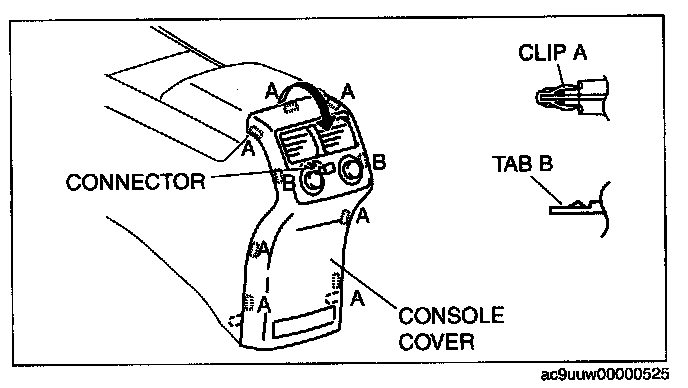

2. Detach clips A and tabs B by pulling them in the direction of the arrow.
3. Disconnect the rear climate control unit connector.
4. Remove the console cover.
5. Install in the reverse order of removal.
