Indicator Panel Removal/Installation

INDICATOR PANEL REMOVAL/INSTALLATION






1. Remove the front console box mat.

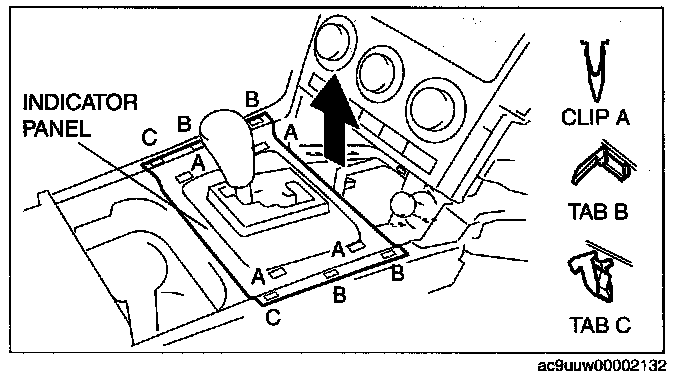

2. Detach clips A and tabs B and C by pulling them in the direction of the arrow.
3. Remove the indicator panel.
4. Install in the reverse order of removal.
