Home >> Mazda Truck >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Rear HO2S(LH)

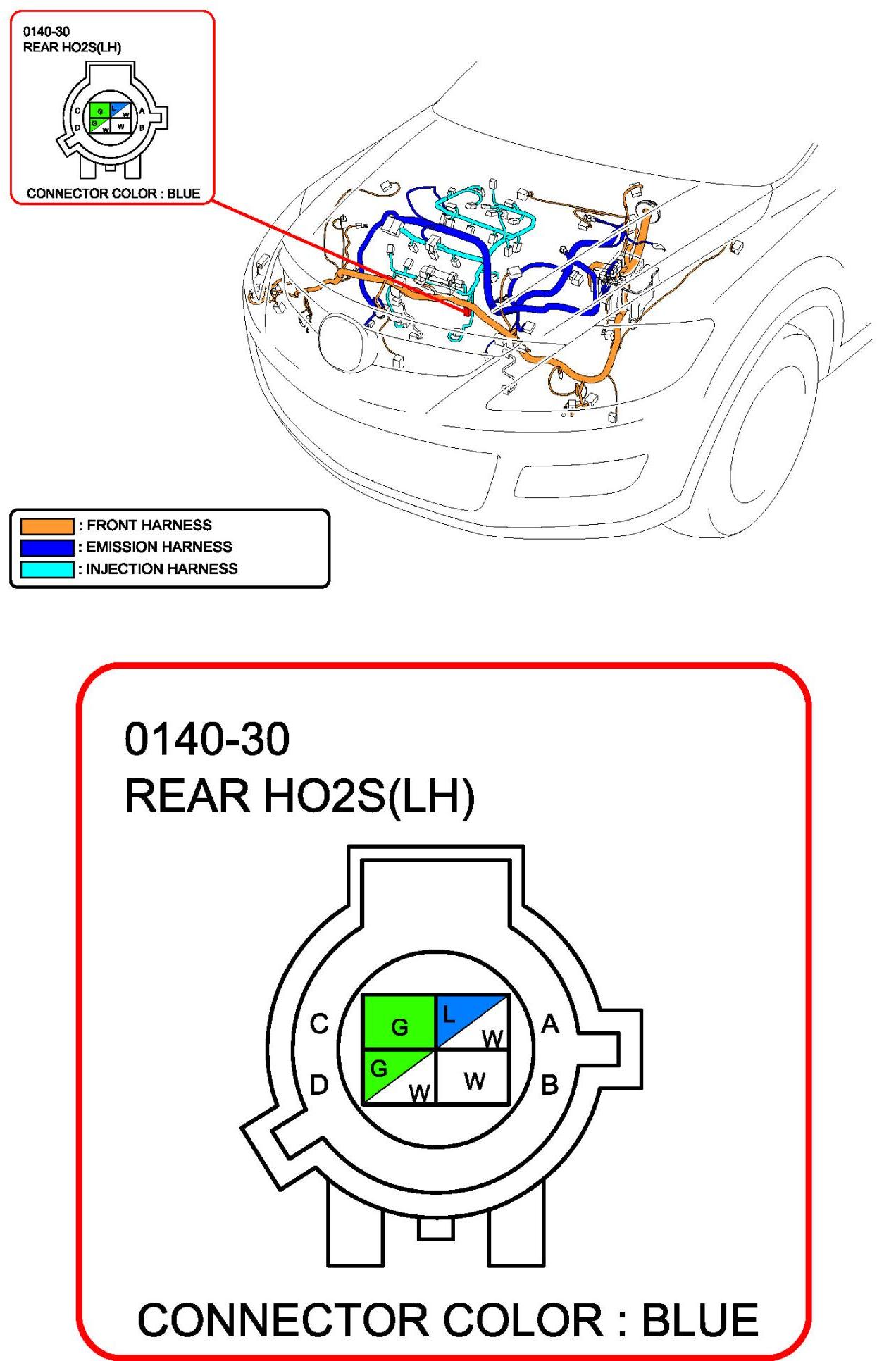

Rear HO2S(LH)

Rear HO2S(LH):
