Home >> Mazda Truck >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Rear

Rear

Terminal Voltage Table (Reference):

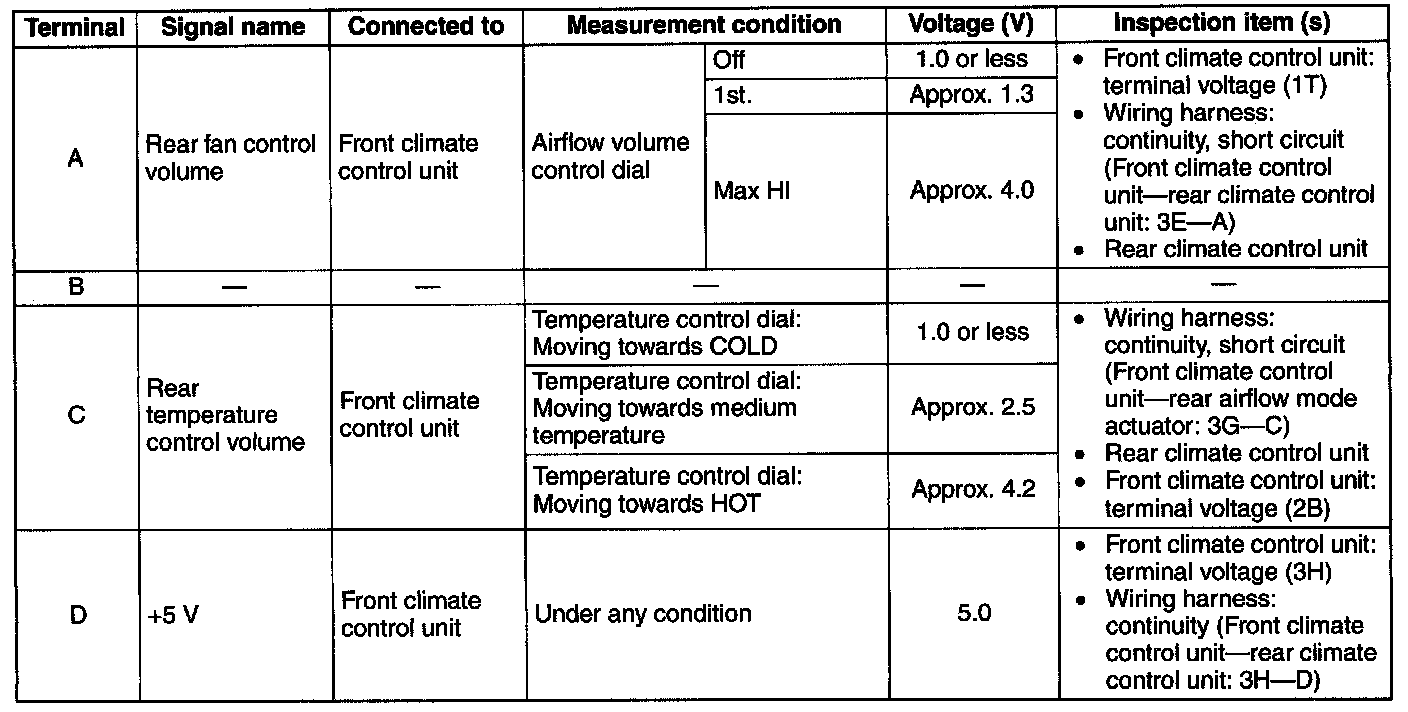

Terminal A-D:

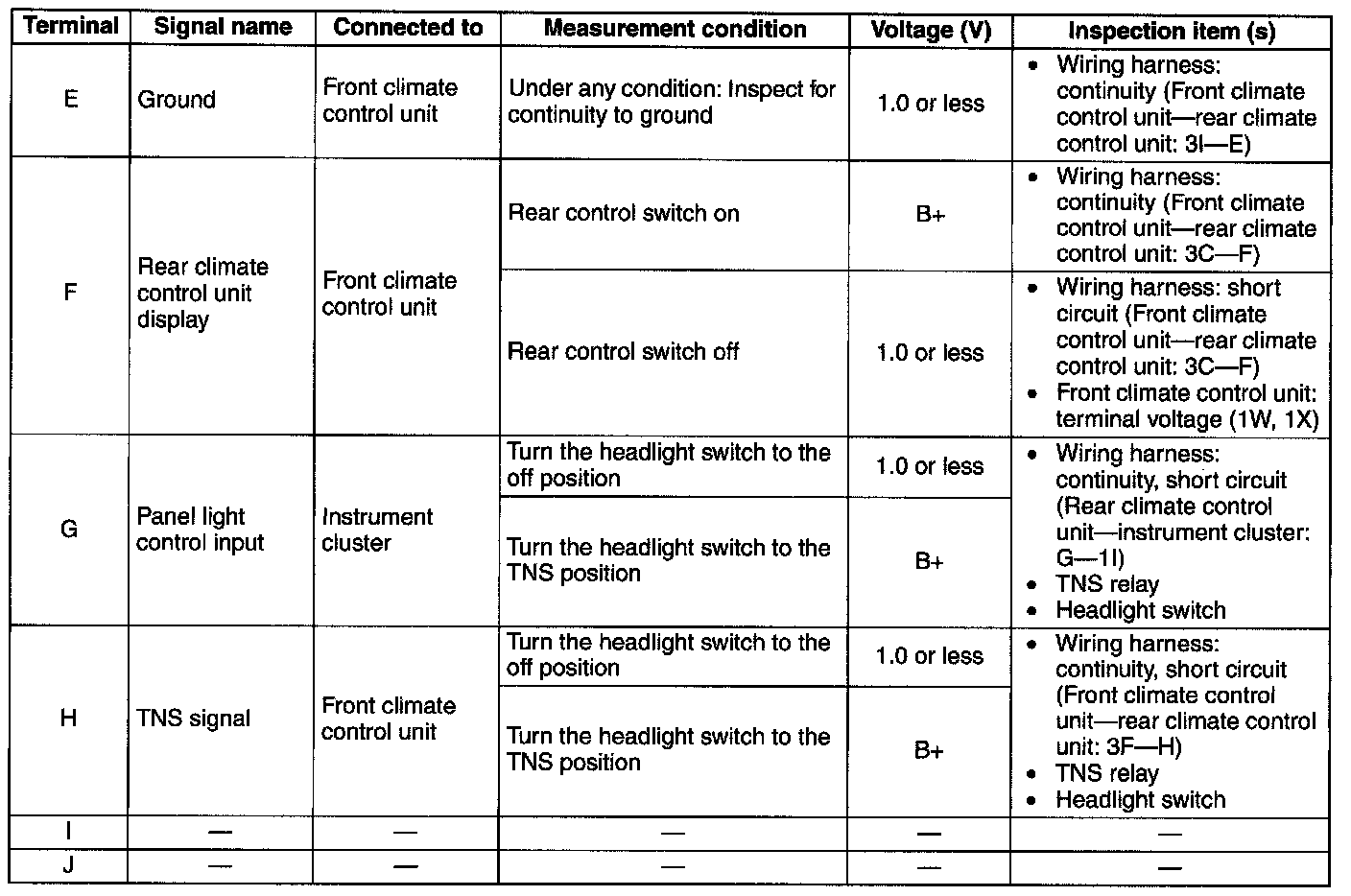

Terminal E-J:
