Home >> Mazda Truck >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> System Schematic >> Rear

Rear

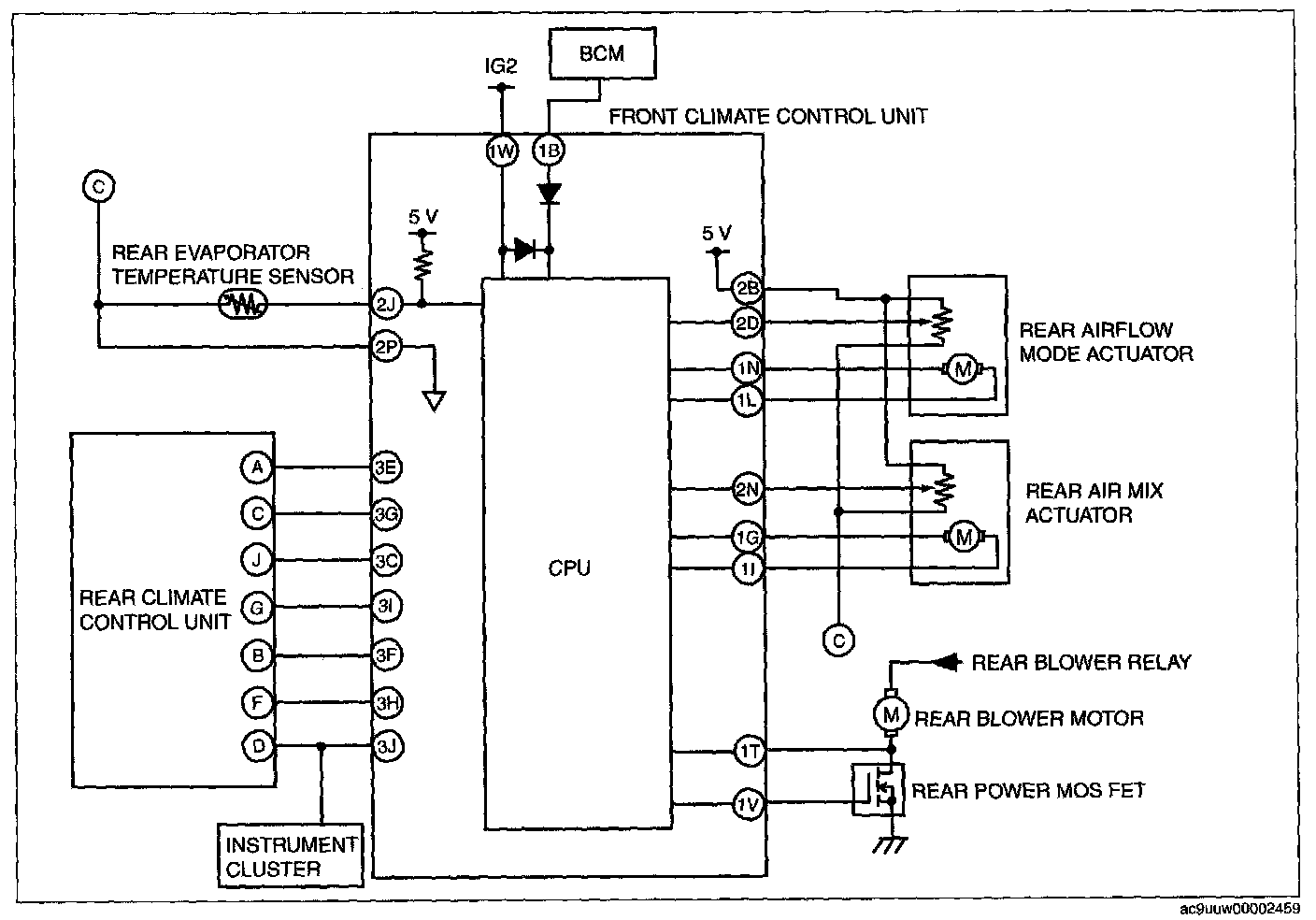

Rear HVAC System Wiring Diagram:

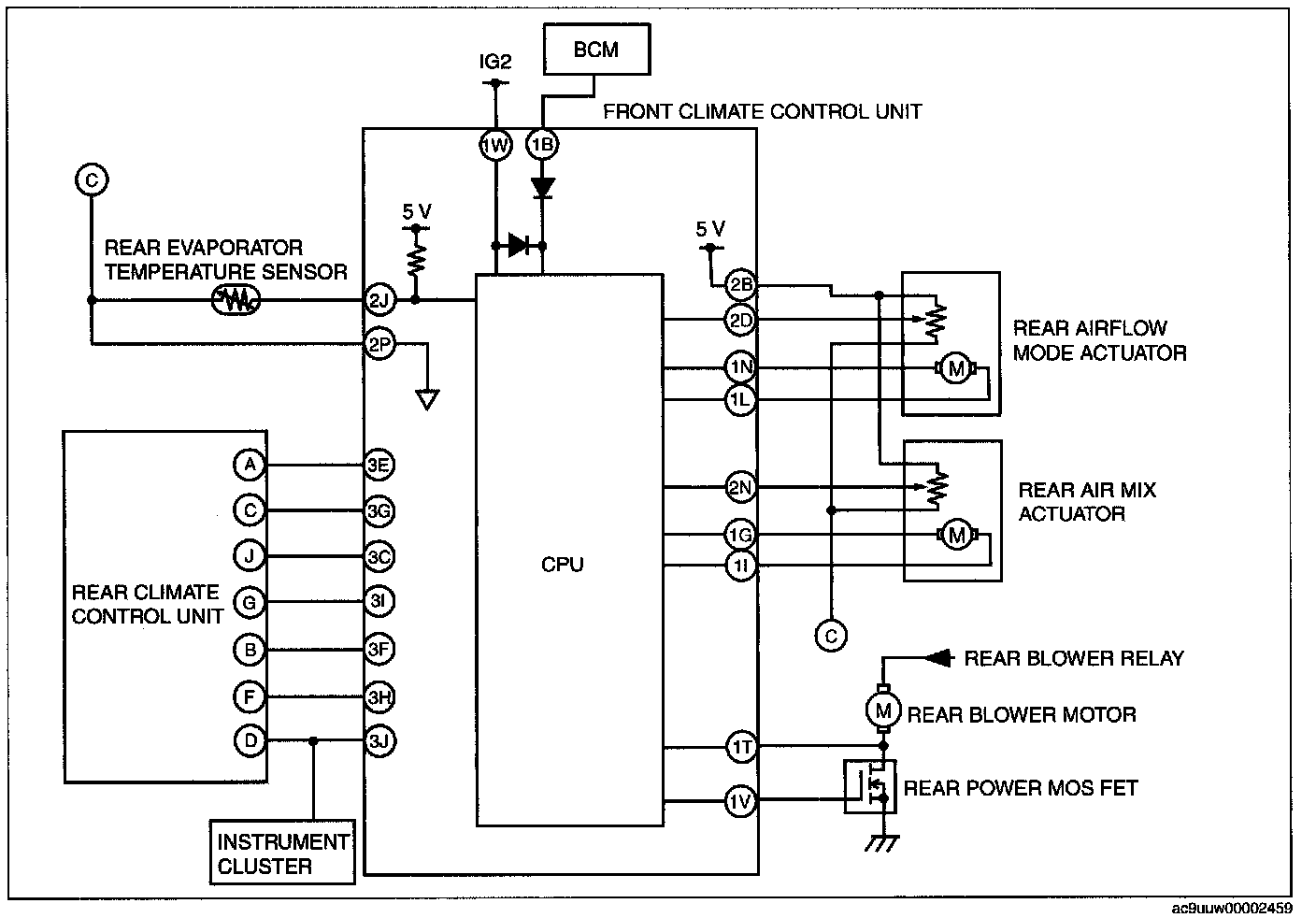

Rear HVAC System Wiring Diagram:
