Overhaul

FRONT A/C UNIT DISASSEMBLY/ASSEMBLY

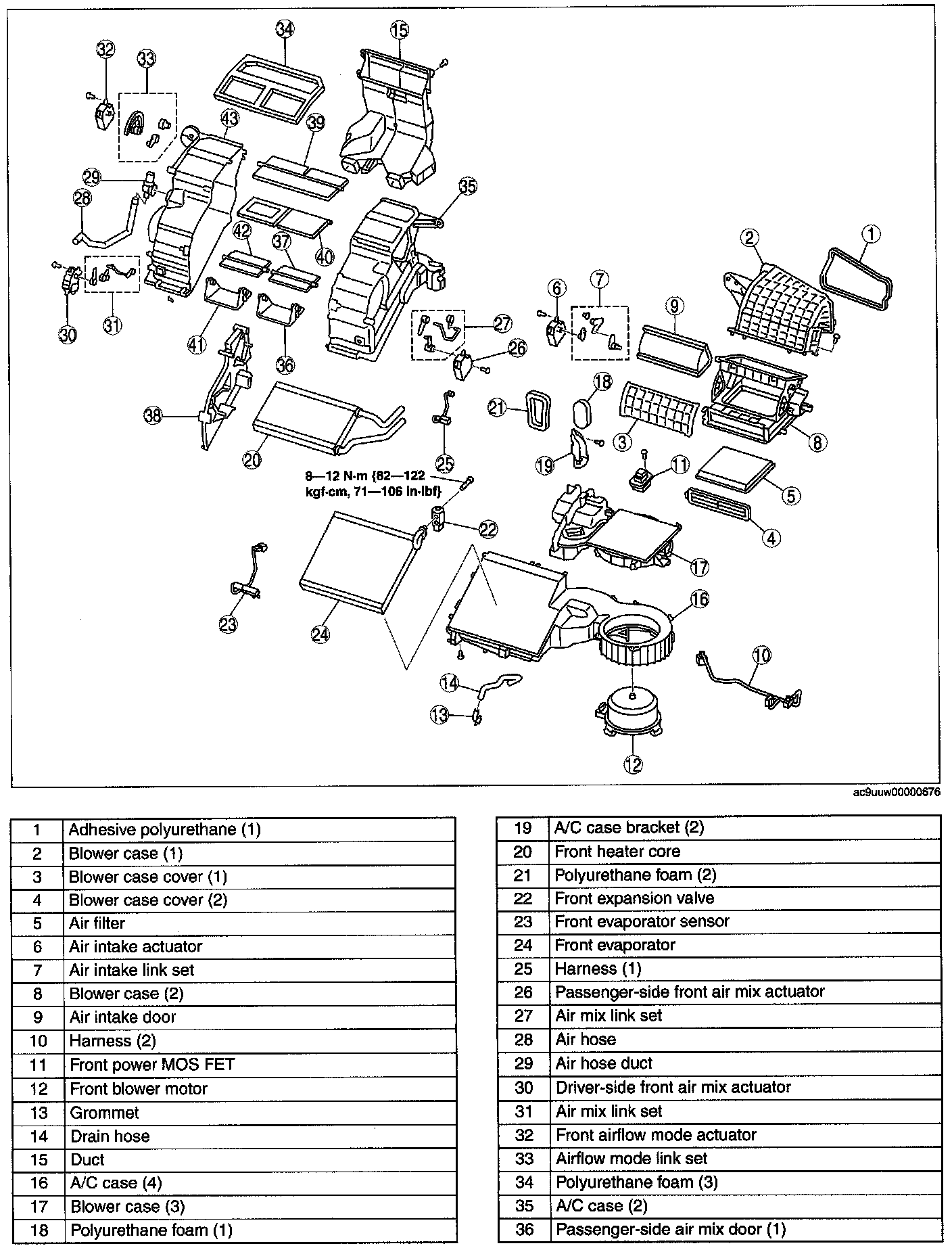

Front A/C Unit Disassembly/Assembly (Part-1):

Front A/C Unit Disassembly/Assembly (Part-2):

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
