Home >> Mazda Truck >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams

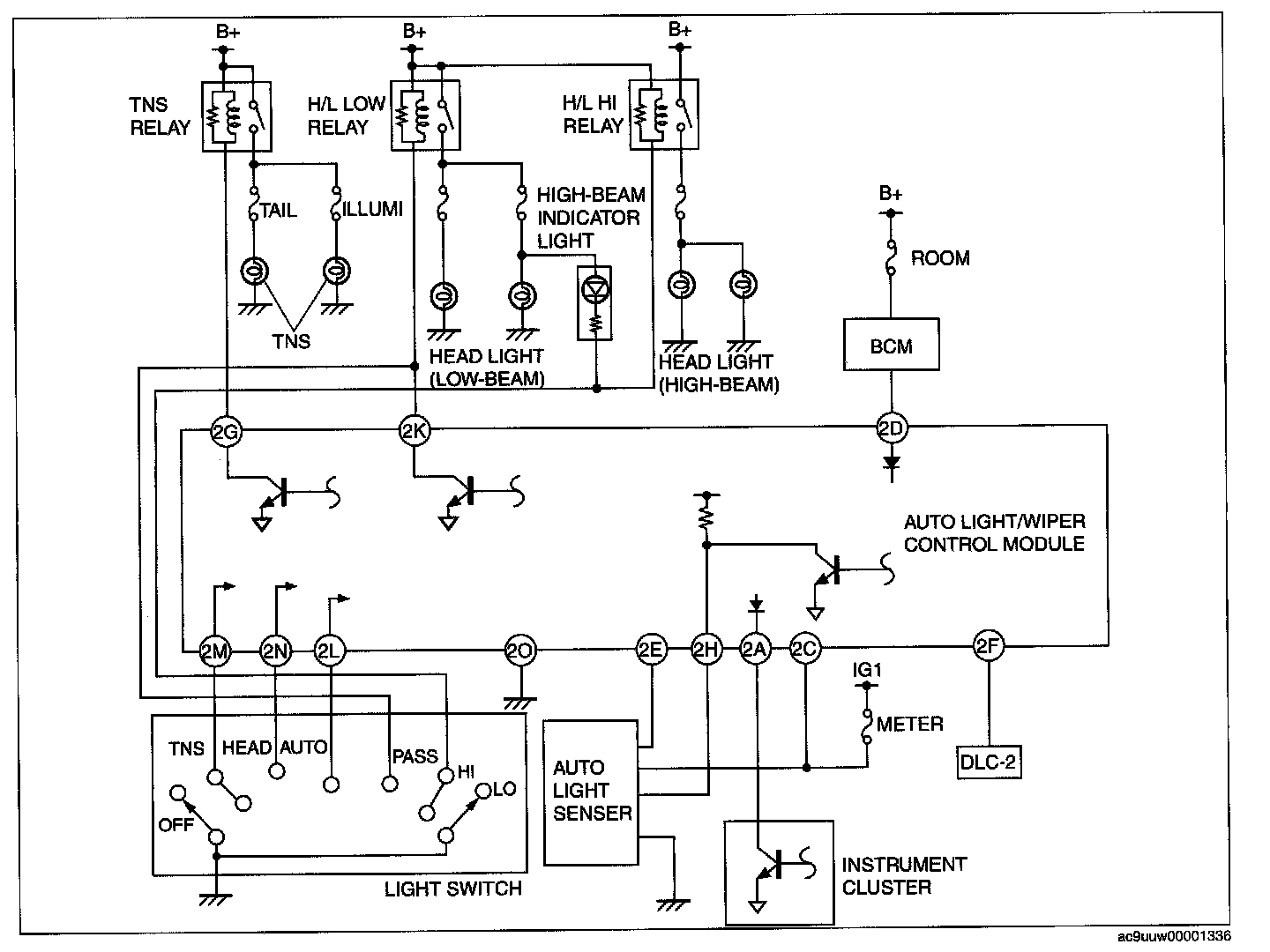

Lighting and Horns: Diagrams



Lighting Systems Location Index (Part-1):





Vechicles Without DRL:
