Fuses and Relays

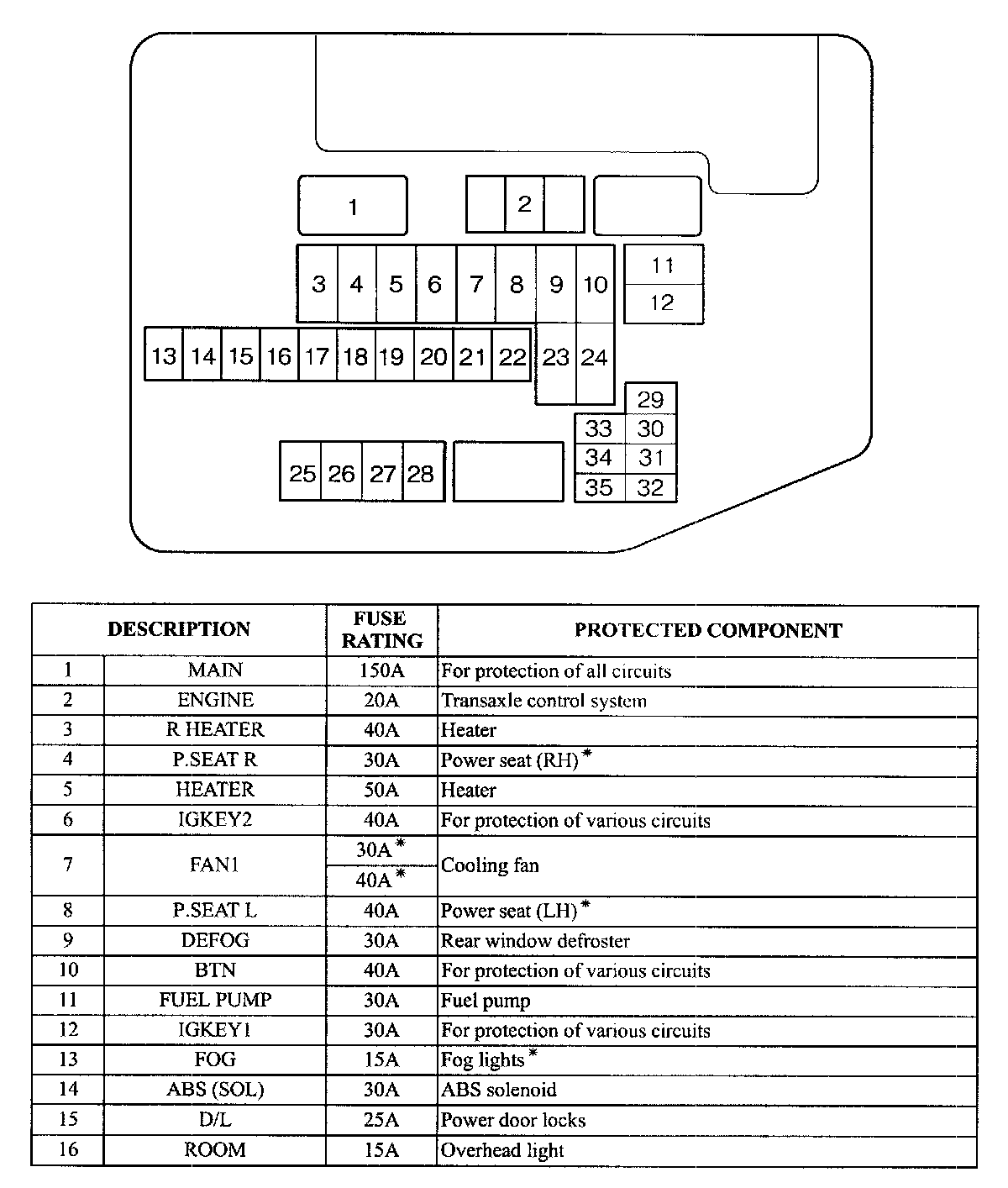

Engine Compartment (1 of 3):

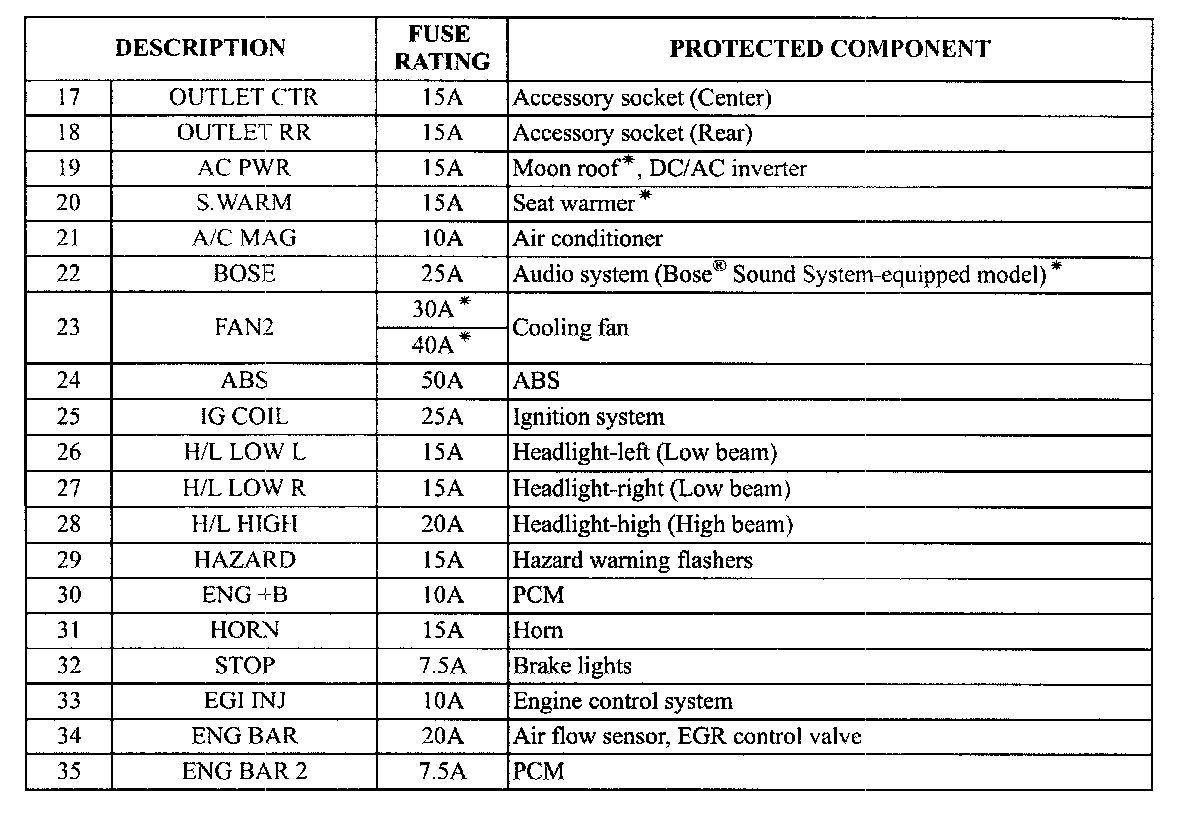

Engine Compartment (2 of 3):






Engine Compartment (3 of 3):

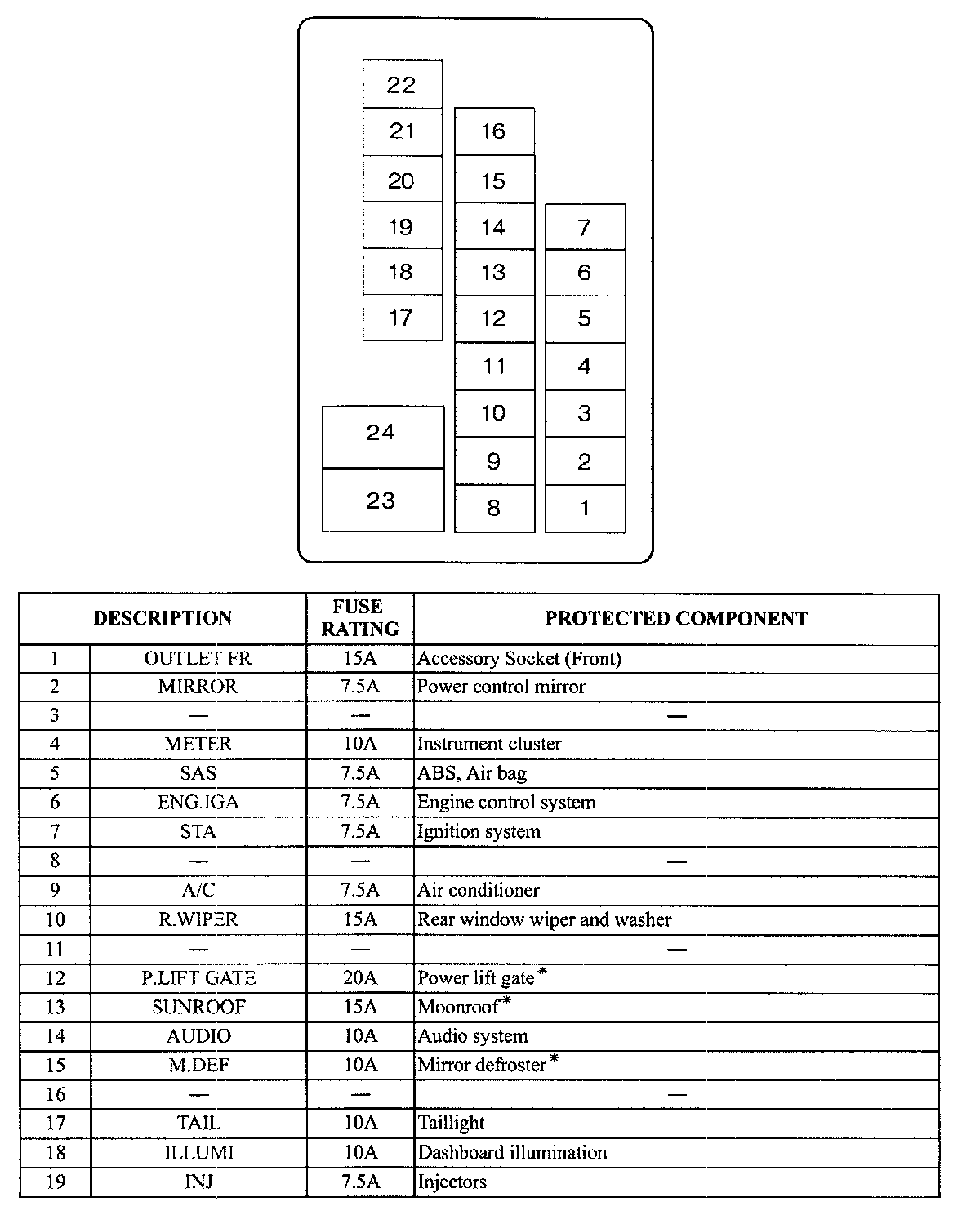

Glove Box (1 of 2):






Glove Box (2 of 2):
