PCV Heater: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE HEATER FITTING REMOVAL/INSTALLATION [MZI-3.5]




1. Disconnect the negative battery cable.

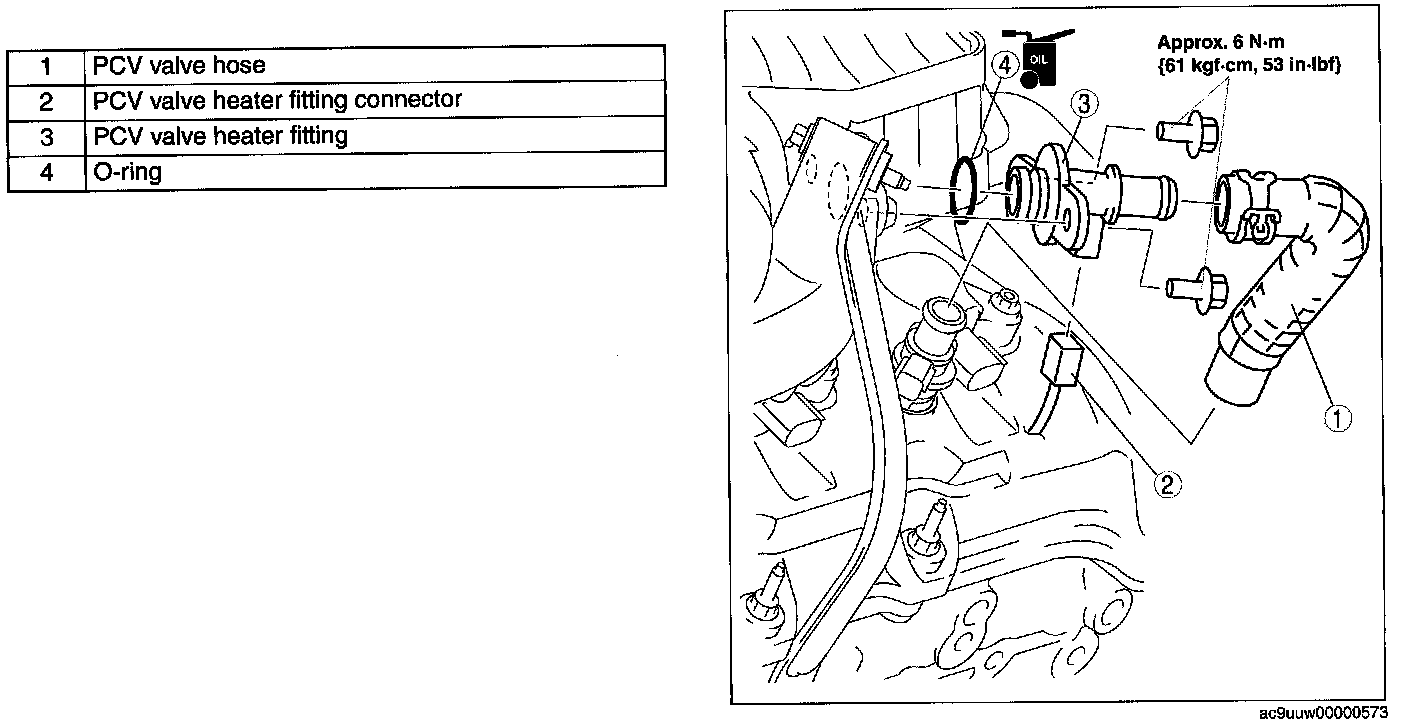

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
