Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.5]

1. Disconnect the negative battery cable.
2. Remove the dashboard under cover (Driver side).

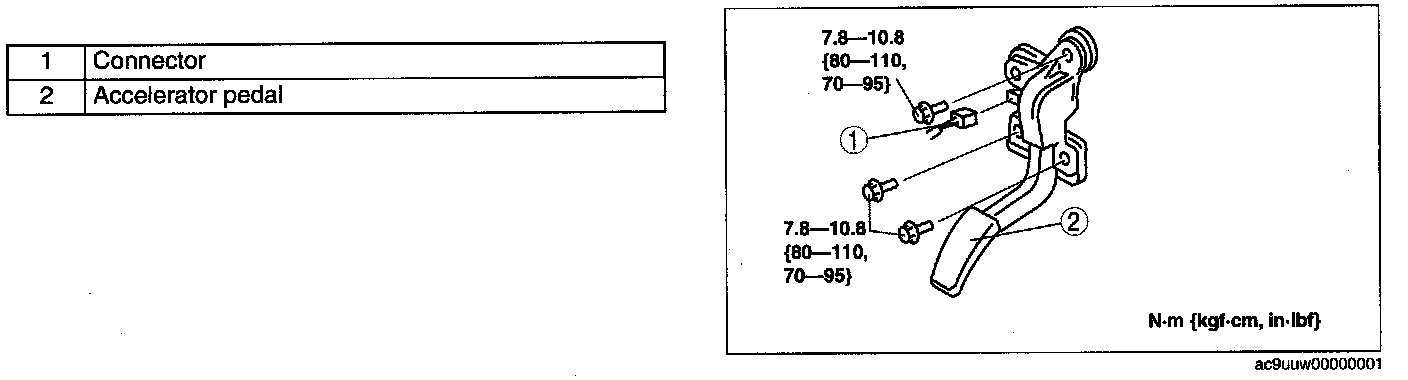

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
