Mazda Truck
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
System Schematic
System Schematic

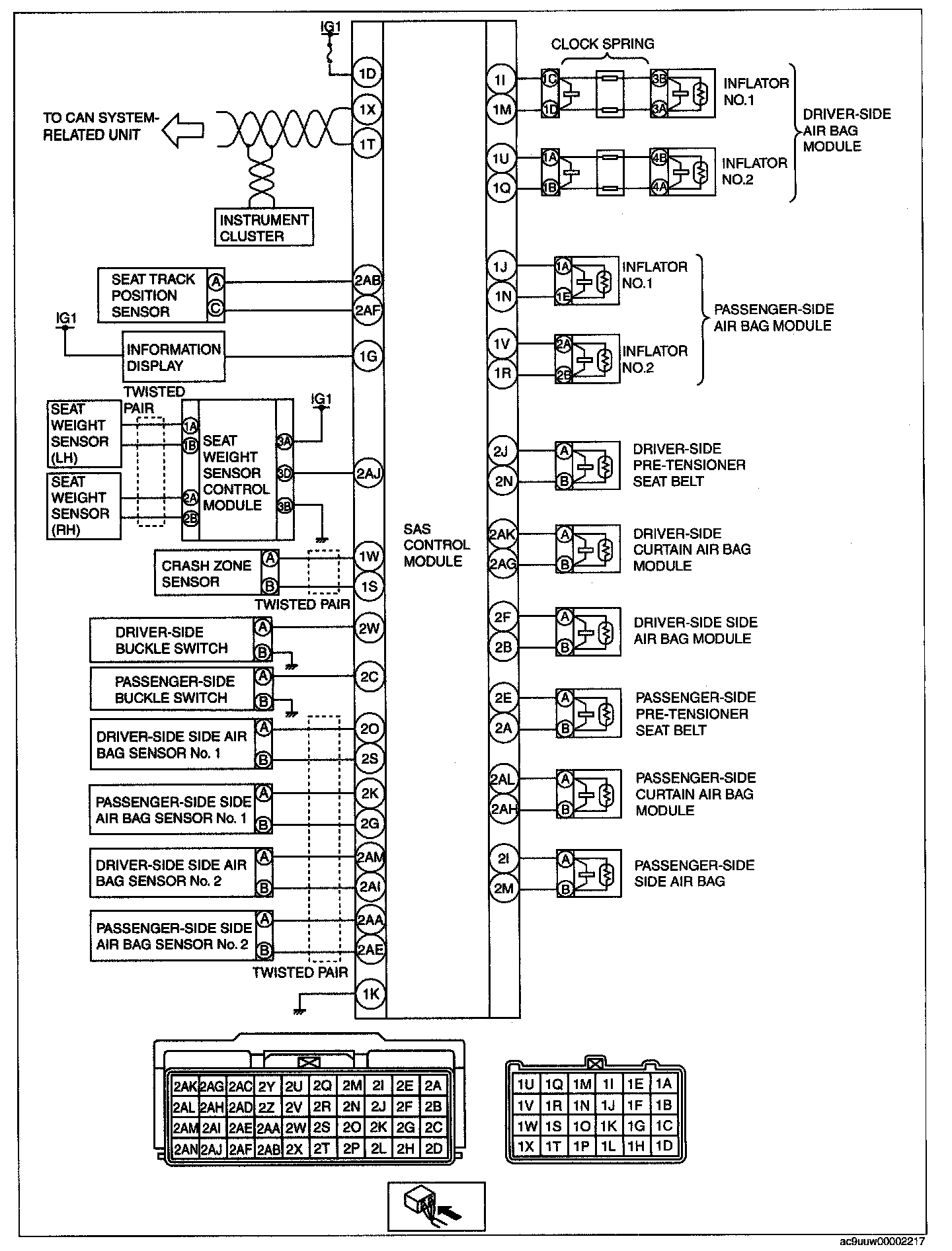

AIR Bag System Wiring Diagram (Symptom Troubleshooting):
