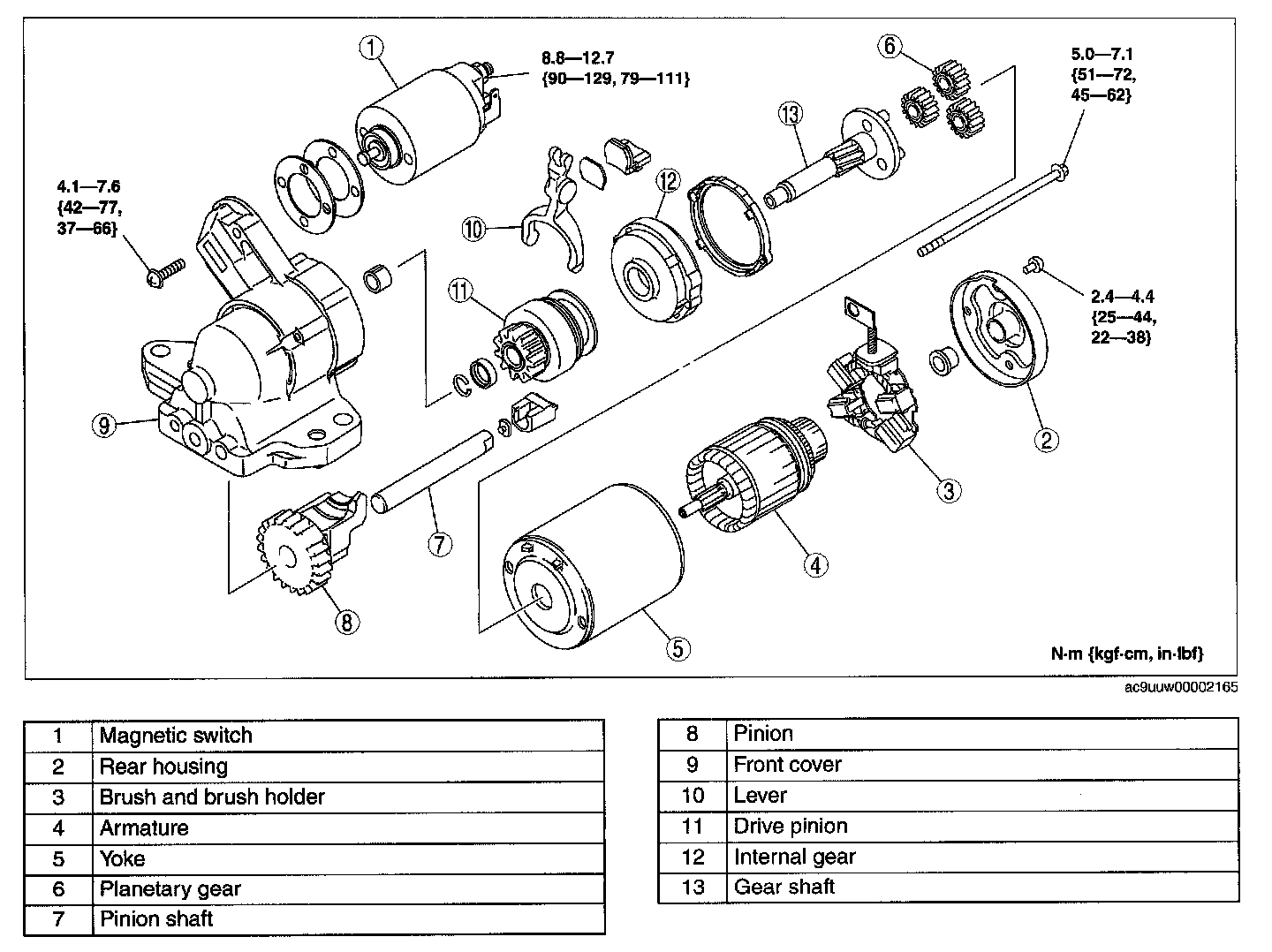

STARTER DISASSEMBLY/ASSEMBLY [MZI-3.5]
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
