Slow Cut Solenoid Valve

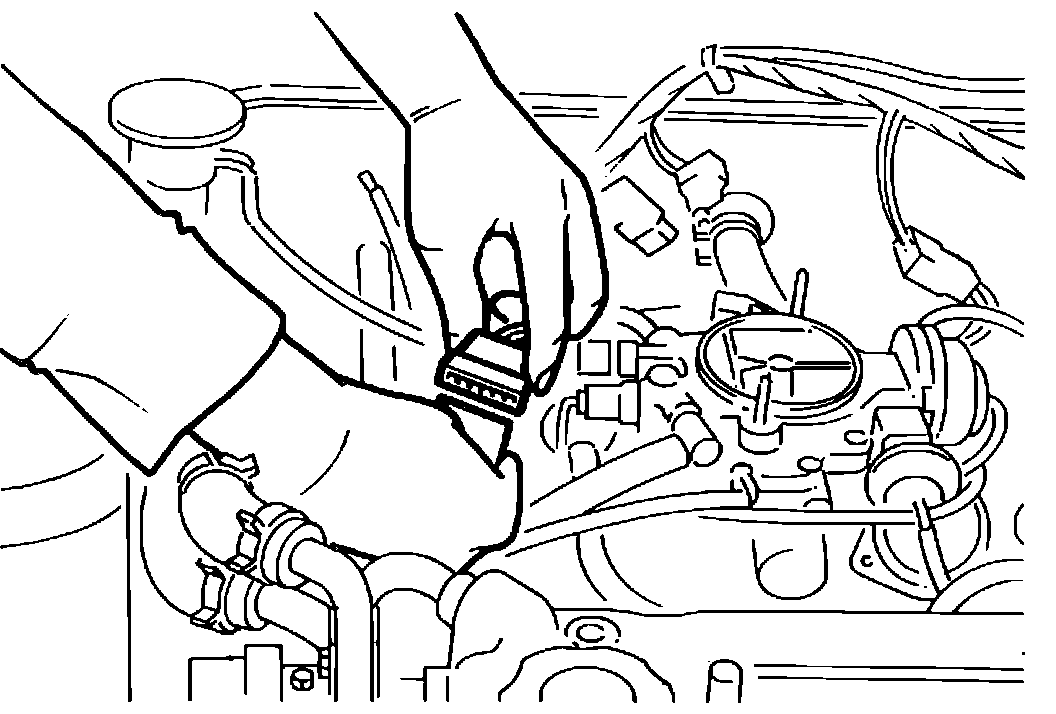

Fig. 11 Disconnecting Slow Cut Solenoid Valve Connector:

1. Start and operate engine idle speed.
2. Disconnect electrical connector from slow fuel cut solenoid valve Fig. 11.
3. If engine stops when disconnecting electrical connector from valve, valve is operating properly.
4. If not, replace slow fuel cut solenoid valve as required.
