Fuel Injector: Service and Repair

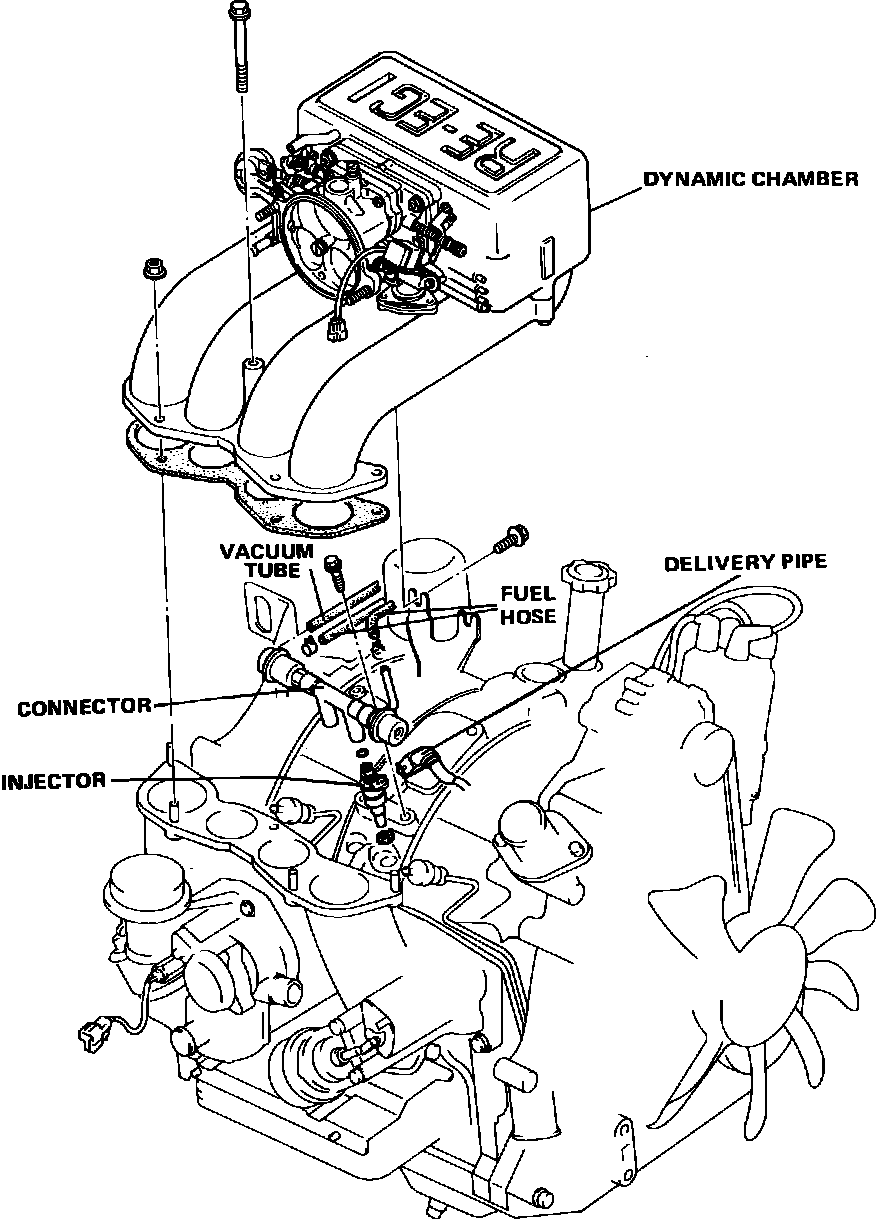

Fig. 96 Replacing injector nozzle.:

1. Remove dynamic chamber as outlined previously.
2. Disconnect fuel hoses from injector connector, Fig. 96.
3. Disconnect vacuum sensing tube, then remove injector connector.
4. Disconnect delivery pipe from nozzle.
5. Remove injector nozzle.
6. Reverse procedure to install.
