Clutch - Release Collar, Lever & Fork Modifications

Category Applicable Model/s Subject Bulletin No.
6 1985 626 CLUTCH RELEASE COLLAR, LEVER & FORK Issued 001/85
(Except 626 DE)
Revised 4/18/85

CLUTCH RELEASE COLLAR, LEVER & FORK:

DESCRIPTION

To further improve the reliability of the clutch release collar, the following modifications have been made.

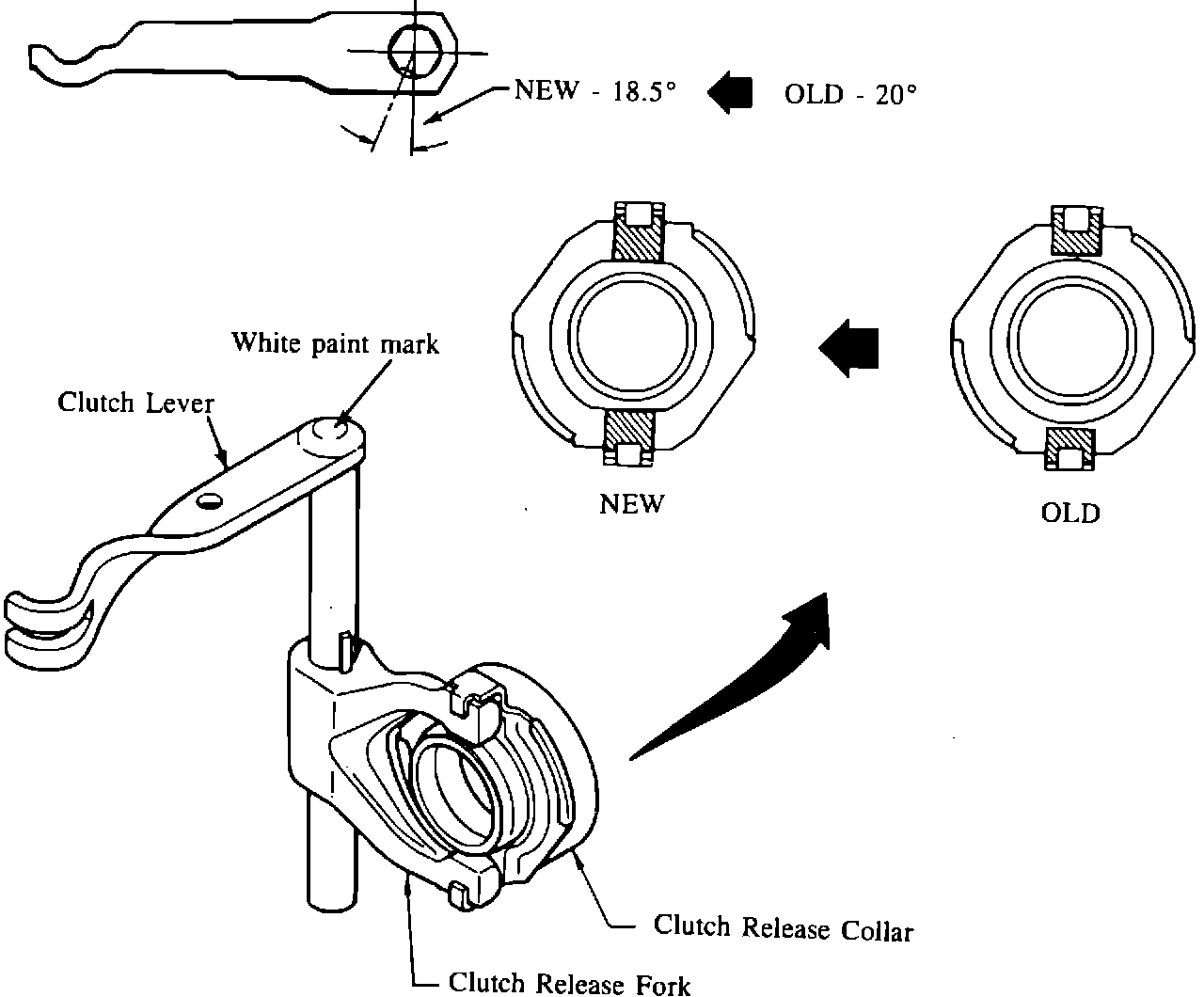

1. The configuration of the clutch release collar and fork have been changed as shown.

2. The location of the key groove on the clutch lever has been changed. A white paint mark has been placed on the new clutch lever to distinguish it from the old.

NOTE:
The parts are not separately interchangeable, but all three parts can be interchanged as a set.
VIN OF PRODUCTION CHANGE

626 Sedan: JM1GC221 F1723652 December, 1984
Hatchback: JM1GC241 F1705836 December, 1984
Coupe: JM1GC311 F1712868 December, 1984


PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

FE62 16 510 H606 16 510A Clutch Release Collar NEW + P --> OLD

FE62 16 521 H606 16 521B Clutch Release Fork NEW + P --> OLD

H606 16 530D H606 16 530C Clutch Lever NEW + P --> OLD
