Door Switch Protector - Dimension Revised

Category 14
Applicable Model/s 323, B2000
Subject

DOOR SWITCH PROTECTOR
Bulletin No. 028/86
Issued 4/29/86
Revised

DOOR SWITCH PROTECTOR:

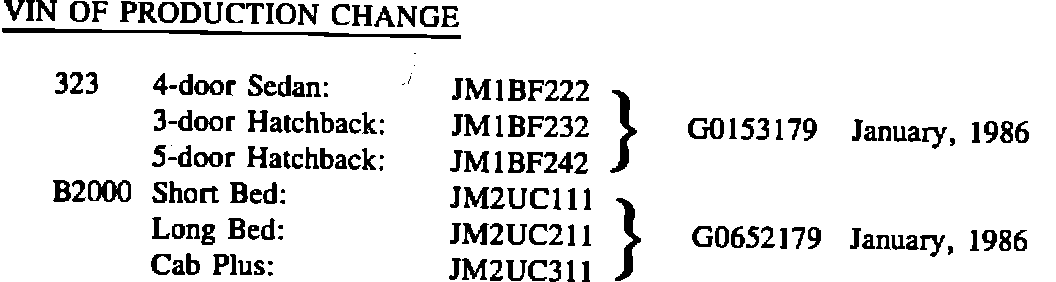

VIN OF PRODUCTION CHANGE:

DESCRIPTION

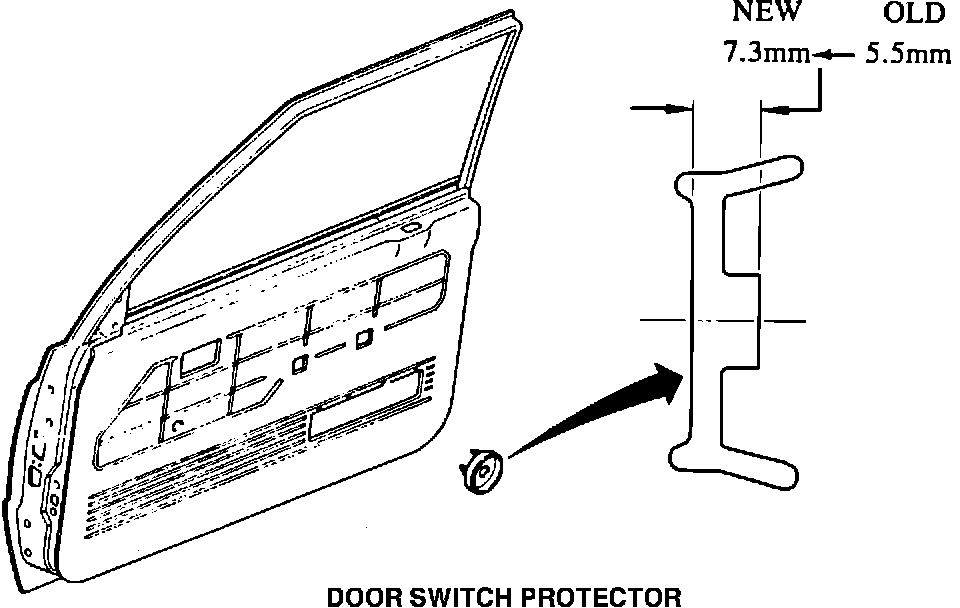

The dimension of the door switch protector has been extended as shown in the illustration for more secure operation of the switch.
PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

B092 58 871A B092 58 871 Door Switch Protector NEW --> OLD
