Electrical Diagrams

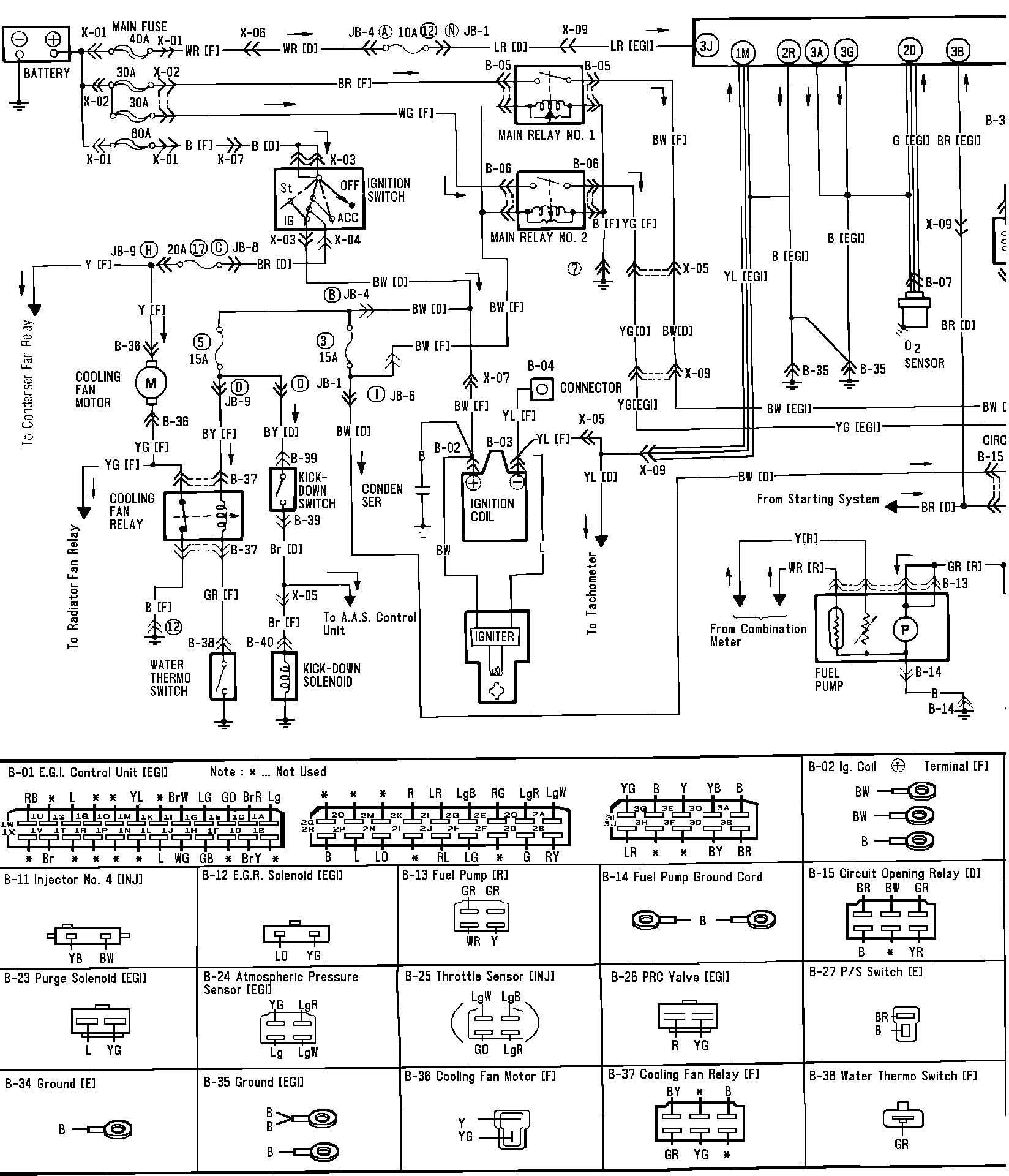

g|%ʼ|%Cooling Fan, Fuel Injection, Fuel Injection Control & Ignition Systems Wiring Circuit. Less Turbocharger:
